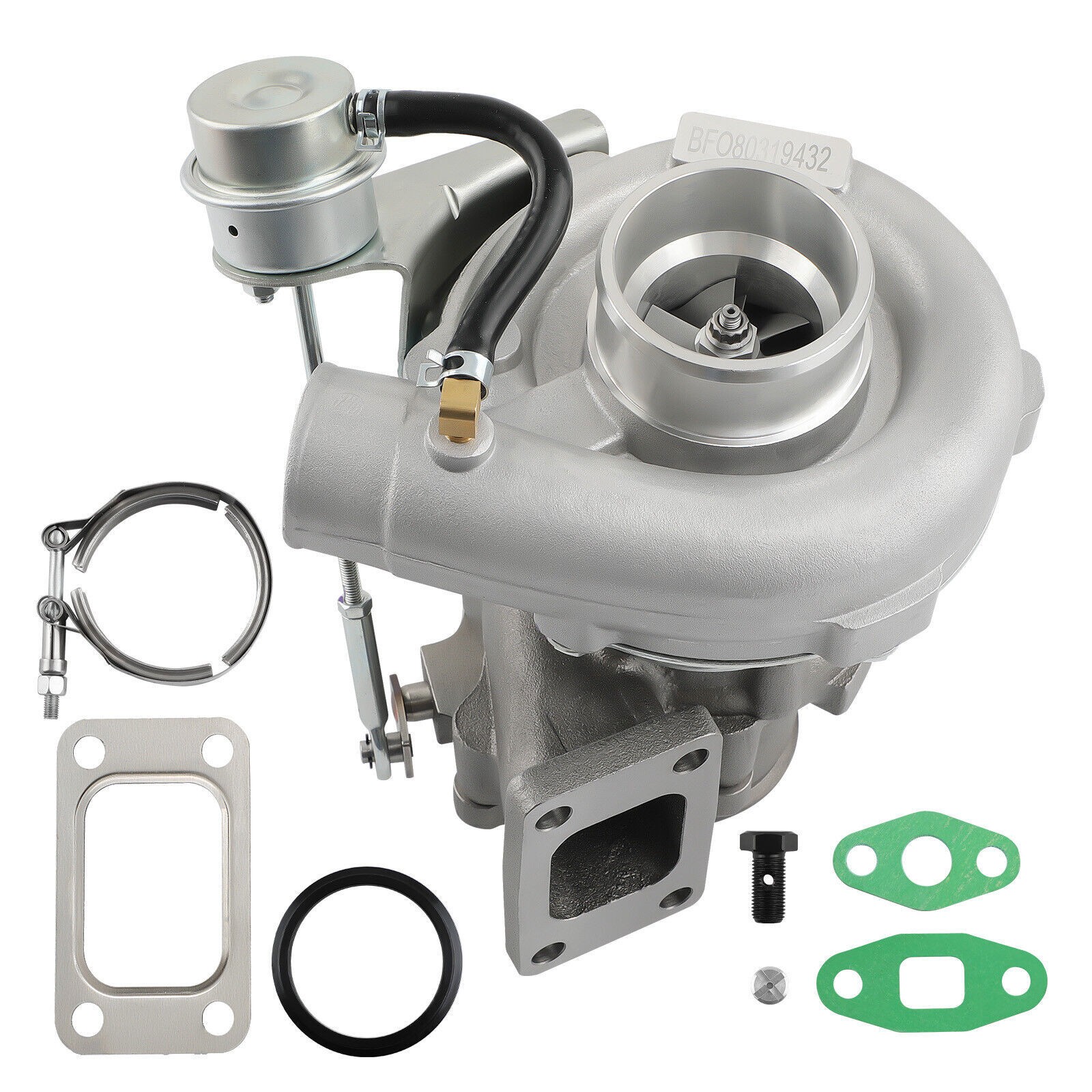

T3 T04E V-BAND Turbocharger Turbo .63 A/R 74.2 Trim Internal Wastegate 420+ HP
Application :
Perfect for all 4 or 6 CYL, 1.5L to 2.5L engines
Horse Power: Capable of Boosting Horse Power up to 420HP
*Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.
Specification :
Exhaust Inlet Flange:T3 4 bolt Flange
Exhaust Outlet Flange:V-Band Flange (ID/OD: 2.5\"/3.1\")
Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: 44.7mm (length) /85.8mm (width)
Compressor Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm
Oil Inlet:M12*1.25 & 2*M8*1.25
Oil Outlet:2*M8*1.25
Bearing:Journal Bearing
Cooling Type:Oil Bearings:270 Degrees
Hosepower:Up to 420 HP
Turbo Type:Individual
Condition:100% Brand New
Accessories:You will get exactly as shown as picture above
Package Size:30x 28x 24 cm
Package Quality Material, Cast Housing with Durable Steel
-Boost Engine Horsepower Significantly
-Increase Engine Power and Torque Outpout;
-Maintain Combustion Chamber Pressure and Fuel/Air Load
-Contructed with High Quality Material
-Built for Durability and Strength
OUR ADVANTAGE
1. 100% BALANCING TEST, This Turbocharger you will receive has been balanced using the VSR machine technology.
Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2. All of the materials we use are the best materials,and we believe that only the best materials will guarantee the life of the turbo.
Turbine Wheel: the special K418 alloy to achieve stability under high temperatures up to 900 degrees Celsius, and never use K13 Inconel alloy.
Turbine housing : Ductile iron QT450-10 can withstand temperatures up to 700 degrees Celsius
Aluminum blades : Precision machining forging. The lightweight design enables reduced noise and increased response without compromising comfort or longevity
*Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
2 YEARS WARRANTY
Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
Note:
* Replace, repair or reconnect air cleaner element per manufacturer\'s manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Note: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)
Product Specific
Thrust bearing270 degreeCooling TypeOil CooledHorse PowerUp to 420 HPWastegatew/ WastegateBearing TypeJournal BearingTurbine A/R0.63Compressor A/R0.5Oil InletM12*1.25 & 2*M8*1.25Oil Outlet2*M8*1.25Exhaust Inlet FlangeT3 4 bolt Flange
