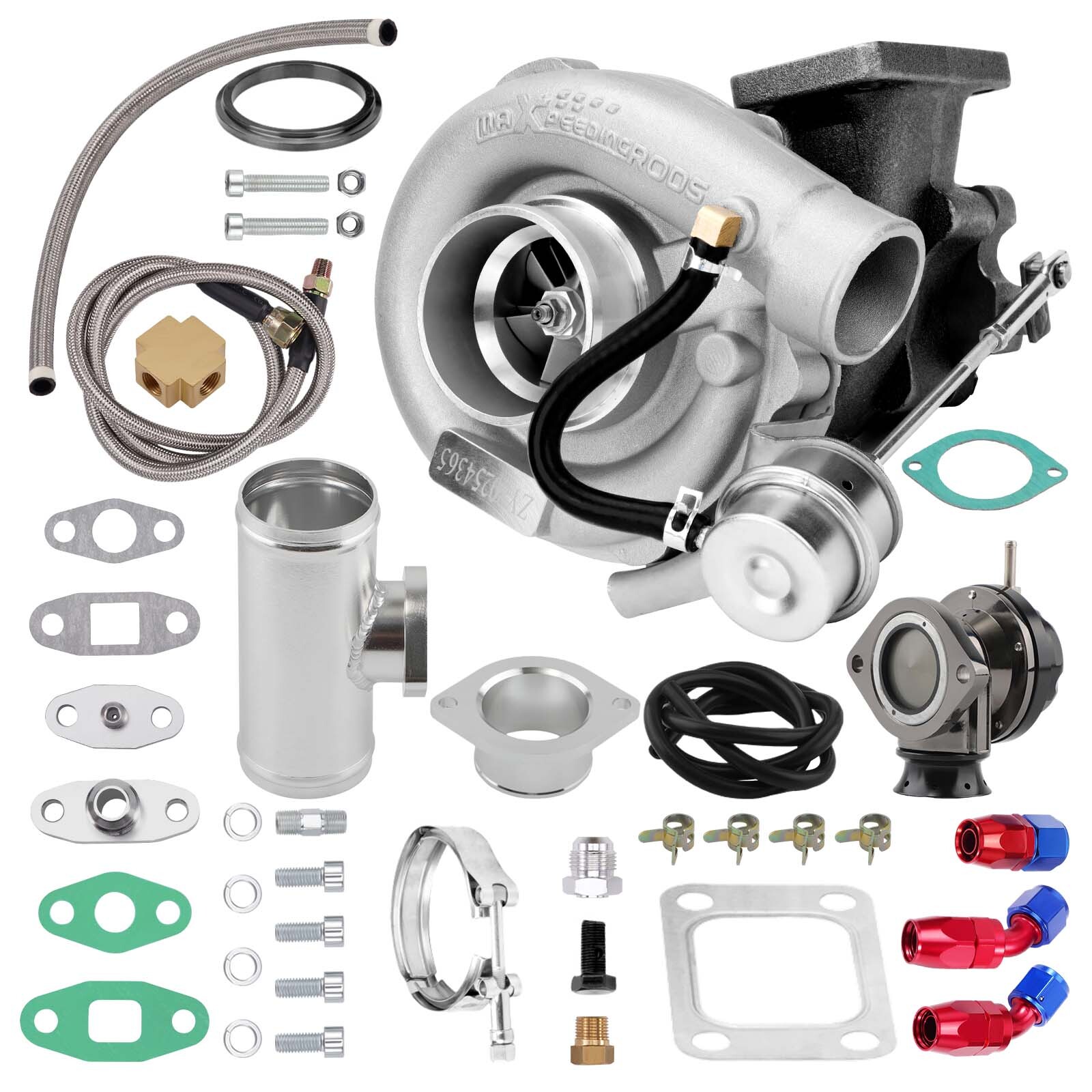

T3 T04E Turbo V-Band 400+HP Internal Wastegate + Oil Return + Feed Line + BOV

• Most

  Competitive Price

• Manufacturer

  We know our products

• Easy Return

  Quick, Simple

[ Description ]

All modifications must be installed by licensed mechanics and in compliance with your local modification Turbocharger

Application:
Perfect for all 4 or 6 CYL, 1.5L-2.5L Engines
Exhaust (Turbo Manifold) Flange:T3 4 bolt Flange Patterns
ExhaustOutlet Flange:V-Band Flange
Cooling Type:Oil Cooled
Wastegate:w/ Wastegate
Horse Power:Boost Horse Power up to 420HP

Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: 44.7mm (length) / 85.8mm (width)
Compressor Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm

Oil Inlet:M12*1.25 & 2*M8*1.25
Oil Outlet:2*M8*1.25
Bearing:Journal Bearing
Cooling Type:Oil Cooled
Thrust Bearings:270 Degrees
Horsepower:Up to 420 HP

Aluminum Blow Off Valve

Blow Off Valve
Holds Up to 30PSI Boost Pressure
Easy Assembly,Aluminum Flange, CNC Machined Billet Aluminum Body
Dual Spring System Promoted Response & Allows for High Boost Pressures
Hard-Anodized Valve for Increased Air Flow
Powder-Coated Anodized and Polished Finish
2 Bolts Mounting Design

Flange Pipe Adapter

2.50" (63mm) Pipe Size
Fits Type-S or Type-RS Dump Pipe Flange
Oval / 2 Bolt Flange Design type

Oil Line

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
​* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
