Product Type: Hand Primer Pump |
Replaces: 46-3663 463663 ESP-12 200-0041-00-0 200-0042-00-0 ESP12 |
- Fitting Type: 16 mm |
- Volts: 12 |
- Source: Aftermarket
Show navigation Hide navigation
- Home
- View All Listings
- About Us
- Policies
- FAQ\'s
- response
- Contact Us

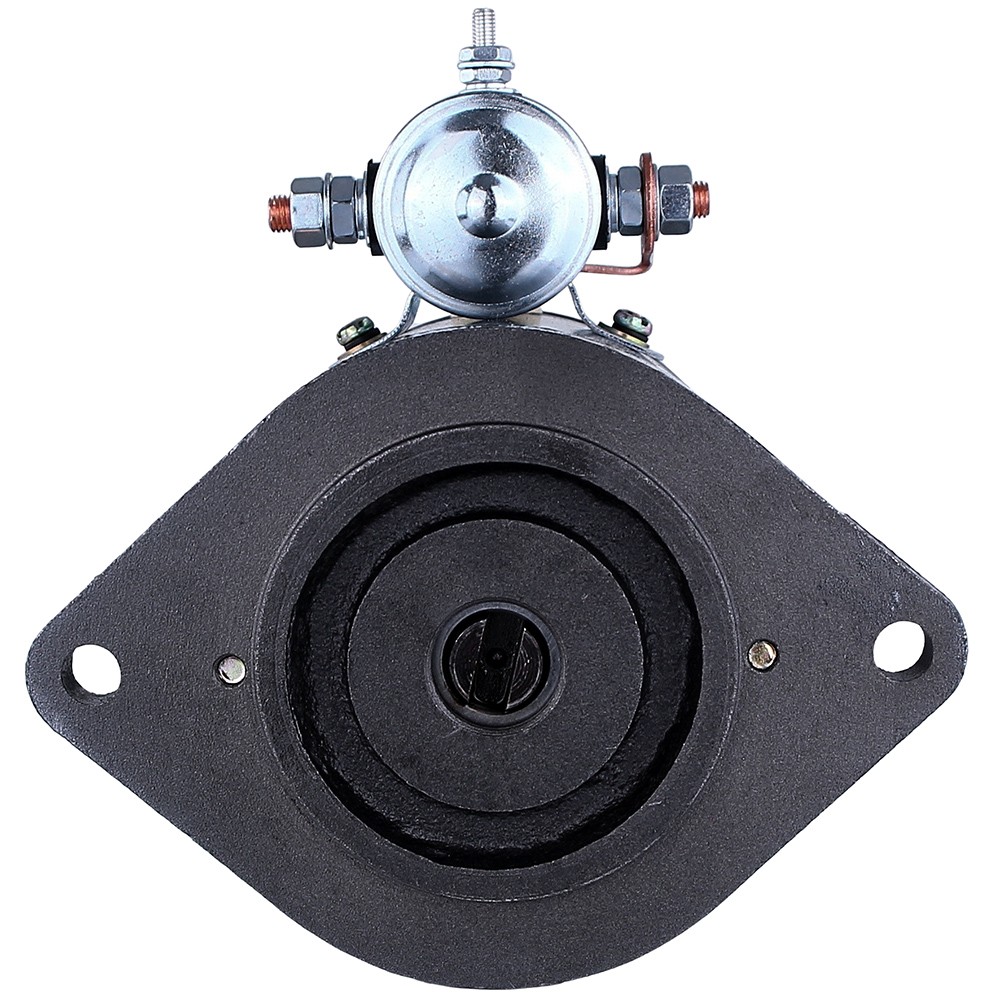

12V Primer Pump Motor Hale Fire Truck Prestolite 46-3663 MCL6201
HALE FIRE TRUCK PRIMER PUMPS:
• Hale Primer Pump Systems (2000-2005)
• Hale Primer Pump Systems (1991-2000)
• Hale Fire Equipment Pumper ApplicationsCOMPATIBLE PRESTOLITE MOTOR MODELS:
• MCL6201 / MCL6201S Series
• MCL6509 / MCL6509S Series
• MUE6315 / MUE6215S SeriesMOTOR SPECIFICATIONS:
• 12V DC, 2kW / 2.68HP, Clockwise Rotation
• Double Ball Bearing Construction
• Recessed Slotted Shaft (6.2mm Slot)
• 5/16-18 Stud Terminals
• Steel Switch
• Raised Ring Diameter on DE: 3.25\"NOTE: This motor fits Hale fire truck primer pump systems. Verify OEM part number before ordering.
FITS / Replacement Part Numbers:
OEM PART NUMBERS:
• Prestolite: 46-3663 / 463663
• Prestolite: MCL6201 / MCL-6201
• Prestolite: MCL6201S / MCL-6201S
• Prestolite: MUE6315
• Prestolite: MUE6215S
• Prestolite: MCL6509 / MCL-6509
• Prestolite: MCL6509S / MCL-6509S
• Hale: 200-0041-00-0 / 2000041000
• Hale: 200-0042-00-0 / 2000042000
• Hale: 200-0042-00-0B / 2000042000B
• Hale: 200-0094-00-0 / 2000094000
• Hale: 101-1580-00-0 / 1011580000
• Hale: ESP-12 / ESP12
• Hale: S204R3441SPECIFICATIONS:
• Voltage: 12V DC
• Power: 2kW / 2.68HP
• Rotation: CW (Clockwise)
• Field Housing OD: 113mm / 4.449in
• Overall Length: 195mm / 7.677in
• Shaft OD: 15.8mm / 0.622in
• Shaft Type: 6.2mm Recessed Slot
• Terminal 1: 5/16-18 Stud
• Terminal 2: 5/16-18 Stud
• Bearing: Double Ball Bearing
• DE Ring Diameter: 3.25\"
• Switch: Steel
• Weight: 17.64 lbs / 8.02 kg
• Condition: NewAPPLICATION:
• Hale Fire Truck Primer Pumps (1991-2005)
• Hale Fire Equipment Pumper Systems
Product Notice:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
