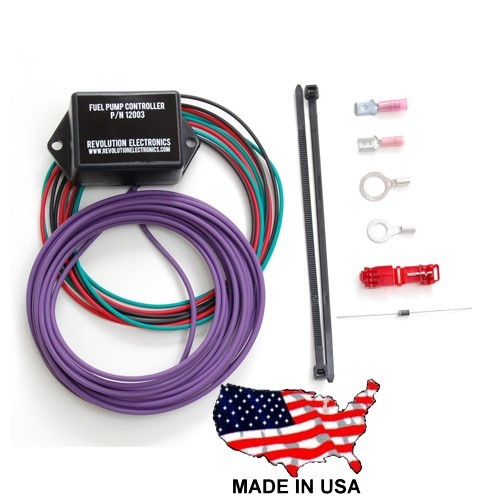

3 Second On Primer Fuel Pump Relay Safety Switch 12v Electric On/Off Controller
Revolution Electronics
12v Electric Fuel Pump Relay Controller
Description: This universal electric fuel pump controller is designed for cars and trucks being upgraded from a mechanical fuel pump to an electric inline or in-tank fuel pump. The Fuel Pump Controller is a “must have” for any electric fuel pump equipped muscle car. It monitors the tach signal to limit when the fuel pump can operate. When the key is first turned on, the fuel pump is allowed to operate for three seconds, priming the fuel system. After these first three seconds, the pump is only allowed to run when the engine is running; if the engine stops, so does the fuel pump. No plumbing into the oil lines or adding an extra priming button under the dash.
Features:
- Pump only has power if there is a tach signal from the ignition
- Works with all tach signals
- Inductive (stock)
- Square-wave (aftermarket) tach signals
- Primes the pump for three seconds at initial key-on
- For 12 volt vehicles with electric fuel pump
- 15 feet of 16 gauge wire to energize the fuel pump
- Internal 7 amp circuit breaker (self resetting type)
- Higher amperage pumps can be controlled by adding an external relay. (NOT Included)
- Can be mounted in any orientation
- Fully potted (water resistant)
- Allows for installation anywhere on the vehicle
- One year manufacture warranty
- Made in the USA
Specifications:
- Condition: NEW
- Controller Dimensions: 1.5\" x 2\" x 1\"
- Mounting Holes: 2.5\" center on center
Applications:
- Universal - All Vehicles with a 12V Electronic Fuel Pump
Part# - REV-12003
