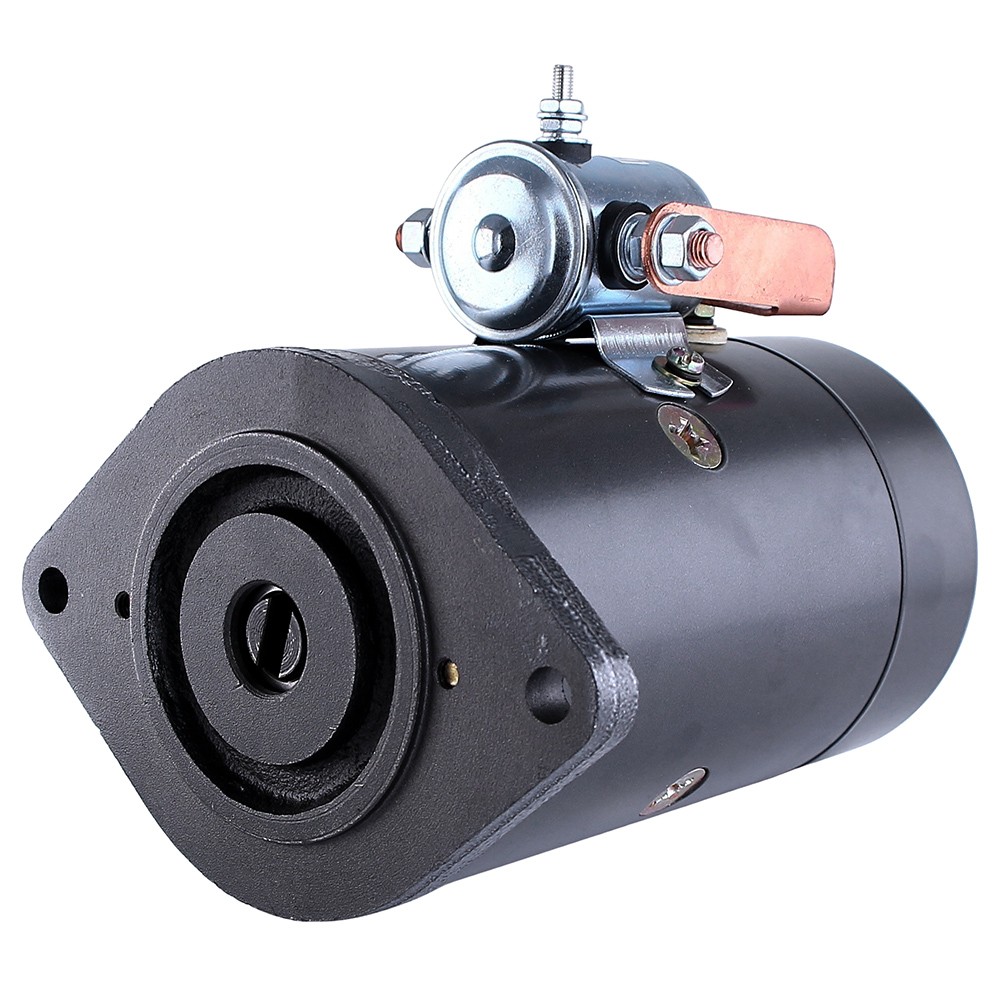

12V Primer Pump Motor Hale Fire Equipment 200-0041-00-0 ESP-12
Replaces Part Numbers & Specifications
OEM PART NUMBERS:
• Prestolite: 46-3663 / 463663
• Prestolite: MCL6201 / MCL-6201
• Prestolite: MCL6201S / MCL-6201S
• Prestolite: MUE6315
• Prestolite: MUE6215S
• Prestolite: MCL6509 / MCL-6509
• Prestolite: MCL6509S / MCL-6509S
• Hale: 200-0041-00-0 / 2000041000
• Hale: 200-0042-00-0 / 2000042000
• Hale: 200-0042-00-0B / 2000042000B
• Hale: 200-0094-00-0 / 2000094000
• Hale: 101-1580-00-0 / 1011580000
• Hale: ESP-12 / ESP12
• Hale: S204R3441SPECIFICATIONS:
• Voltage: 12V DC
• Power: 2kW / 2.68HP
• Rotation: CW (Clockwise)
• Field Housing OD: 113mm / 4.449in
• Overall Length: 195mm / 7.677in
• Shaft OD: 15.8mm / 0.622in
• Shaft Type: 6.2mm Recessed Slot
• Terminal 1: 5/16-18 Stud
• Terminal 2: 5/16-18 Stud
• Bearing: Double Ball Bearing
• DE Ring Diameter: 3.25\"
• Switch: Steel
• Weight: 17.64 lbs / 8.02 kg
• Condition: NewAPPLICATION:
• Hale Fire Truck Primer Pumps (1991-2005)
• Hale Fire Equipment Pumper Systems
Product Notice
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
