XDP XD243 One-Hole Fuel Tank Sump with Fuel Return
Brand New XDP Fuel Tank Sump – Part # XD243
Upgrade your diesel fuel system with the XDP XD243 One-Hole Fuel Tank Sump with Built-In Fuel Return. This sump provides a clean and efficient way to add a fuel supply and return connection to your fuel tank, making it ideal for aftermarket lift pumps, high-performance diesel fuel systems, and custom fuel-system installations.
Product Features
- Brand: XDP
- Part Number: XD243
- Condition: Brand New
- Type: Fuel Tank Sump
- Fuel Type: Diesel
- Material: Aircraft-Grade T6 Billet Aluminum
- One-hole design
- Built-in fuel return
- 1/2" NPT threaded ports
- Includes barbed fittings for 1/2" fuel hose
- Machined O-ring groove for a reliable seal
- Internal holding ring for easier installation
- Return standpipe helps separate return fuel from the fuel supply
- Designed for aftermarket and custom diesel fuel systems
One-Hole Design
The XD243 simplifies fuel-system installation by combining the fuel supply and return connections into a single fuel tank sump.
Only one 3-inch hole is required in the fuel tank. The included internal holding ring allows the sump to be secured without requiring the fuel tank to be removed in many applications.
Built-In Fuel Return
The integrated return port allows excess fuel to be routed back into the tank through the sump. The included return standpipe helps keep returning fuel separated from the primary fuel feed.

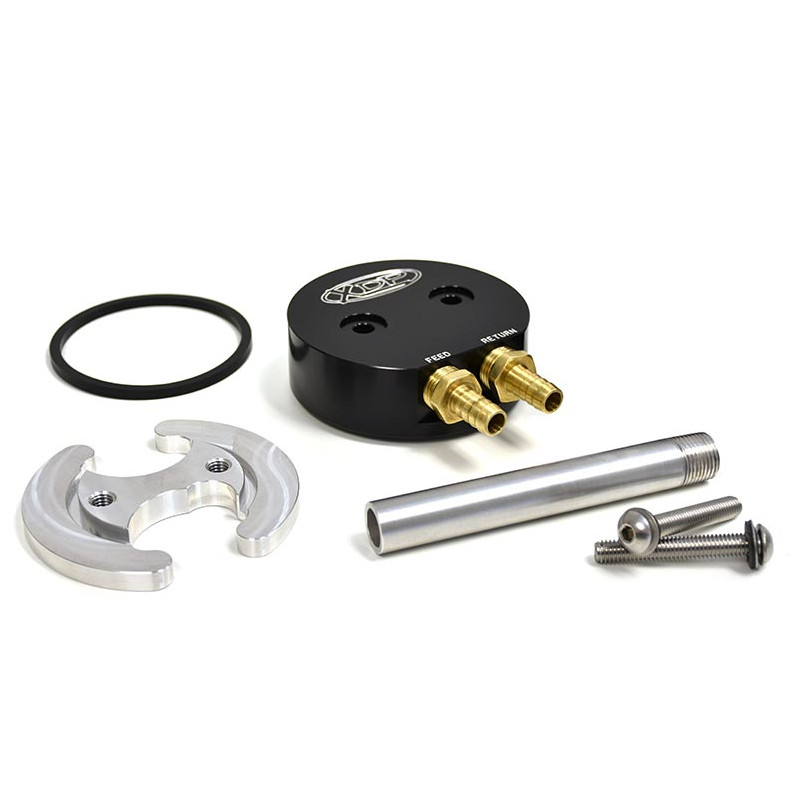

What's Included
- 1 × XDP XD243 Fuel Tank Sump
- 1 × Internal Holding Ring
- 1 × O-Ring Gasket
- 2 × 1/2" NPT Barbed Fuel Line Fittings
- 1 × Return Standpipe
- 2 × Stainless Steel Mounting Bolts
- 2 × Sealing Washers
Hole saw is NOT included.
Installation Requirements
Installation requires cutting a 3-inch hole in the fuel tank. The fuel
