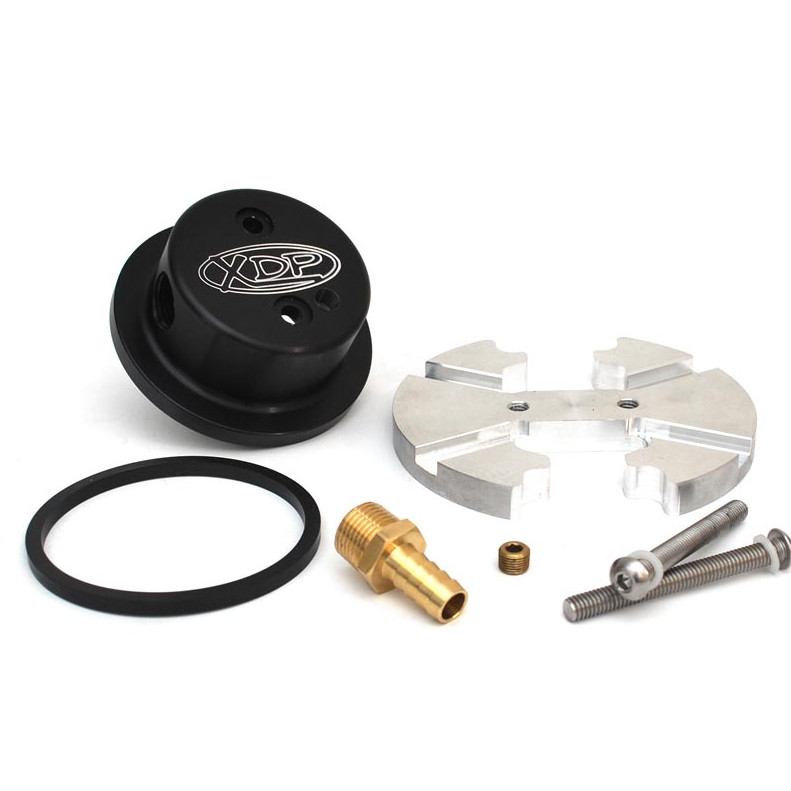

The XD182 provides a fuel outlet at the bottom of the tank, making it suitable for connecting to popular aftermarket fuel systems such as AirDog and FASS pumps. The inner ring is designed to fit inside the bottom of the fuel tank, allowing installation from underneath without requiring the tank to be dropped.
A machined groove for the O-ring gasket helps create a leak-resistant seal, while the two-bolt design eliminates the need to drill additional bolt holes. The product includes a 1/2\" NPT barbed fitting for 1/2\" hose.
KEY FEATURES
- One-hole fuel tank sump design
- Built-in drain plug
- No tank drop required for installation
- Large opening for unrestricted fuel flow
- Aircraft-grade T6 billet aluminum construction
- 1/2\" NPT fitting
- Designed for 1/2\" hose
- Two-bolt installation design
- O-ring sealing groove
- Designed for aftermarket fuel systems
- 2-year / unlimited-mileage warranty
FITMENT
Universal - Most Diesel Fuel Tanks
Cutting Required
XDP specifically lists this product as Universal, so I would not add Ford, Ram, Chevy, or GMC vehicle-specific fitment to the listing.
INSTALLATION INFORMATION
The XD182 requires a 3-inch hole saw for installation. The fuel tank does not need to be dropped, according to XDP. The product can also be installed on a metal fuel tank, provided the tank is at least 6 mm thick to create a proper seal.
Hole Saw Required: 3\"
Fitting Thread: 1/2\" NPT
Fuel Type: Diesel
Material: Aircraft Grade T6 Billet Aluminum
IMPORTANT
XDP currently states that this product cannot be shipped to California.
Part Number: XD182
GTIN: 865978000052
Cross Reference: XD131-A
Warranty: 2 Year / Unlimited Mileage
