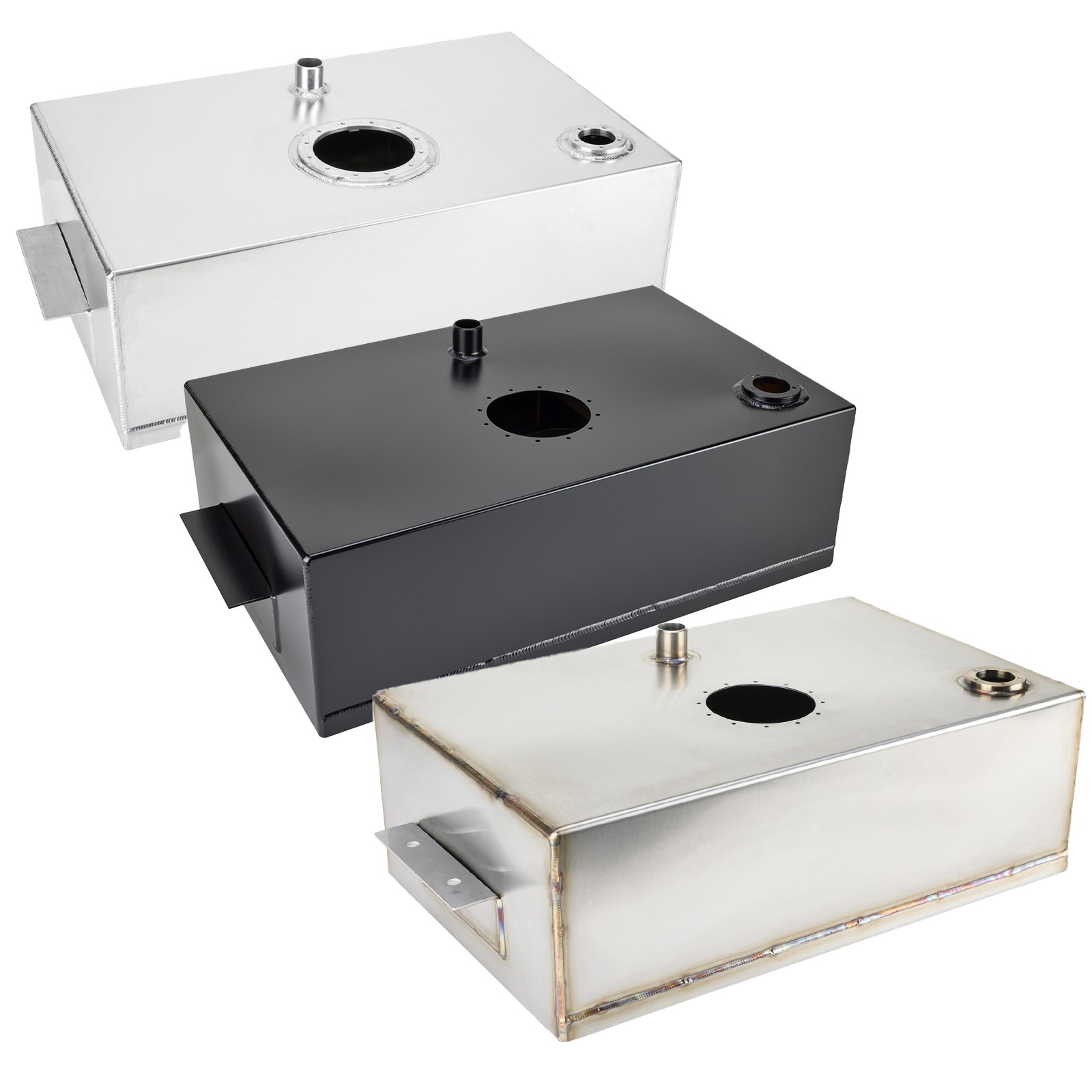

Relocates fuel tank from passenger compartment to under pickup bed, Provides more cabin room for custom seating, audio equipment, and more, Fully TIG welded .090” aluminum construction, Designed to mount in-tank EFI pumps with the common 12-bolt, 5.375” bolt circle, Features industry standard five-bolt fuel level sender mounting pattern TwoLane™ 63-72 Chevy C10 EFI Under Bed Fuel Tank, Aluminum Sku # 910761E-ALUM Mfr. Part # 910761E-ALUM Condition New Brand Speedway Motors Sold Each Details
- Relocates fuel tank from passenger compartment to under pickup bed
- Provides more cabin room for custom seating, audio equipment, and more
- Fully TIG welded aluminum or stainless construction in raw or black powdercoat
- designed to mount in-tank EFI pumps with the common 12-bolt, 5.375” bolt circle
- Features industry standard five-bolt fuel level sender mounting pattern
- Rear mounting configuration provides better weight balance and enhances traction
- Much safer fuel storage, as fuel is no longer right behind the driver and passengers
- Eliminates fuel smell and sloshing sounds in the passenger compartment
- Fits both two-wheel drive C10 and four-wheel drive K10 truck models as well as C20 and C30 trucks
- 20 gallon fuel capacity
- Not a universal fuel tank; dimensions, and mounting flanges specific to 63-72 Chevy truck frames
Make Your 1963-1972 Chevy Truck Safer by Relocating the Fuel Tank
Before they were classics, old Chevy trucks were just workhorses. It was ok for the fuel tank to be behind the seat while hauling hay bales across the farm, and a couple hundred horsepower was more than enough to get the job done. Fast forward to today and 60’s-70’s Chevy trucks are full-fledged classics that are getting the same custom treatment as early Camaros and Chevelles. These custom rebuilds often feature dramatic suspension modifications, custom interiors, and huge power from modern fuel injected engines. And they get driven, often blasting down the freeway in modern traffic with distracted late-model drivers buzzing all around. That crusty old tank behind the seat full of sloshing fuel isn’t looking so good anymore. TwoLane™ EFI Under Bed Fuel Tanks relocate the tank to a safer location and are ready for modern in-tank pumps to fuel EFI powerplants from mild to wild.
Frame Specific Dimensions Ensures a Perfect Fit Under the Bed of Your Pickup
Moving the fuel tank to the rear of your pickup under the truck’s pickup box/bed floor provides several benefits. The most obvious of course is removing the liquid fuel storage from inside the passenger compartment where a ruptured tank, separated fuel line or filler hose in an accident can cover the occupants with gasoline. Moving the fuel tank to the rear not only provides a higher level of safety but places a good bit of weight at the rear of the pickup, which aids in traction. On average you’re looking at roughly 100 pounds of weight with a full truck bed fuel tank. Relocating the fuel tank also provides a bit more cabin storage room, or space for audio gear, road trip tools, and so forth. For 67-72 truck owners we even offer a C10 fuel filler delete
Fabricated, TIG welded aluminum looks trick, but might look out of place on some trucks. With that in mind, these tanks are also available in black anodized and stainless steel. The black tanks are subtle and will blend in with the other finishes under the truck, while the stainless lends a high-end touch to complement the rest of the shiny stuff throughout the truck.
Ready for Modern EFI Power
These days, lots of classic trucks need more from their fuel system than just a tank relocation. In place of those old stock small blocks and utilitarian 6-cylinders are upgraded late model engines with EFI and lots of power. Some even have power adders like turbos or superchargers and they need way more fuel than those ho-hum original engines ever did. These tanks are up to the job with an integrated ring to mount in-tank EFI pumps with the common 12-bolt, 5.375” bolt circle. There are quite a few advantages of an in-tank pump design. That’s why the OE’s have been using them for decades. Particularly critical at high power levels is the cooling effect of the fuel in the tank on the pumps. Additionally, the surrounding fuel helps isolate the sound of the pumps. Spend any time in a truck with a big external pump bolted to the frame and you’ll appreciate the relative silence of in-tank pumps. Internal pumps also serve to clean up the plumbing, minimizing fittings and potential leak sources when compared to external pumps.
The 1-1/2-inch diameter filler neck uses standard filler neck hose and allows you to install your choice of fuel filler cap/door in the floor of your truck’s bed.
These tanks are designed to fit common aftermarket EFI pump modules, but are also available in complete kits featuring trick TwoLane™ EFI In-Tank Fuel Pump Modules in various levels to fuel whatever it under the hood of your truck.
Specs Sold in Quantity Each MFG. Part # 910761E-ALUM Notes The fuel tank includes internal baffling and features a universal pump mounting flange with a 5.375-inch (5 3/8-inch) bolt circle diameter. Fuel Tank Style EFI Conversion Fuel System Type EFI Capacity 19.43 gallons Material Type Aluminum Finish Natural Color Natural Sending Unit Included No Fuel Pump Included No Tank Straps Included No Overall Length 31" Overall Width 17.2" Overall Height 9" Baffled Yes Filler Neck Included Yes Hardware Included No Material Thickness .090 " Fuel Capacity Range 15.00-19.99 Gallons Related Items / Suggested Parts TwoLane™ EFI In-Tank Fuel Pump Retrofit Module, Single 255 LPH TwoLane™ EFI In-Tank Fuel Pump Retrofit Module, Dual 255 LPH TwoLane™ EFI In-Tank Fuel Pump Retrofit Module, Single 450LPH E85 TwoLane™ EFI In-Tank Fuel Pump Retrofit Module, Dual 450LPH E85 TwoLane™ EFI In-Tank Fuel Pump Retrofit Module, Single 450LPH Gas TwoLane™ EFI In-Tank Fuel Pump Retrofit Module, Dual 450LPH Gas TwoLane™ 63-72 Chevy C10 EFI Under Bed Fuel Tank, Stainless Steel TwoLane™ 63-72 Chevy C10 EFI Under Bed Fuel Tank, Black Aluminum ARP 100-9904 Thread Sealer Loctite 487232 271 Red Threadlocker Heavy Duty 6ml Tube Billet Aluminum Fuel Filler Neck w/ Pop-Up Gas Cap & Hose Kit Universal Aftermarket Fuel Tank Gas Gauge Level Sender Unit Tech Support We're here to help before and after your purchase. If you have a question or need assistance with one of our products, please contact us through Messaging and a knowledgeable Speedway Motors team member will be happy to help. About Speedway Motors is America’s Oldest Speed Shop® and has been a trusted source for specialty rodding and racing products and friendly expert advice for more than 74 years. Founded in 1952 by “Speedy” Bill Smith – a racer and street rodder himself – Speedway has grown from a one-man operation to become the world’s largest manufacturer, distributor and retailer of street rod and racing products. Our industry-leading fast delivery is the result of same-day shipping from our state-of-the-art, centrally located 500,000 sq. ft. headquarters. Speedway’s size offers customers unmatched product selection and low pricing, while our excellent technical support and customer service have made us a recognized leader in the rodding and racing industries.
