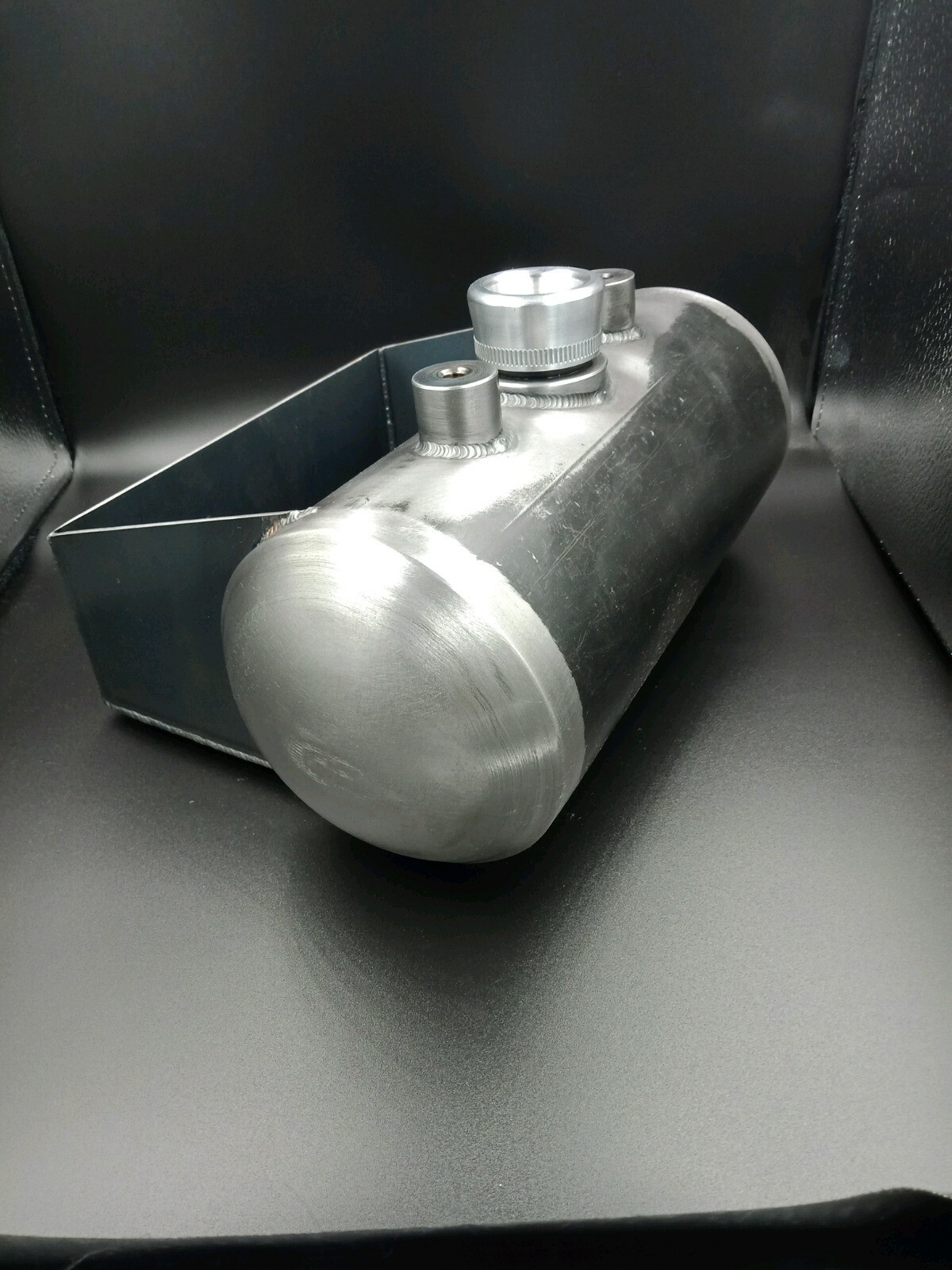

Tinworksinc Softail oil Tank.
MADE IN THE USA .
4-1/2INCH 115MM ROUND ENDS STEEL OIL TANK BATTERY BOX
BATTERY BOX SIZE 8" INCH 210.05MM Wide
3 1/2 INCH 85.6 MM Front To Back.
11-1/2 " LONG.
Mounting Bungs are 4-1/4 107.95MM On Center 5-1/6-18 UNF Thread.
120 wall 3MM Thick tube.
100% Tig Welded Certified Tig Welder.
Pressure Tested/Holds 3 qrts-2.839 Literes of Oil.
1/8 NPT Pipe threads
Aluminium cap comes with O-Ring
Two of the pipe bungs have tubes going to the top of the tank for vent and return
All bungs are cnc made
Comes complete with all mounting hardware two tabs and bolts
Rubber Isolators and two Stainless botton heads for mounting.
These tanks are perfect for any hard tail build or cafe rigid bike you are building.
In Stock and ready to ship!!!
THIS IS NOT CHINA CRAP BUILT RIGHT HERE IN USA!!!!
