Precision Measurement Accuracy: Provides the most accurate method for setting ring and pinion gears by using the same bearing as the carrier for proper centerline alignment., Reliable Setup Design: Unlike other tools, this setup tool does not assume the bearing cap is centered, ensuring precise and repeatable pinion depth measurements., Comprehensive Tool Kit: Includes dial indicator for setting backlash, detailed instructions for proper use, and a durable wooden storage box for protection., Wide Application Range: Compatible with GM 10- and 12-bolt, Ford 8.8\" and 9\", Mopar 8.25\" and 8.75\", and most Dana rear ends below model 60, plus small truck differentials., Professional-Grade Construction: Designed for professional builders and restorers requiring high-precision gear setup tools that Speedway Professional Rear End Ring & Pinion Axle Setup Tool Set Sku # 91082725 Mfr. Part # 91082725 Condition New Brand Speedway Motors Sold Set Details
The most accurate ring and pinion set up tool available. It uses the same bearing the carrier uses to insure proper center line to pinion measurement. Does not assume that the cap is on the center as other tools do.

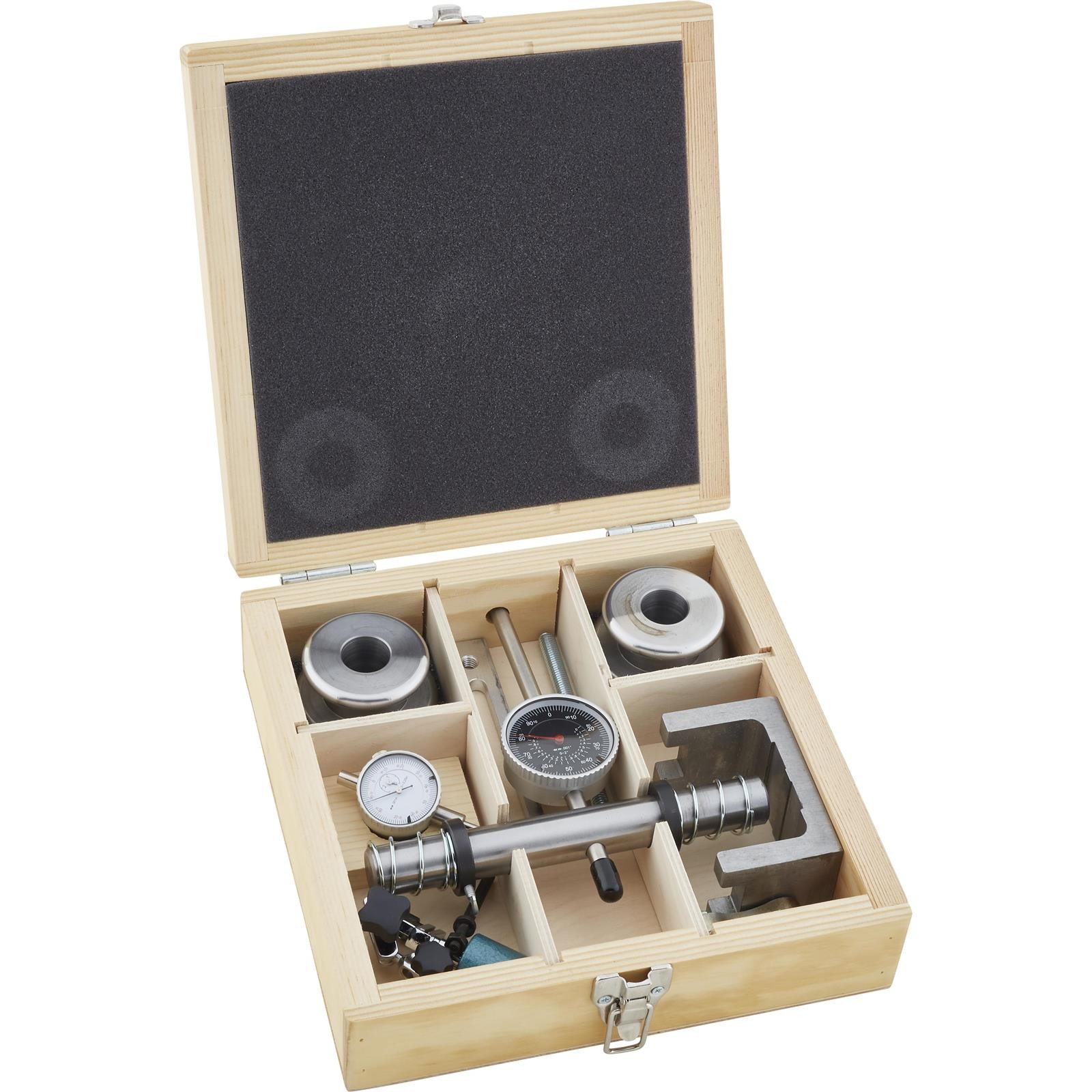

Comes complete with indicator to set back lash, wooden storage box and instructions on proper usage.
- Works with 9\" Ford and GM 10-bolt/12-bolt applications.
Specs MFG. Part # 91082725 Sold in Quantity Set Reviews Best rear gear setup tool Rated by burnsy on August 12, 2026
Summary: This tool is now my go to for rear gear setups. verifying the depth is so important. calibration and setup is pretty easy. remember the depth gauge reads counterclockwise. you have to play around to get the position of the gauge with the brackets they give you. having pinion dummy bearings is advised as damage may occur when removing the pinion bearing to reshim. if you do it right you should only have to remove/install the pinion bearing once to correct your depth. good luck.
Yes, I recommend this product.
A++ Rated by Mike572 on March 27, 2021
Summary: Definitely a quality piece of equipment.
Yes, I recommend this product.
Speedway Professional Rear End Ring & Pinion Axle Setup Tool Rated by Drag racer on January 12, 2021
Summary: The dial gauges are easy to read and adjust and are good quality the mechanisms that holds the gauges in place holds well. Every thing is of high quality. It comes in a nice wood storage box that holds every thing in place. Print the directions from speedway motors site when you look up the tool discription, the direction sheet that comes with it in the box is very scetchy there are also three pictures included that are a big visual help when setting up.If you have experience reading a dial gauge it would help a lot when using this tool.The pictures are taken with the tool set up on an open 9" ford differential. I used this tool to set up a ford 9" removable carrier, Advice! the 1" number comes from the added length of the pinion hub that fits in the carrier bearing in the case,add that number to the dial # to get your reading( 1.029") example.On the removable carrier you can not rest the tool measuring end on the pinnion flat surface because of the support housing you have to set it up on the top of the pinnion hub. This measuring tool works good on eather one and is a great time saver. Instead of trial and error guessing on the shim or shims thickness needed on the pinnion support housing.
Yes, I recommend this product.
I waited way to long to get this Rated by Mark on November 26, 2020
Summary: Very accurate
Works well, only 1 issue. Rated by mikesmiel on April 04, 2020
Summary: As indicated" works on most cases". Dogbone does not work well on aftermarket 9" case. Casting on Strange case is more beefy at rear pinion support and dogbone does not clear it. I'll make one that will fit out of bar stock.
Yes, I recommend this product.
