Rockville W15K6D4 V2 15\" 4000w Car Audio Subwoofer Sub+Vented Sub Box Enclosure:
$242.90

Car Audio & VideoPro AudioMarine AudioLightingKaraokeHome/Portable Audio

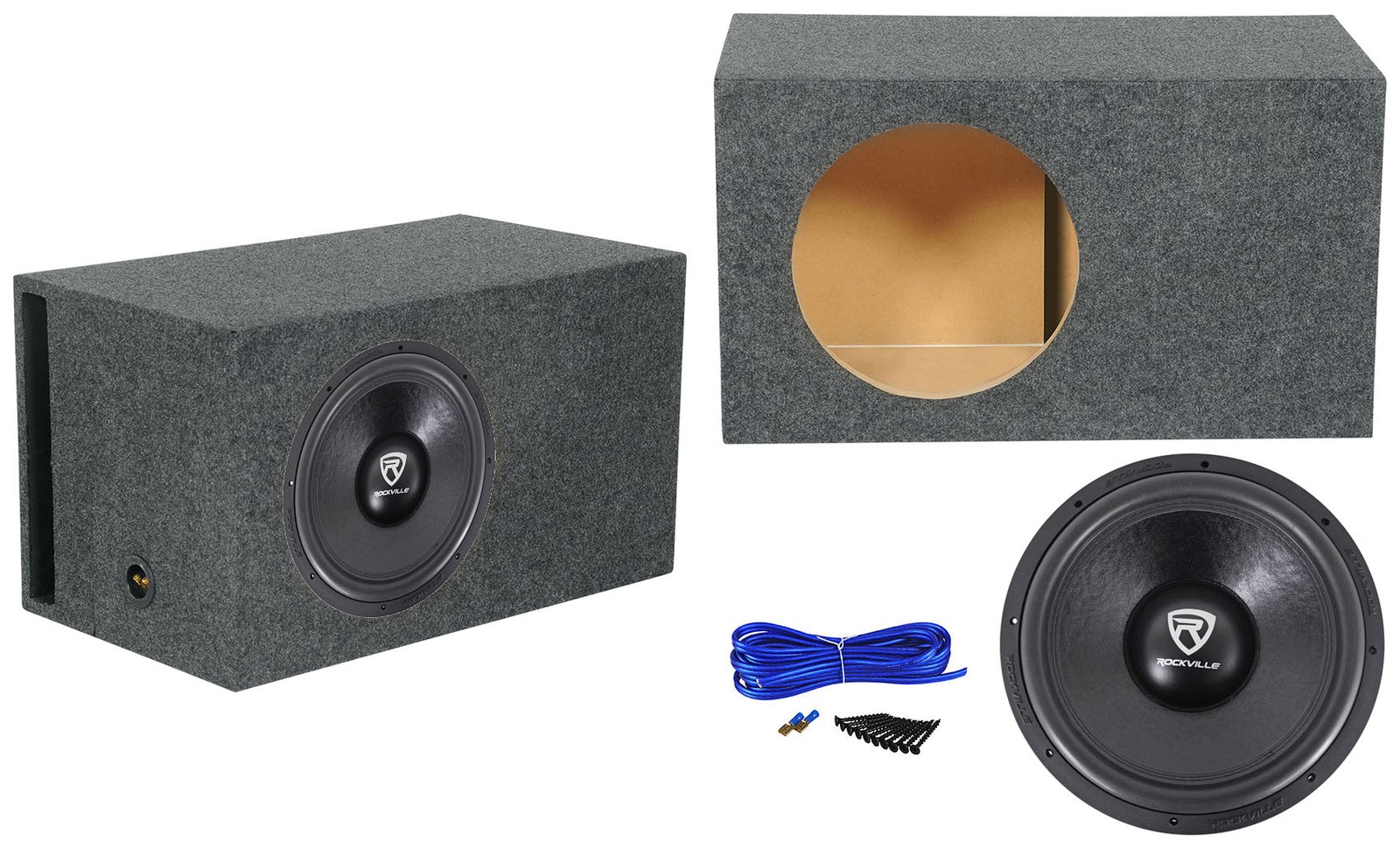

Package: Rockville W15K6D4 V2 15\" 4000w Car Audio Subwoofer Dual 4-Ohm Sub CEA Compliant + Rockville RGV15 Single 15\" Vented/Ported Subwoofer Enclosure - Constucted With 3/4\" MDF, Proudly Made By Hand in The USA + COMPLETE SINGLE ENCLOSURE INSTALLATION KIT WITH 14 AWG SPEAKER WIRE + DRYWOOD SCREWS + SPADE TERMINALS

Click Thumbnails to EnlargeCondition and Warranty

Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 1 YEAR AUDIOSAVINGS

Product DescriptionPackage Includes:

(1) Rockville 15\" Car Audio Subwoofer
(1) Rockville Single 15\" Vented Car Sub Enclosure Box 3.51 Cu Ft, 3/4\" MDF
10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
12 Feet of 14 AWG Blue Speaker Wire
2 Spade Terminals

Video of W15K6D4 V2:

Features:

Rockville W15K6D4 V2 K6 Series 15\" Dual 4-Ohm Car Subwoofer
Peak Power Handling: 4000 Watts
Program Power Handling: 2000 Watts
CEA Rated RMS Power Handling: 1000 Watts
3\" Voice coils (Black Aluminum Former Wound with 100% OFC Copper Wire
The wire we use is made in the USA! It is one of the most important components to make the sub high quality and last longer
Double Stacked 112 Oz High Quality Magnet
Cast Aluminum Basket With Black Sanded Finish Makes This Sub Very Efficient
Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone
Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
Red Stitching Cone Reinforcement Ensures Long Life
Polypropylene (PP) Dustcap
Two Chrome-Plated Binding Post Terminals - These are the best terminals on the market and they accept any gauge wire
Impedance: Dual 4-Ohm Voice Coils
Vented Hole on T-yoke Enhances Heat Dissipation
Special Custom Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
Custom Rockville Mounting Gasket Looks Beautiful and Makes it Easy To Mount the Subwoofer Air-Tight
High BL Magnetic Motor Gap
We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated
Cutout Diameter: 14.09” inches
Mounting Depth: 7.4” inches
Frequency Response: 27 Hz - 1.5K kHz
8mm T-Yoke + 8mm Washer
Sensitivity: 85dB
Sealed Enclosure Volume: 1.85 - 3.0 Cubic Feet
Vented/Ported Enclosure Volume: 2.75 - 4.0 Cubic Feet
Weight: 19.84 Lbs.
Shipping Weight: 24.25 Lbs.
Shipping Box Dimensions: 18.19\" x 18.19\" x 13.19\" Inches
XMAX:24 MM (One way)

Detailed Info:

Body: Non-Pressed Paper
Gap Plate Inside Diameter: 90mm (3.54 inches)
Gap Plate Outside Diameter: 156mm (6.14 inches)
Gap Plate Thickness: 25mm (1 inch)
Yoke Outside Diameter: 145mm (5.71 inches)
Yoke Thickness: 8mm (0.31 inches)
Yoke Pole Diameter: 70mm (2.8 inches)

TS Parameters:

TS Parameter Wired in Series Wired in Parallel Description of Measurement

Electrical Parameters

8.07Ohm

2.05Ohm

Electrical voice coil resistance at DC

7.619mH

1.907mH

Frequency independent part of voice coil inductance

11.216mH

2.829mH

Para-inductance of voice coil

17.51Ohm

4.44Ohm

Electrical resistance due to eddy current losses

Cmes

784.26µF

3145.99µF

Electrical capacitance representing moving mass

Lces

22.28mH

5.56mH

Electrical inductance representing driver compliance

Res

54.75Ohm

13.47Ohm

Resistance due to mechanical losses

38.1Hz

Driver resonance frequency

Mechanical Parameters (Using Laser)

Mms

345.647g

338.431g

Mechanical mass of driver diaphragm assembly including air load and voice coil

Mmd (Sd)

319.142g

311.927g

Mechanical mass of voice coil and diaphragm without air load

Rms

8.05kg/s

7.988kg/s

Mechanical resistance of total-driver losses

Cms

0.051mm/N

0.052mm/N

Mechanical compliance of driver suspension

Kms

19.78N/mm

19.35N/mm

Mechanical stiffness of driver suspension

20.994N/A

10.372N/A

Force factor (Bl product)

Lambda s

0.066

0.069

Suspension creep factor

Loss Factors

Qtp

1.376

1.393

Total Q-factor considering all losses

Qms

10.271

10.131

Mechanical Q-factor of driver in free air considering Rms only

Qes

1.514

1.54

Electrical Q-factor of driver in free air considering Re only

Qts

1.319

1.337

Total Q-factor considering Re and Rms only

Other Parameters

Vas

48.0382l

49.1035l

Equivalent air volume of suspension

0.168%

0.169%

Reference efficiency (2 pi-radiation using Re)

84.46dB

84.48dB

Characteristic sound pressure level (SPL at 1m for 1W @ Re)

Lnom

84.43dB

84.38dB

Nominal sensitivity (SPL at 1m for 1W @ Zn)

819.4 cm²

819.4cm²

Diaphragm area

EBP

25.2

24.7

Efficiency bandwidth product

Description for Rockville Enclosure:

The RGV15 single 15\" vented speaker box is made in the USA with Grade “A” ¾” MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The ¾” USA MDF is much stronger then any type of import wood. This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you! EVERY Rockville enclosure is not only glued at all joints but stapled as well.If that wasn’t enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more!

MADE IN THE USA WITH PRIDE!

Features:

Rockville RQV15 Single 15\" Vented/Ported Subwoofer Enclosure
Proudly Made In The USA, Using Only The Finest Quality Materials - For The Best Level of Performance From Your Subs!
3/4\" USA Heavy Duty MDF Construction
Machine precision cut mounting holes
Top of the line Glue for extra durable adhesion
High quality GOLD spring loaded terminals
Designed, tested, and engineered to work with most of today’s popular woofers.These enclosures are built with the quality additives needed to maximize the performance of any sound system.

Enclosure Measurements:

Type of Enclosure: Ported
Enclosure Sub Size: Single 15\"
Dimensions in Inches: 17\" L x 28\" W x 17H\"
Top and Bottom Depth: 17\"
Mounting Depth: up to 12.5\" (enough depth for any sub on the market)
Gross Volume Per Sub (Measurement for the outer dimensions of the box): 4.6 Cubic Feet
Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood): 3.51 Cubic Feet

Complete Single Subwoofer Enclosure Installation Kit!

Includes:

10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
12 Feet of 14 AWG Blue Speaker Wire
2 Spade Terminals

This accessory package includes everything you need to install one subwoofer into an enclosure, and wire to connect the enclosure to your amplifier. This package is a top of the line accessory package which we put together and tested.

The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure. The speaker wire is 14 gauge. This is way better than using 16 gauge. You can be 100 % sure that your enclosure will have a clean signal to the amplifier with this top of the line speaker wire. These spade terminals have also been hand selected by our installation experts to make the internal wiring simple, secure, and to run the audio signal cleanly.
