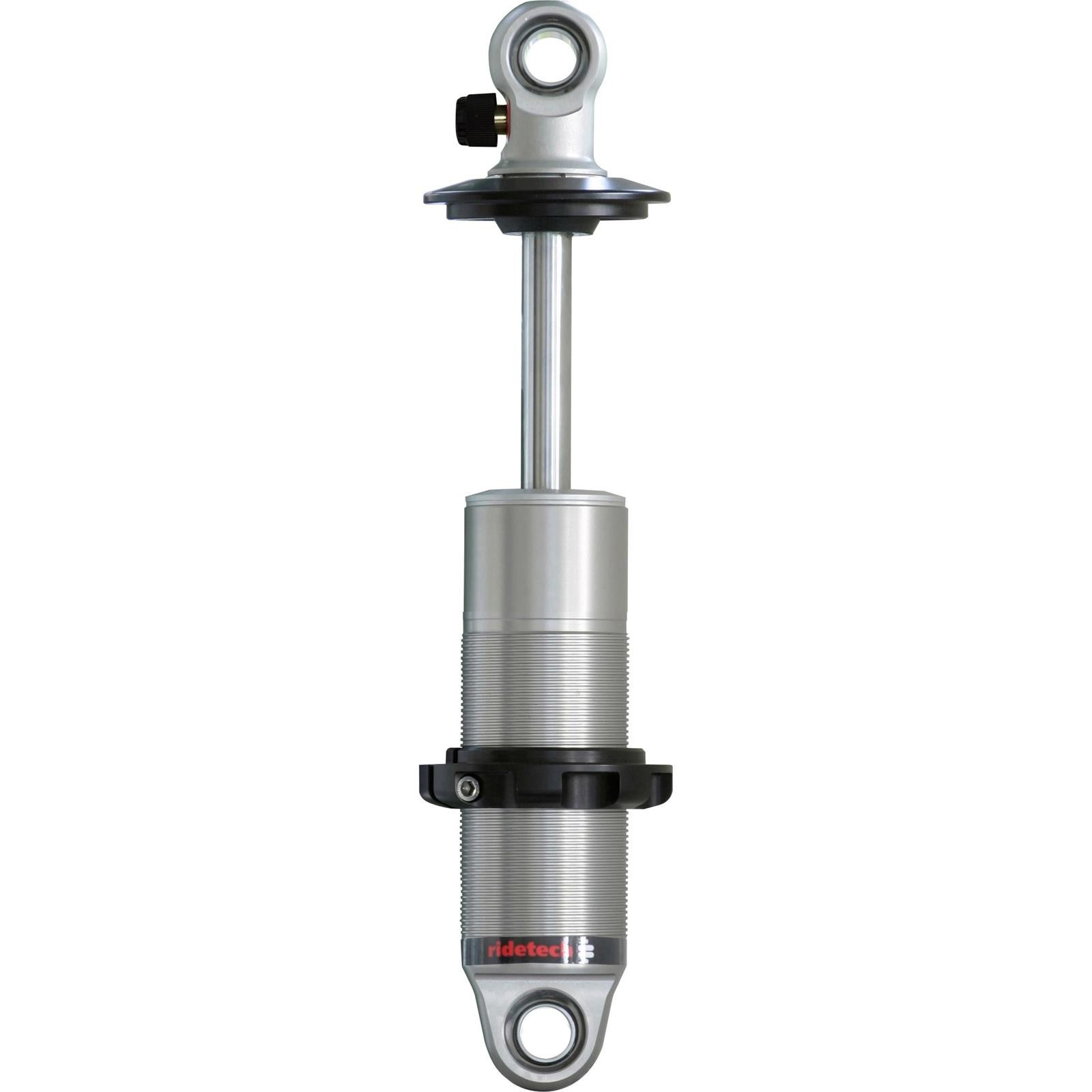

Ridetech HQ Series universal Coil Overs provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coil Overs can be custom configured for street rods, customs pickup trucks, pro-street cars and so much more. The quality and performance are underscored by Ridetech\'s world class technical support and a million and one mile warranty. we\'re here to help you choose the right coil-overs for your application. Likewise, we guarantee that they\'ll last. HQ Series Coil Overs feature 24-position rebound adjustment to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coil Overs are available in six lengths and multiple mounting configurations to adapt to nearly any application Ridetech 24139901 HQ Series Coilover Shock, 3.6" Travel Sku # 76824139901 Mfr. Part # 24139901 Condition New Brand Ridetech Sold Each Details
Ridetech HQ Series universal Coil Overs provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coil Overs can be custom configured for street rods, customs pickup trucks, pro-street cars and so much more. The quality and performance are underscored by Ridetech\'s world class technical support and a million and one mile warranty. we\'re here to help you choose the right coil-overs for your application. Likewise, we guarantee that they\'ll last. HQ Series Coil Overs feature 24-position rebound adjustment to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coil Overs are available in six lengths and multiple mounting configurations to adapt to nearly any application.
- Monotube gas pressure design is far superior to twin-tube.
- 24-Position Rebound Adjustment
- Exclusive 1,000,001 Mile warranty
- Impact forged aluminum body provides the best combination of strength, light weight and reliable service.
- Larger 1.834\" piston significantly larger than twin tube pistons.
- Heavy duty 5/8\" chromed shaft.
- Bodies are anodized for long lasting corrosion-resistant appearance.
- Double sealed rod guide with dust cover eliminates oil leakage.
- CNC machined billet aluminum adjusting hardware.
- Unique fine-threaded pinch clamp height adjuster provides easy adjustment.
- Coil spring recommendation for 3.6\" stroke shock - 8\" Free Length, 2.5\" I/DSold Individually
Included Components
1- Aluminum monotube shock
1- Upper spring seat
1- Lower adjuster nut
1- Upper spring seat clip
1- set of 5/8”-1/2” bearing spacer kit
1- Delrin Washer set of 2
This item is being shipped to you directly from the manufacturer and is subject to an increased handling time. Delivery estimates that include the handling time are displayed on the \"Shipping and Payments\" tab. Specs Position Rear Shock Adjustability Single Adjustable Shock Type Mono Tube Shock Body Material Aluminum Shock Body Type Threaded Shock Stroke 3.60 Upper Shock Mount Eyelet Lower Shock Mount Eyelet Compressed Length Range 9.00" to 9.99" Compressed Length 9.43" Extended Length Range 13.00" to 13.99" Extended Length 13.03" Height Adjustable Yes Spring Diameter 2.5" Spring Length 8 Inch Number of Valving Selections 24 Finish Anodized Coilover Kit Included Yes Coilover Springs Included No Thread Length 3.5" Bushing Material Kevlar Body Diameter 2.00" Sold in Quantity Each Adjustable Yes Hardware Included Yes Gas Charged Yes MFG. Part # 24139901 GTIN Code 840123509499 Tech Support We\'re here to help before and after your purchase. If you have a question or need assistance with one of our products, please contact us through Messaging and a knowledgeable Speedway Motors team member will be happy to help. About Speedway Motors is America’s Oldest Speed Shop® and has been a trusted source for specialty rodding and racing products and friendly expert advice for more than 74 years. Founded in 1952 by “Speedy” Bill Smith – a racer and street rodder himself – Speedway has grown from a one-man operation to become the world’s largest manufacturer, distributor and retailer of street rod and racing products. Our industry-leading fast delivery is the result of same-day shipping from our state-of-the-art, centrally located 500,000 sq. ft. headquarters. Speedway’s size offers customers unmatched product selection and low pricing, while our excellent technical support and customer service have made us a recognized leader in the rodding and racing industries.
