Rear-End Bolt-On Disc Brake Kit Conversion & E-Brake Caliper For Ford 9 Inch For Sale - New and Used

Gesa8736

Best choice of motor parts

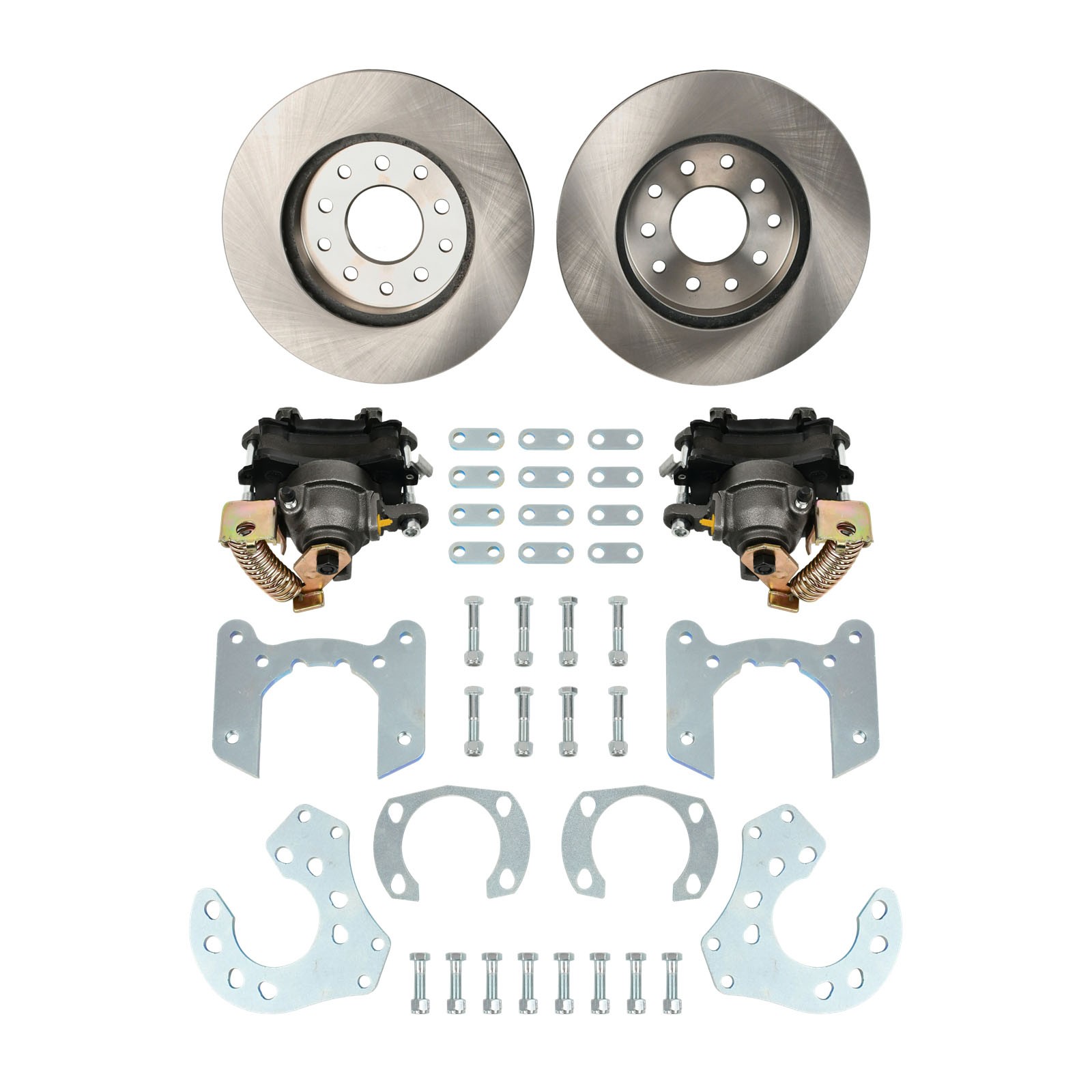

This Kit Contains:

• (2) 11-1/4 Inch Rear Brake Rotor

• (1) GM Metric Disc Brake to 9 Inch Ford Bracket Set
• (1) Ford 9 Inch Brake Bolt Kit
• (1) 1978-Up GM Metric Emergency Brake Caliper, LH, 5.45 Mount Bolts
• (1) 1978-Up GM Metric Emergency Brake Caliper, RH, 5.45 Mount Bolts
• Mounting Hardware

• As shown in the picture above​

• Product Type:Disc Brake Kit

• Rotor Diameter: 11.25 Inch

• Placement on Vehicle: Rear

• The floating calipers include new Grade 5 slider bolts, with all remaining hardware of Grade 8 quality. Cast iron rotors feature a dual bolt pattern in 5x4.5” (Ford/Mopar/AMC) or 5x4.75” (Chevy/GM) to match your desired wheel hub pattern. Plus, this assembly will clear most 15” diameter wheels designed with disc brakes in mind.
• 11-1/4” diameter, 1” thick vented cast iron rotors dissipate heat faster than drum brakes
• Serviceable design ensures good drivability and piece-of-mind when on the road
• Street-friendly GM D154 style pads, replacements available nearly everywhere
• GM “Metric” style single piston calipers with 7/16”-20 banjo-style inlets
• Fits Ford “big bearing” 9 inch housings from passenger cars
• Use with Ford 9 inch rear ends with 2-3/8” or 2-1/2” axle flange-to-housing offsets
• Dual wheel bolt patterns covering all GM/Ford/Mopar (5x4.5” for 1/2” studs, 5x4.75” for 7/16” studs)
• Use with 15” or larger disc brake-style
• This disc brake kit fits Ford 9 inch axles, as well as passenger car Ford 9 inch axle housings with “big bearing” ends (3.150” O.D. bearing, found on passenger cars from 1974-79). Included bracketry will adapt this kit to both “new style” and “old style” Ford 9 inch housing flanges with the 3/8” bearing retainer bolt holes. Bracket spacers are also included, allowing this kit to work with axle flange offsets of 2-3/8” or 2-1/2” common on Ford 9 inch passenger car rear ends. Axle flange offset is measured from the axle housing flange face (with bearing retainer removed) to the axle shaft flange face (side where the brake rotor/drum rides, including the thickness of the axle
• 100% brand new, Never been tried or installed
• No instructions are supplied.Please consult with a qualified mechanic before attempting installation!
