Special features
Black Dial Instrument Cluster
Featuring A Clean Black Dial And Bold Red Pointers, Designed With A Dual Voltage Configuration Of 12V And 24V, This Product Is Suitable For A Broad Spectrum Of Marine, Automotive, And Truck Instrument Applications.
7-Color Backlight Customization
8 Color Modes: Red, Green, Blue, White, Yellow, Cyan, Purple, and Cycling.
Comprehensive Protection
Our Instrument Cluster Features IP67 Waterproof Protection, An Anti-Fog Lens, UV-Resistant Faceplate, And A Rustproof Bezel, Ensuring Durability And Clarity In Various Conditions.
Specifications of Gauges.
Speedometer 0-120 MPH, Tachometer 0-8000 RPM, includes a Cumulative Non-Resettable Odometer, Speed alarm function, a High Beam and Turn Signal Indicator Light.
Specifications and Dimensions of Gauges.
Our Instrument Clusters
Designed For Durability, Featuring A Stainless Steel Rim, Clear Flat Lens, And A Tough ABS Housing. Perfect For Any Environment.
Specifications and Dimensions of Gauges.
Our 110mm (4-3/8") 3in1 Speedometer Have A Depth Of 40mm (1.6").
There Is A Waterproof Rubber Stopper On The Back Of The Product, Ensuring High Water Resistance.
GPS Speed Sensor
Waterproof GPS Antenna With A 300cm (118.11 Inch / 9.84 Foot) Cable, Ideal For Outdoor Applications.
Tachometer Setting
1. Tachometer Signal Input
There are three proper methods for obtaining the tachometer signal:
Method 1 – Gear-Mounted Speed Sensor (Hall Effect or Magnetoelectric Sensor) Install a speed sensor facing the gear shaft to obtain the signal.
- Make sure the sensor directly faces the gear.
- Maintain a gap of no more than 1.5 mm between the sensor and gear.
Method 2 – Ignition Coil Negative Terminal Connect the tachometer signal wire to the negative (-) terminal of the ignition coil.
- No additional sensor is required.
- If the reading is unstable or affected by interference, you may connect a 56 kΩ resistor (any wattage) in series with the signal wire.
Method 3 – Alternator W-Terminal Connect the tachometer signal wire directly to the W-terminal output of the alternator.
- No additional sensor is required.
2. Speed Ratio Setting
Once you have confirmed the signal source, please make sure the tachometer's speed ratio is correctly adjusted.
The required ratio can vary depending on the signal source, even when using the same engine. The ratio is adjustable and can be fine-tuned according to your specific setup.
- 4-cylinder: 002.0
- 6-cylinder: 003.0
- 8-cylinder: 004.0
3. Tachometer Filter
Tachometer signals can sometimes fluctuate due to electrical interference. In this case, we recommend using the appropriate tachometer filter to help eliminate unwanted pulse interference and stabilize the RPM reading.
- No. 22 Filter – Suitable for single-coil or point-style coil ignition systems.
- No. 24 Filter – Suitable for High Energy Ignition (HEI) systems.
Please select the filter that best matches your vehicle's ignition system and signal characteristics.
The Entire Set Includes

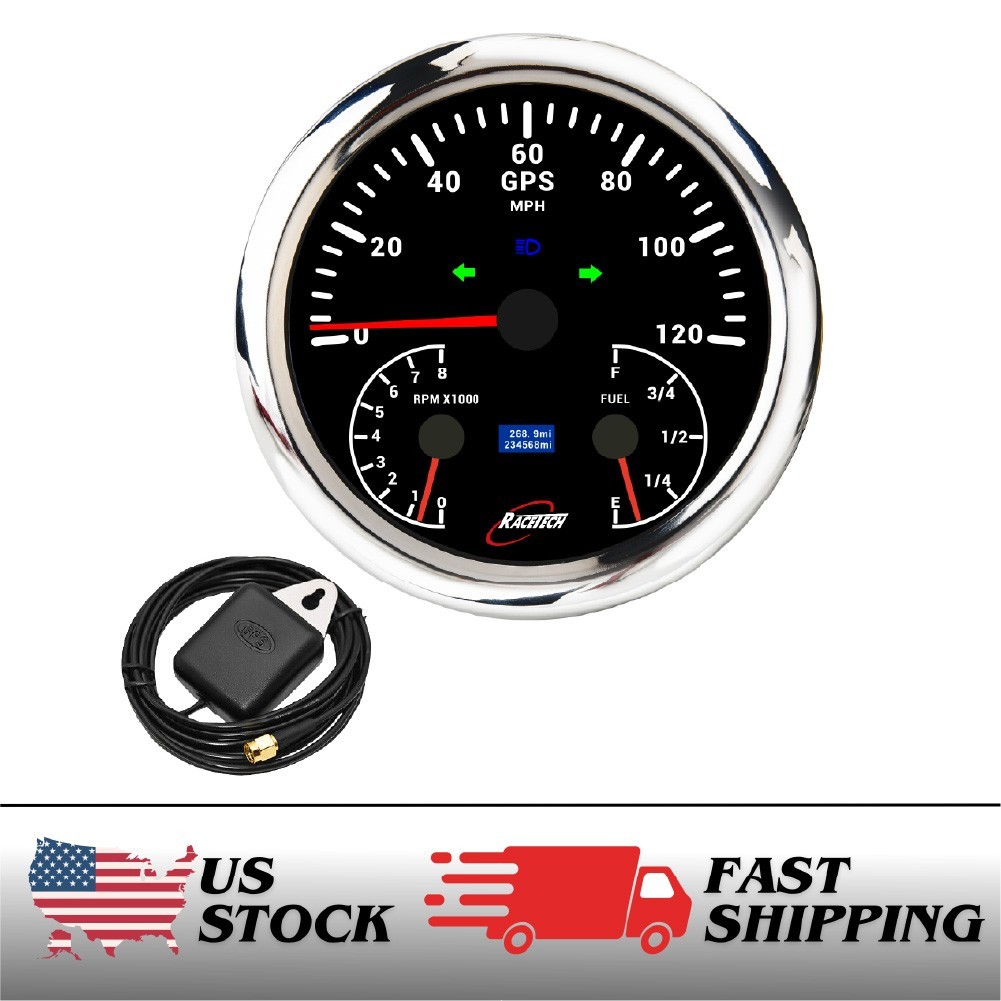

- 110mm (4-3/8") Electrical Speedometer + Tachometer + Fuel Level Gauge x1
- GPS Speed Sensor for Speedometer x1
- Speedometer Comes Equipped With A Fastening Ring
- Installation Instructions x1
About this item
- SIZE: 110mm (4-3/8") 3in1 Speedometer.
- PRODUCT DETAILS: Speedometer: 120 MPH. Tachometer: 0-8000 RPM. Fuel Level: E-F & Resistance range can be adjusted from: 240-33 ohms, 0-90 ohms, 0-190 ohms, or 10-180 ohms. It requires 12/24 volt negative ground systems.
- FEATURES: Precision Movement & Extreme Accuracy GPS sensor, Turn Signal & High Beam Indicator, with IP-67 Waterproof, Rustproof, Anti-Fog, UV-Resistant and Power off Memory Functions, Clear Convex Lens, 316 Stainless Steel Bezel with ABS Plastic Housing.
- INCLUDES: 3in1 Speedometer, GPS Sensor, Wiring Harness, Installation Instructions.
- One-Year Warranty For Non-Human Factor Damage & Free Lifetime Technical Support. If you experience any issues with your product, please contact us through first. Our team will be happy to assist you with troubleshooting or replacements.
- Note: If the tachometer shows fluctuations, it does not necessarily mean it is defective. We recommend using a tachometer filter. This filter helps smooth out erratic signals by removing unwanted pulse interference, ensuring more accurate readings. The need for a filter may vary depending on the vehicle and its ignition system.
