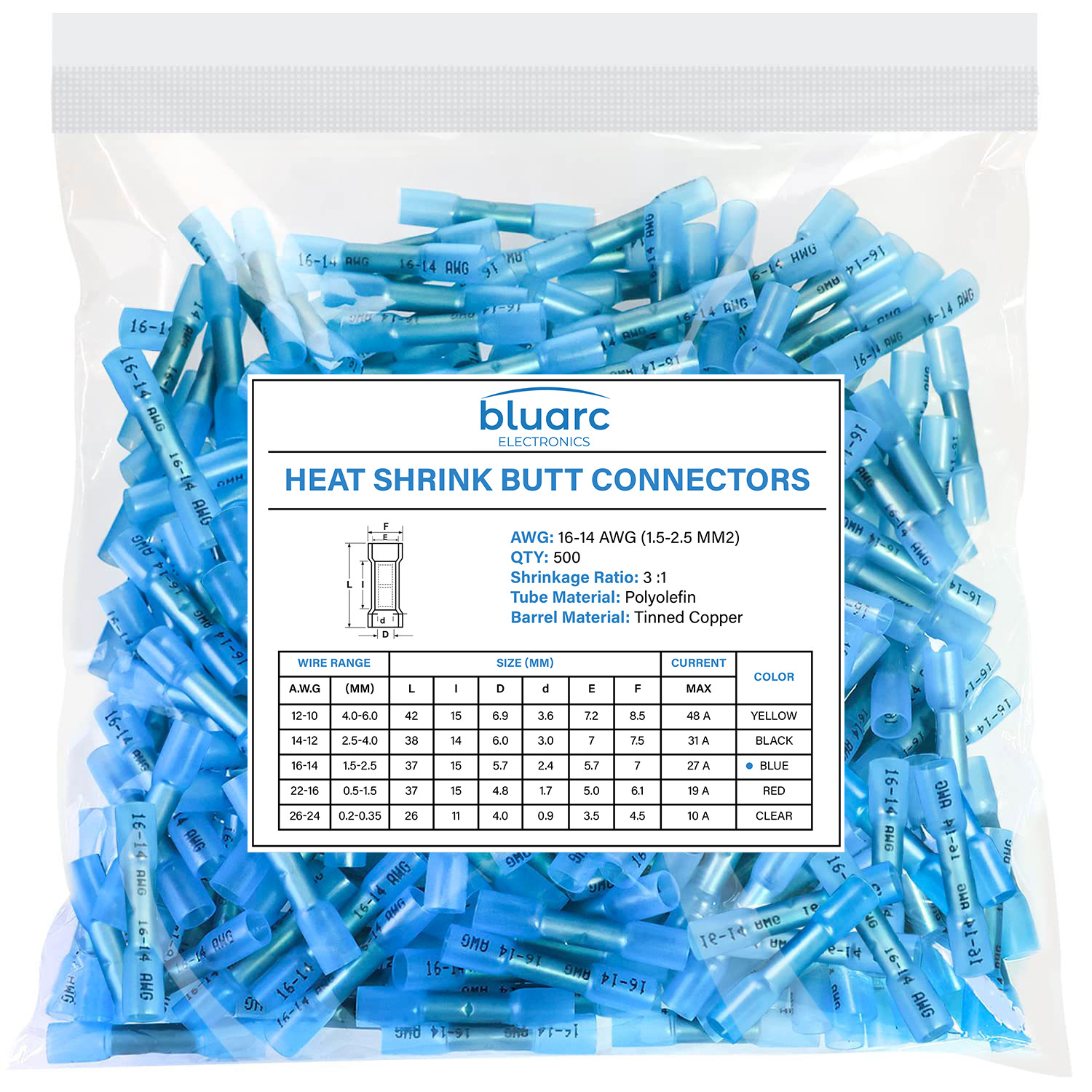

Perma-Seal BUTT Connector 16-14 Ga.(19164-0044) Heat Shrink, Insulated, Adhesive, Waterproof, High Performance Connectors - Comparable to Molex 19164-0044 (500)
- PACKAGE - 500 Perma-Seal Heat Shrink Butt Connectors (Blue, 16-14 AWG) - Designed for durability in wet and extreme environmental / heavy-duty commercial & industrial applications (19164-0044)
- MATERIALS - Constructed from heavy-duty upgraded tinned copper, double-walled polyolefin heat shrink tubing and premium adhesive lining - creating a waterproof 360-degree secure seal
- INSTALLATION - Solderless crimping - Strip wire insulation and insert into shrink butt connectors, crimp the copper barrel with crimper to compress ends of the wires together and heat with a heat gun
- ATTRIBUTES - 3:1 Shrink Ratio - Marine Grade Adhesive Lined Heat Shrink Tubing - provides high tensile strength with a hot melt adhesive inside the tubing to ensure complete waterproof performance.
- APPLICATION - Marine, Automotive, Industrial, Commercial, Electrical, and Agricultural Applications - Waterproof, Corrosion-Resistant and Durable with a Lifetime Warranty
Perma-Seal Heat Shrink Butt Connectors, 16-14 AWG, Marine Grade, Adhesive Lined, Waterproof Electrical Crimp Wire Splice - Designed for Marine, Automotive, Ag, and Industrial Cable & Wiring (19164-0044)
Perma-Seal waterproof adhesive butt connectors, designed to provide long-lasting, moisture-proof connections that withstand exposure to a wide range of corrosive fluids, including saltwater, hydraulic fluids, and gasoline. These connectors feature a heat-shrinkable NiAc sleeve with a special hot-melt adhesive lining the inner wall. This adhesive remains inert at room temperature, but when the sleeve is heated, the adhesive melts and flows, filling any voids and creating a secure seal against environmental factors.
Installation is simple—just crimp the Perma-Seal butt connector onto the wire and apply heat using a heat gun or torch to shrink and seal the connection. The NiAc insulation shrinks at a lower temperature of 90°C (194°F), up to 40% faster than traditional nylon or polyolefin tubing, significantly reducing installation time and costs while minimizing the potential for wire insulation damage.
Designed for durability in hostile environments, the Perma-Seal butt splice resists abrasion and cutting, maintaining its sealing properties in even the most challenging conditions. The see-through insulation allows for easy visual inspection, ensuring a proper connection every time. Additionally, the funnel entry opening accommodates both thick and thin wire insulation, making these connectors versatile for various wire types.
With superior chemical resistance, fast shrinking, and enhanced protection, Perma-Seal connectors are an ideal solution for marine, automotive, and industrial applications that require durable, moisture-resistant connections.
Specs:
- Perma-Seal Size 16-14
- Insulation: Heat Shrink
- Material: Tin-plated copper
Allows for easy wire insertion
Butted seam barrel for extra wire grip
Durable even when immersed in anti-freeze, brake fluid and other chemicals
Reduces labor costs and time - 40% faster shrinking than polyolefin or nylon products
Wall thickness is significantly thicker than competing polyolefin or nylon products, providing excellent durability
