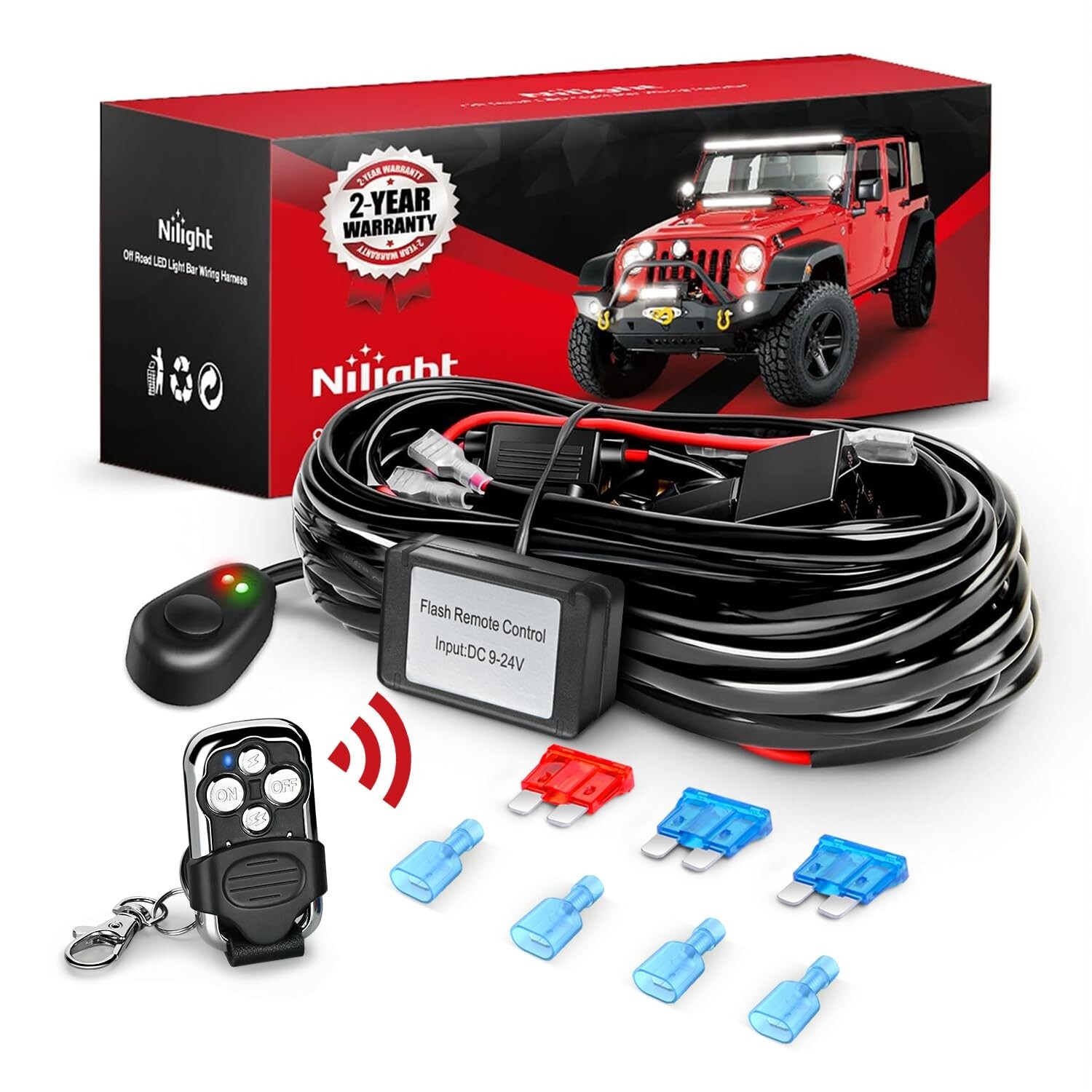

LED Light Bar Wiring Harness Kit-2 LeadsNilight Strobe Light Wiring Harness with Remote Control
- Working Voltage: 12V DC；Max Wattage: 180W；Wire Gauge: 16 AWG；
- Automotive relay, inline blade fuse with three extra fuses；
- 2 Control Methods:Rocker Switch(ON-OFF)；Remote Control(ON-OFF, Fast Strobe, Slow Strobe)；
- Suitable for installing on almost all 12V battery vehicles, such as jeeps, ATVs, UTVs, cars, motorcycles, ships, yachts, and trailers to control LED light bar, LED work light, LED light pods, Driving Lights etc
- Two Controllers: On/off switch with red and green Indicator light when truing on, easy to turn on or off, long service life. It contains 4 modes of remote control, which can be remotely controlled. Modes include: on/off/fast flash/slow flash. You can adjust it according to your preference.
- Two Leads Available: 12FT extendable wiring harness, with two sets of light output connectors, the wiring harness can hook up two strobe light bars within 180W at the same time. The black wire is connected to the negative pole, the red wire is connected to the positive pole.
- Circuit protection: Power relay for safety protection and conversion circuit. Blade fuse protects the circuit when over-current or short circuit occurs. Its load capacity is up to 180W and comes with two extra fuses.
- Application：The wiring harness kit is fit for 6 modes light bar that is within 180W. It is suitable for almost all 12V battery vehicles, such as jeeps, ATVs, UTVs, cars, motorcycles, ships, yachts, and trailers. If your power supply is 24V, please replace the original 12 V relay to 24V relay.
- Package includes: 1 x wiring harness kit, 3 x blade fuses, 4 x connectors,1x wiring diagram.
FeaturesMouse Style Switch
With adhesive backing, no drilling required. Can be installed in any position. You can freely turn on the lights with a simple press of the button.
Automotive Relay
The relay is high quality made with well conductive pins. It effectively protects the circuit and the lighting system.
Inline Fuse with Fuse Holder
Inline Fuse against over-current and short circuit. Specially designed cap, efficiently prevent water and dust from entering.
Two Leads
Two leads design, the wiring harness can hook up two LED lights within 180W at the same time. or you can use piggyback connector to add more lights.
Remote Control and Control BoxRemote Control
The remote control can control the LED lights without turning the rocker switch on. This remote control can be used on any LED light you want to turn on, off, slow flash and fast flash. Great idea if you want to turn on the car lights when you are not in the car.
Control Box
The signal receiver box of the remote control must be connected with the wiring harness. The control box needs to be installed in a suitable location, otherwise it will affect the wireless signal reception. Remote control distance: within approx 30 meters.
Two Control Methods: No Drilling Switch or Remote Wireless ControlPrevious page
- ON-OFF Switch
It can be installed anywhere in the car.
Function: On-Off
Next pageWiring DiagramWidly used in 12V vehicles to control LED Lights
Suitable for installing the remote harness kit on ATV, SUV, truck, train, motorbike, bus, tank, excavator, Dozer, road roller, Tractor, Harvester, Grain Drill, Mower, Snowplow, bulldozer, crane, forklift to controlling the LED light bar, LED work light, LED light pods, Driving Lights etc.
