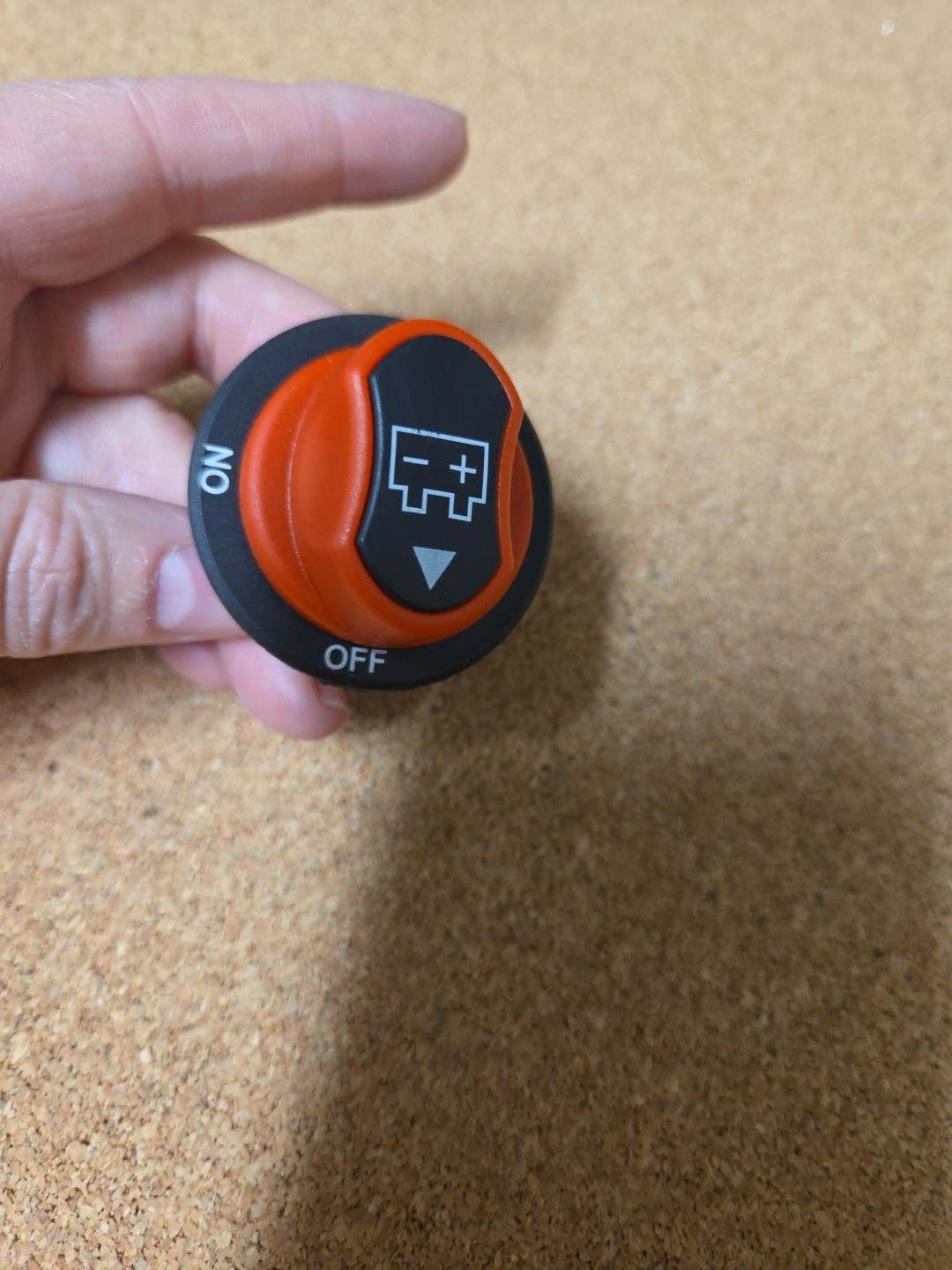

ON&Off Battery Disconnect Switch
■ 50A Specification:
Voltage Rating: 50VDC Max Continuous Rating: 50Amps Intermittent Rating: 75Amps Cranking Rating: 300Amps 5 sec Operation: 2P SPST OFF-ON Degree of Protection: IP 54
Termination Stud Size: M4xP0.7
■ Installation:
1. Turn off the break or power to make sure your safety before the installation.
2.
Use cables to connect one side of the switch terminal to the ground and
another one to the negative side of battery.
3. Mount the switch to the frame.
