Product Type: Alternator; Condition: New; Unit Series: PMA; Voltage: 24V; Amperage: 120A; Rotation: CW; Regulator/Fan: IR/IF; Plug Orientation: Rear; Pulley Class: Pulley Not Included; Mounting Hardware Included: No; Unit Finish: Same as OE; Number of Pieces: 1; Country of Origin: CN; Notes: I, W TERMINAL (M5-0.8)
- Window Regulators
- Wiper Motors
Menu
- Home
- New items
- CONTACT
- CATALOG
- ABOUT US
- response
categories Regulators- Wiper Motors
- 1 Year Warranty
- Same Day Handling
- Free Returns

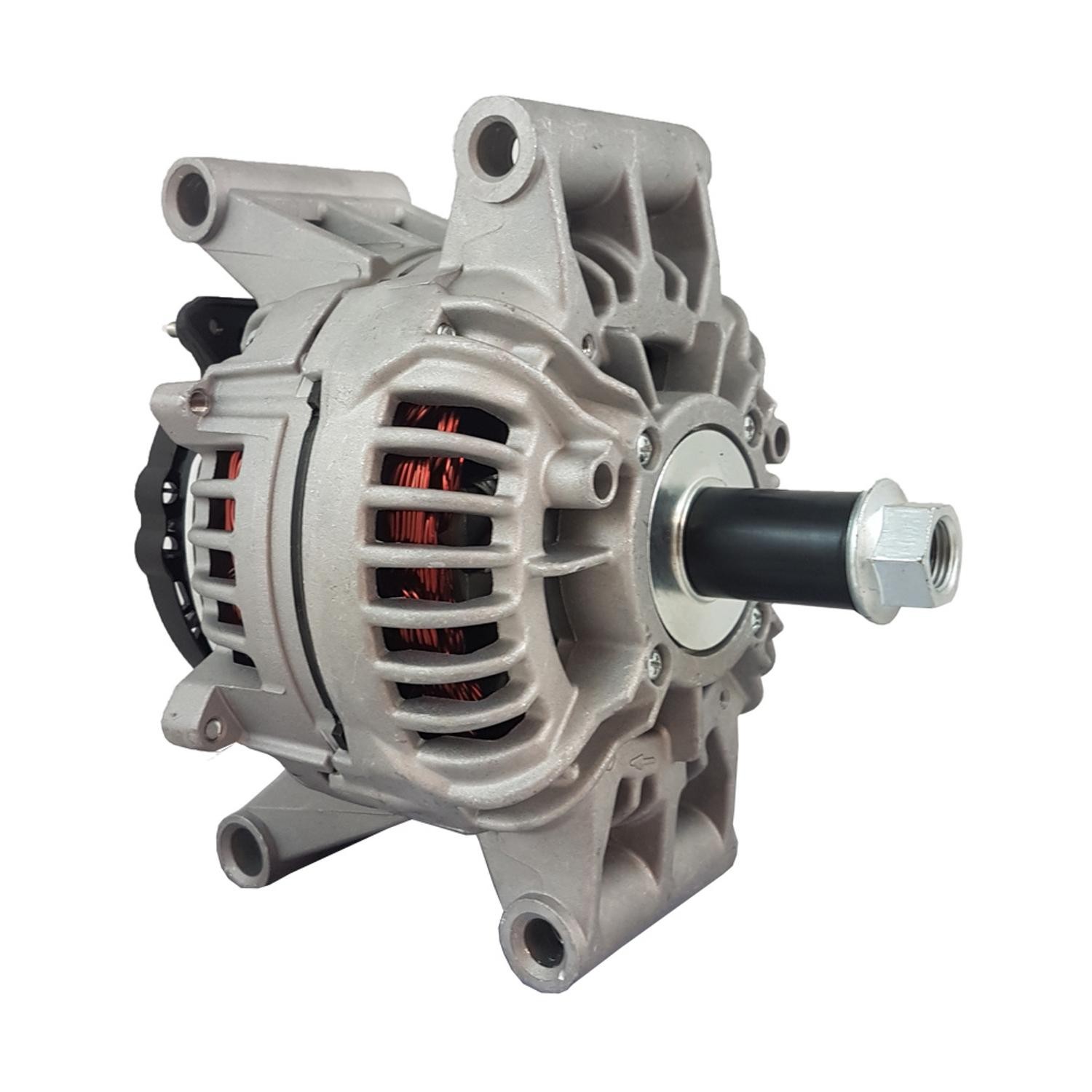

New 120A Alternator Fits Caterpillar 329D 2008-09, 329DL 2009-2010 BOS0124655297
Specifications OE Manufacturer: Product Type: Alternator Weight: 18.0770 Condition: NEW Unit Source: Design / Type: Design / Type: Design / Type: PMA Starter Series: Location - General: Location - Specific: Design Type: Voltage: 24 Amperage: 120 kW: Rotation: CW Regulator/Fan: IR/IF Tooth Count: Spline Count: Polarity: Shaft Type: Duty Cycle: Horsepower: RPM: V-Set: Circuit Type: Plug Code: Plug Orientation: Rear Pulley Class: w/o Pulley Case OD (mm): Overall Length (mm): Gear OD (mm): Pulley Belt Width (mm): Pulley OD (mm): Shaft Overall Length (mm): Shaft OD (mm): Clutch Type: Operating Mode: Pads Included: Connection Type: Piston Material: Number of Pistons: Piston Outside Diameter (in): Piston Outside Diameter (mm): Bleeder Port Measurement: Inlet Port Measurement: Ignition Type: Housing Material: Torque (ft. lbs): Pulley OD (in): Crankshaft OD (in): Terminal Type: Sensor Included: Idle ACM Included: Cage Wheel Included: Wiring Harness Included: Number of Pistons: Caliper Pistion OD (mm): Motor Overall Length (in): Motor OD (in): Wheel OD (in): Bearing Inside Diameter (mm): Bearing Outside Diameter (mm): Bearing Width (mm): Rotor Inside Diameter (mm): Rotor Outside Diameter (mm): Rotor Overall Length (mm): Rotor Shaft Outside Diameter (mm): Rotor Shaft Overall Length (mm): Mounting Hardware Included: No Installation Hardware Included: Mounting Type: Mounting Type: Mounting Type: Cap Design: Plunger Type: Includes: Includes: Number of Mounting Holes: Number of Terminals: Number of Wires: ETB Inside Diameter (in): Terminal Type: Hose Inside Diameter: Minimum Flow Rate: Minimum Pressure: Compressor Type: Control Valve Included: Refrigerant Type: Oiling Type: Number of Pulley Grooves: Discharge Port (mm): Suction Port (mm): Oil Quantity (oz): Anti-Lock Brake Sensor Included: Wheel Hub Inside Diameter (mm): Wheel Hub Outside Diameter (mm): Pre-Greased: Number of Wheel Studs: Unit Finish: Same as OE Unit Color: Number of Pieces: 1 Country of Origin: CN Country of Use: Notes: I, W TERMINAL (M5-0.8) Other Part #: 554881RIB 400-24255 40024255 366275601 366-2756
Customer Service Available 7 Days A Week
- Compatible with
- PART NUMBERS
Compatible with
Caterpillar 120 AWD 2019-2022 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 120L 2019-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 140 AWD 2017-2022 L6 9.3L 567cid Caterpillar C9.3B ALT-BO IRIF 24V 120A
Caterpillar 140 GC 2017-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 140 GC 2017-2024 L6 9.3L 567cid Caterpillar C9.3B ALT-BO IRIF 24V 120A
Caterpillar 140 GC AWD 2017-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 140 GC AWD 2017-2024 L6 9.3L 567cid Caterpillar C9.3B ALT-BO IRIF 24V 120A
Caterpillar 2570D 2016-2022 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 2670D 2016-2022 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 320 GC 2017-2024 L4 4.4L 269cid Caterpillar C4.4 ALT-BO IRIF 24V 120A
Caterpillar 323D2 2017-2022 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 323D2 L 2017-2022 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 323F L 2013-2019 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 326D2 2017-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 326D2 L 2017-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 326F 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 326F L 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 326F LN 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 329D2 2010-2018 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 329D2L 2010-2018 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 329F L 2013-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 330 GC 2018-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 330D2 2017-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 330D2 L 2017-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 330F 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 330F L 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 330F LN 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 335F 2020-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 335F L 2015-2020 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 335F LCR 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 345 GC 2018-2024 L6 9.3L 567cid Caterpillar C9.3 ALT-BO IRIF 24V 120A
Caterpillar 538 2011-2022 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 558 2011-2022 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 563D 2014-2021 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 573D 2014-2021 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 631K 2016-2024 L6 18.1L 1105cid Caterpillar C18 ALT-BO IRIF 24V 120A
Caterpillar 631K OEM 2016-2024 L6 18.1L 1105cid Caterpillar C18 ALT-BO IRIF 24V 120A
Caterpillar 637K 2016-2024 L6 18.1L 1105cid Caterpillar C18 ALT-BO IRIF 24V 120A
Caterpillar 637K 2016-2024 L6 9.3L 567cid Caterpillar C9.3 ALT-BO IRIF 24V 120A
Caterpillar 725C2 2017-2022 L6 9.3L 567cid Caterpillar C9.3B ALT-BO IRIF 24V 120A
Caterpillar 735C 2015-2019 L6 12.5L 763cid Caterpillar C13 ALT-BO IRIF 24V 120A
Caterpillar 735C 2015-2019 L6 15.2L 928cid Caterpillar C15 ALT-BO IRIF 24V 120A
Caterpillar 740 EJ 2017-2022 L6 18.1L 1105cid Caterpillar C18 ALT-BO IRIF 24V 120A
Caterpillar 740 GC 2017-2024 L6 15.2L 928cid Caterpillar C15 ALT-BO IRIF 24V 120A
Caterpillar 740C 2015-2018 L6 18.1L 1105cid Caterpillar C18 ALT-BO IRIF 24V 120A
Caterpillar 740C EJ 2015-2018 L6 18.1L 1105cid Caterpillar C18 ALT-BO IRIF 24V 120A
Caterpillar 745C 2015-2019 L6 18.1L 1105cid Caterpillar C18 ALT-BO IRIF 24V 120A
Caterpillar 773G LCR 2012-2019 V12 27.0L 1650cid Caterpillar C27 ALT-BO IRIF 24V 120A
Caterpillar 775G 2012-2019 V12 27.0L 1650cid Caterpillar C27 ALT-BO IRIF 24V 120A
Caterpillar 777E 2016-2024 V12 32.1L 1959cid Caterpillar C32 ALT-BO IRIF 24V 120A
Caterpillar 777G 2012-2022 V12 32.1L 1959cid Caterpillar C32 ALT-BO IRIF 24V 120A
Caterpillar 924K 2012-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 926M 2013-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 930K 2013-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 930M 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 938K 2012-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 938M 2013-2020 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 950GC 2017-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 950K 2012-2015 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 953K 2016-2022 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 962 2016-2022 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 962K 2012-2015 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 962L 2019-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 962M 2014-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 963K 2015-2022 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar 966L 2016-2024 L6 9.3L 567cid Caterpillar C9.3 ALT-BO IRIF 24V 120A
Caterpillar 972L 2018-2024 L6 9.3L 567cid Caterpillar C9.3 ALT-BO IRIF 24V 120A
Caterpillar 980L 2019-2024 L6 12.5L 763cid Caterpillar C13 ALT-BO IRIF 24V 120A
Caterpillar 986H 2013-2019 L6 15.2L 928cid Caterpillar C15 ALT-BO IRIF 24V 120A
Caterpillar AP1000F 2019-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar AP1055F 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar AP655F 2017-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar D6 XE LGP 2019-2022 L6 9.3L 567cid Caterpillar C9.3 ALT-BO IRIF 24V 120A
Caterpillar D6 XE XL 2019-2022 L6 9.3L 567cid Caterpillar C9.3 ALT-BO IRIF 24V 120A
Caterpillar D6 XL 2019-2022 L6 9.3L 567cid Caterpillar C9.3 ALT-BO IRIF 24V 120A
Caterpillar M318F 2017-2020 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar M320F 2017-2021 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar M322F 2016-2019 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar MH3022 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar MH3024 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar MH3026 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar MH3037 2015-2024 L6 7.0L 428cid Caterpillar C7.1 ALT-BO IRIF 24V 120A
Caterpillar PM312 2019-2024 L6 9.3L 567cid Caterpillar C9.3 ALT-BO IRIF 24V 120A
Caterpillar PM313 2019-2024 L6 9.3L 567cid Caterpillar C9.3 ALT-BO IRIF 24V 120A
Caterpillar Ag. & Ind. 140 2017-2022 L6 9.3L 567cid Caterpillar C9.3B With Bosch Alternator
Caterpillar Ag. & Ind. 324D 1996-2006 All
Caterpillar Ag. & Ind. 324DL 2005-2006 All
Caterpillar Ag. & Ind. 326DL 2008-2008 All
Caterpillar Ag. & Ind. 329D 2008-2009 All
Caterpillar Ag. & Ind. 329DL 2009-2010 All
*NOTE: "M.T" Indicates Manual Transmission / "A.T" Indicates Automatic Transmission*
Please Reach Out To Customer Service To Confirm Fitment, If Necessary.
PART NUMBERS
Caterpillar: 3445081, 366-2756, 366275601
Perkins Engine: T412091, 3445081
Bosch: 0124655076, 0124655297
Lester: 24402
J & N Automotive: 400-24255
Dixie Electric New: 160-55226
Dixie Electric: A-6656
AD Kuhner: 554881RIB
Wood Auto Supplies: BOS0124655297
