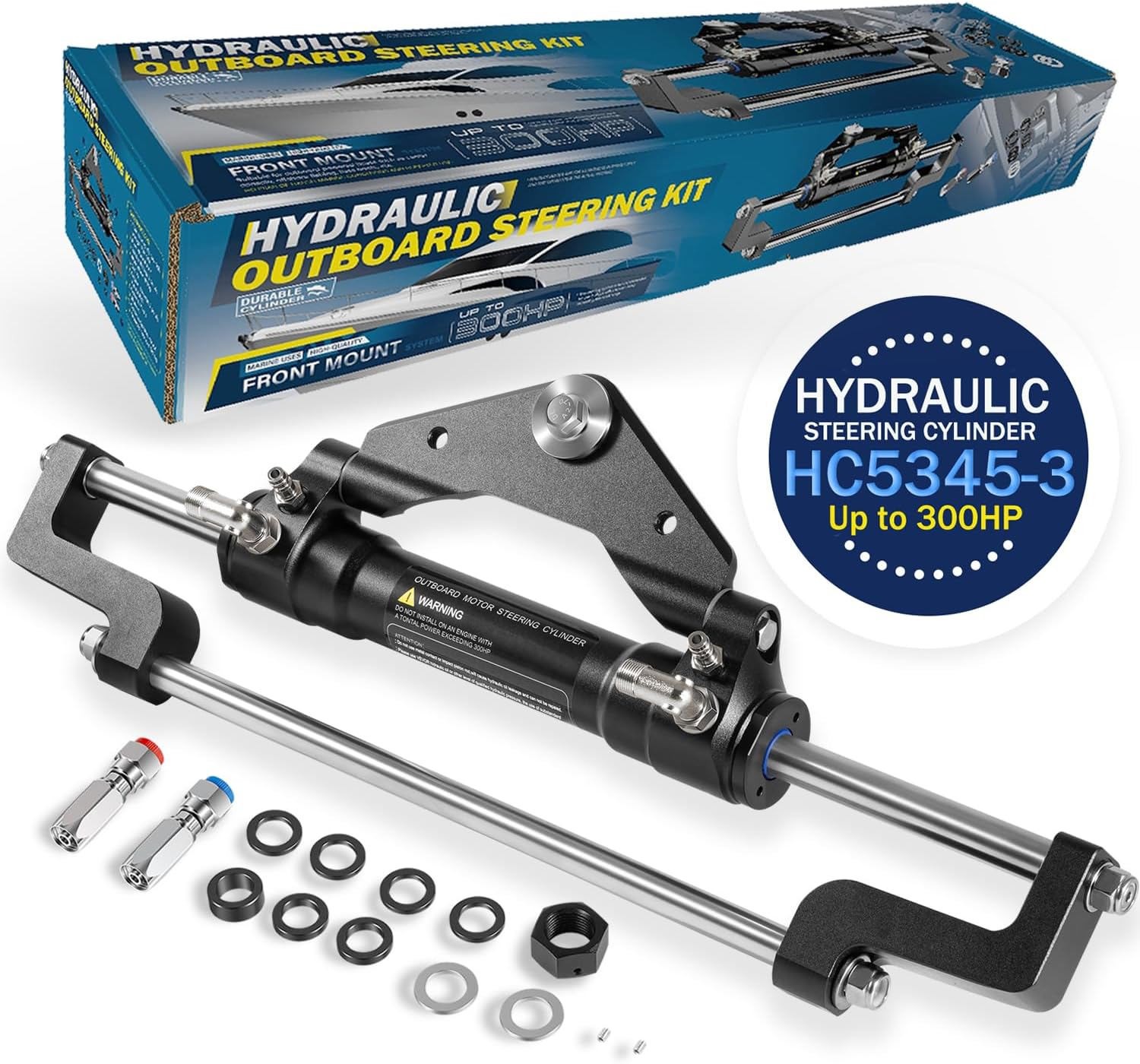

For SeaStar HC5345-3 Ram Marine Boat Outboard 300HP Hydraulic Steering CylinderHC5345-3 Hydraulic Steering Cylinder for Outboard Boats up to 300HP
This HC5345-3 front mount hydraulic steering cylinder is a compatible aftermarket steering component designed for outboard-powered boats up to 300HP. It is suitable for single and twin non-power assisted outboard engines and features a built-in two-way lock valve, positionable stainless steel O-ring (ORB) fittings, an advanced sealing system, and a high-strength aluminum alloy casing for reliable marine steering performance.
Product Fitment
- Model: HC5345-3
- Compatibility: Boats with non-power assisted outboard engines up to 300HP
- Cylinder Type: Front Mount Hydraulic Steering Cylinder
- Application: Single and twin engine boats
- Boat Types: Cruisers, runabouts, center console boats, offshore fishing boats, bass boats, flats boats, and more
Key Features
- Up to 300HP: Designed for compatible outboard-powered boats up to 300HP.
- Front Mount Design: Designed for front-mount installation on compatible non-power assisted outboard engines.
- Two-Way Lock Valve: Built-in two-way locking valve helps eliminate rebound torque during torsion for smooth and stable steering operation.
- 1500PSI Working Pressure: Maximum working pressure of 10.3 MPa (1500 PSI) for high-pressure hydraulic steering applications.
- Advanced Sealing System: Provides superior resistance to repeated compression set and supports reliable performance in harsh marine environments.
- Positionable ORB Fittings: Positionable stainless steel O-ring (ORB) fittings make hose routing easier and provide a secure connection.
- High-Strength Aluminum Alloy: Lightweight casing with resistance to corrosion for long-lasting marine use.
Product Specifications
- Product Name: HC5345-3 Front Mount Hydraulic Outboard Steering Cylinder - Up to 300HP
- Model Number: HC5345-3
- Compatible Reference: Teleflex Marine HC5345-3
- Max Working Pressure: 10.3 MPa (1500 PSI)
- Material: High-Strength Aluminum Alloy
- Seal Type: Advanced Sealing System with superior crush resistance
- Fitting Type: Positionable Stainless Steel O-Ring (ORB) Fittings
- Locking System: Built-In Two-Way Lock Valve
Package Included
- 1 x HC5345-3 Hydraulic Steering Cylinder
Warranty & Support
60-Day Money Back Guarantee | 12-Month Warranty | Friendly Customer Service
