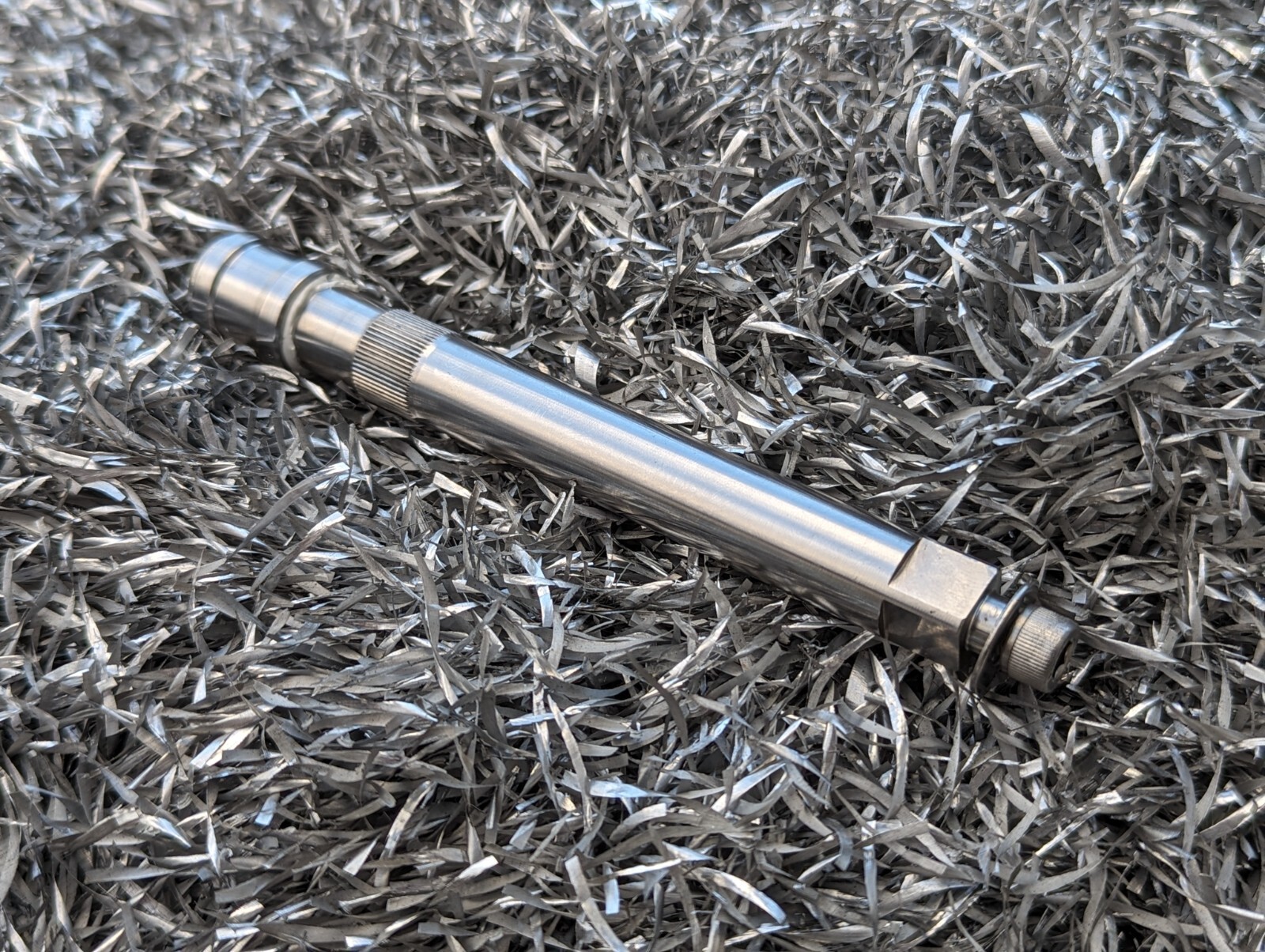

GM Full Size OBS Tool Steel Roller Pin. Gen 3.
These were designed to be the permanent replacement for your stock roller pin. Built extremely heavy-duty for a lifetime of service.
See the features on the diagram below.
Fits: 90s OBS GM Full-Size Vehicles FRONT DOORS (Silverado, Tahoe, Suburban, Full-size van)
Sold Individually, you will need to order two to replace both front doors.
Roller Pin Installation Guide:
Step 1: Remove the door detent spring.
Step 2: Grind or file away the factory staked roller pin head.
Step 3: Punch out the factory roller pin from the hinge plate.
Step 4: Clean the holes where the pin was.
Step 5: Insert your new EnduraPin Roller pin into the holes.
Step 6: Start threading thetop tightening bolt into the body of the roller pin.
Step 7: You may need to gently tap the pin from the bottom with a hammer to get the knurled section into the hinge plate depending on how worn your hinge plate is.
Step 8: Tighten thetop bolt intothe roller pin using a 7/16" and an allen wrench.
Step 9: Re-install your detent spring.
