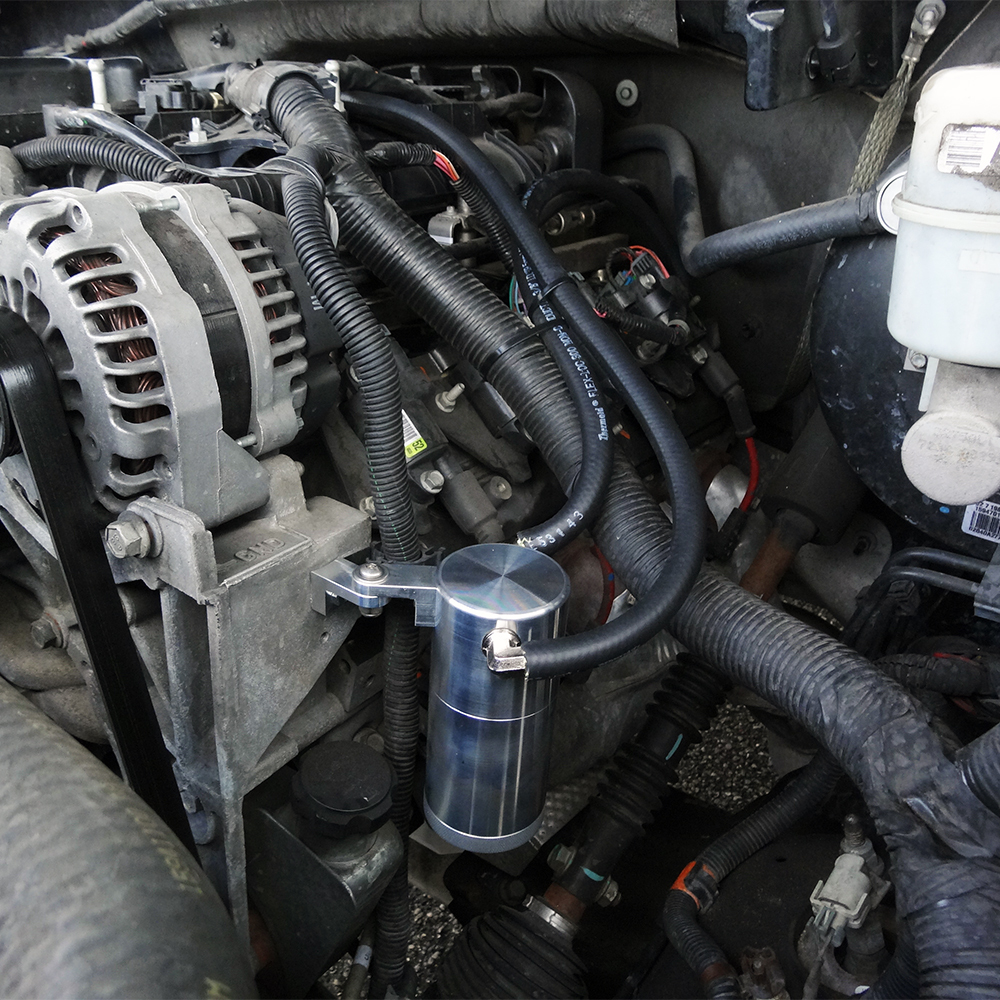

See UPR GM Truck Installation Pictures - Simple Install with instructions below
Items Included
6oz. CapacityUPR Billet Catch CanUPR Mounting BracketUPR H--Flow Nickel Fittings ($20 Upgrade FREE)UPR Patented Catch Can Diffuser Upgrade ($29 Upgrade FREE)
UPR New 4.75 inch tall x 2.5 inch Wide Billet Catch CanUPR Oil Resistan Braided Hose with UPR Billet Hose Ends ($59 Upgrade FREE)UPR New High Flow Internal Design for Maximum Oil ControlUPR Quick Grip easy open easy close design that you lightly snug to lock it closedUPR Improves Fuel Economy, Throttle Response, and Overall Engine PerformanceMost Advanced machining Processes in Billet Technology™ with UPR Billet Catch CansCheck out the UPR Catch Can Installation Instructions section on the UPRproducts Website
What is the problem with your PCV system?
The Positive Crankcase Ventilation (PCV) system is used to recycle the gasses that leak or “blow-by” your engines piston rings and creates a positive pressure in the crankcase. By venting these gasses along with oil mist/vapor from the crankcase and route it back into the intake manifold so it can be burned off.
This is a poor fix from automobile manufacturers because over time the excess oil vapor collects along the inside of the intake tract and forms “sludge”. This leads to a variety of issues including carbon build up, retarded timing, detonation, power loss and even engine failure.
UPR s fix for the PCV system used on many engines for reducing toxic gasses from being released into the atmosphere and eliminating positive crankcase pressure / Blow-By.
What does a UPR Catch Can do?
UPR s Billet Catch Can / oil-air separator will condense and collect the oil vapor before it has any chance to reach the intake tract. As the gas and oil vapor enters UPR s can they pass through a Chambered filtering system that cools the oil vapor and gives it something to adhere to.
Then the oil forms into droplets and collects in the bottom of the UPR Catch Can so that they can later be drained. This is where the additional Chambered filtering system comes into play allowing only the clean air to pass through so it can eliminate unwanted blow-by.
All engines have blow by otherwise there would be no need for a PCV system on your engine. PCV = Positive Crankcase Valve, which eliminates Positive Crankcase Pressure. UPR s Catch Can have become one of the most widely used and recommended cures for just about every application.
The engine size and horsepower level is not relevant to the performance of the UPR Catch Can. UPR s Catch Can have become a cornerstone by improving the Performance and Economy on any vehicle you install it on.
1997-2013 GM Truck Universal Catch Can Installation Instructions
1. Remove the engine cover and locate cleanside connection on manifoldside or top.2. To remove hose you can cut it lengthwise along the plastic fitting and spread it apart.3. You can do the same at the dirty side on the valve cover or the back of the driver cylinder head.4. Now mount the catch can on the side upper mounting hole of the alternator accessory bracket.5. Once the catch can is securely mounted you can now run the hoses to the connection points.6. Then you start your engine to double check that there are no vacuum leaks and everything is set.7. Now your ready to reinstall the factory engine cover and.
Always gentlyclose the catch can when tightening as it's designed for an interference fit with theo-ringotherwise, you will jam the catch can shut and ruin the o-ring. O-rings are a wear item and not coveredby warranty and can be purchased separately with all UPR catch can.For draining you will want to check your catch can within 500 miles for the first 3000 miles to get anideaof how much oil it collects and the frequency it needs to be drained.
Thank you for choosing UPRproducts.
