Steering wheel control Important: Check Installation Size Before PurchaseThe UX7A is designed for compatible Double DIN dashboards within approximately:
- Width: 170–178 mm
- Height: 96–100 mm
- Installation depth: 100 mm
The removable panel design allows the unit to accommodate compatible dashboard openings within this size range.
Please measure your original radio opening before purchase.
Not for Single DIN Dashboards
The UX7A is a Double DIN car stereo.
If your factory radio opening is approximately 178 × 50 mm Single DIN, this model is not suitable as a direct replacement.
For a Single DIN dashboard, please choose a compatible Eonon Single DIN stereo instead.
Installation Kit May Be Required
If your dashboard opening falls outside the 170–178 × 96–100 mm range, a vehicle-specific:
- Double DIN fascia / mounting kit
- Installation frame
- Wiring adapter
may be required.
These installation parts are not included unless specifically stated.
This gives the UX7A flexibility for a wide range of vehicles, but the correct dashboard kit must be selected for your particular make, model and year.
Check Your Factory Wiring Connector
The vehicle's radio wiring should use a compatible ISO standard interface for the most straightforward connection.
If your factory connector is not ISO standard, a suitable vehicle-specific ISO wiring harness adapter is required.
Please check both the dashboard dimensions and wiring connector before ordering.
Wireless Apple CarPlay & Android Auto
Connect a compatible smartphone wirelessly and bring frequently used phone functions directly onto the stereo.
Both wireless and wired Apple CarPlay / Android Auto are supported for compatible:
- Google Maps and navigation apps
- Music and podcasts
- Hands-free calls
- Messages
- Siri
- Google Assistant
Wireless operation means you do not need to plug your phone in every time you drive.
Android 14 + 4GB RAM / 64GB Storage
The UX7A runs Android 14 on an RK3562 quad-core processor (4 × Cortex-A53 up to 2.0GHz) with 4GB RAM and 64GB internal storage.
Use compatible Android apps directly from the stereo for navigation, music and other everyday functions.
Also supported:
- Split-screen multitasking
- OTA firmware updates
- Custom boot logo
- Changeable wallpapers
- 3 built-in UI themes
- 1-second fast boot support
WiFi 6 + Bluetooth 5.4
Built-in WiFi 6 supports both 2.4GHz and 5GHz networks, allowing the UX7A to connect to a smartphone hotspot or another available Wi-Fi source.
Bluetooth 5.4 supports compatible phone and wireless audio connections.
Please note: Built-in 4G LTE is not included. Mobile-network access requires a compatible external 4G dongle.
Built-In GPS Navigation
The integrated GPS receiver allows compatible navigation apps to run directly from the head unit.
You can use:
- Online navigation
- Compatible offline maps
- Navigation while playing music
- Split-screen navigation and media
Downloaded offline maps can also be used without an active mobile-data connection.
48-Band DSP Audio Control
Built-in DSP gives you detailed control over how your car audio system is tuned.
Features include:
- 48-band equalizer
- Custom and preset EQ modes
- HPF / LPF adjustment
- Time alignment
- Subwoofer output
- 5-channel preamp outputs
- 4 RCA audio outputs
- 25W RMS manufacturer-rated power
- Up to 4 × 45W maximum amplifier output
Adjust bass, frequency balance and speaker output to better suit your vehicle and speaker setup.
For additional amplification and tuning, the optional Eonon A304 DSP Amplifier is available separately.
Compact 7" IPS Touchscreen
The 7" 1024 × 600 IPS display is a good choice for drivers who prefer a more conventional Double DIN layout rather than an oversized floating screen.
It provides a clear interface for:
- Navigation
- Music
- Apple CarPlay / Android Auto
- Android apps
- Vehicle media controls
Its compact dimensions can also reduce the risk of blocking nearby air vents, switches or climate controls.
Physical Controls & Volume Knob
The UX7A combines touchscreen operation with convenient physical controls.
A rotary volume knob provides quick, intuitive volume adjustment, while front-mounted controls give easy access to commonly used functions.
This can be particularly useful while driving when you want a familiar tactile control instead of relying entirely on the touchscreen.
Type-C Fast Charging
A front-accessible high-speed Type-C port supports convenient phone charging while travelling.
Supported charging technologies include compatible:
- PD 3.0 / PD 2.0
- PPS
- QC 3.0 / QC 2.0
- FCP / SCP
- AFC
Charging performance depends on the connected device and cable.
Steering Wheel Control Support
The UX7A supports compatible steering wheel controls.
Vehicles using digital / CANBUS steering wheel systems may require an additional vehicle-specific adapter or decoder.
Compatibility depends on the original vehicle electronics.
Camera Support
Add compatible camera equipment for improved visibility when parking or reversing.
The UX7A supports:
- Front camera input
- Rear-view camera input
- Automatic reverse display
- Parking guidelines
Camera compatibility depends on the camera system and vehicle wiring.
Split Screen & Wireless Screen Mirroring
Split-screen multitasking allows compatible functions such as navigation and music to remain visible together.
Wireless screen mirroring is also supported for compatible iOS and Android devices.
Note: Some DRM-protected streaming services may restrict screen mirroring.
AM/FM Radio & Optional DAB+
Use traditional AM/FM radio without relying on mobile data.
For supported regions, DAB+ digital radio can be added using an optional compatible Eonon DAB+ module.
Media & Connections
Supported connections include:
- 3 × USB inputs
- Front-accessible USB connection
- Type-C fast-charging port
- 2 × audio inputs
- 4 × RCA audio outputs
- 5-channel preamp output
- Dedicated subwoofer preamp output
- 1 × video input
- No video output
The system supports common formats including MP3, FLAC, AAC, MP4, MKV, JPEG and PNG, with up to 1080P video decoding.
Optional Eonon Accessories
A100 Dash Camera
Add compatible front driving recording.
A0125 / A0127 Cameras
Add compatible parking or reversing camera functionality.
V0056 Bluetooth OBD2 Scanner
View supported real-time vehicle diagnostic information through compatible Android apps.
A503/DX2/DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.
A304 DSP Digital Amplifier
Additional amplification and tuning for compatible upgraded audio systems.
Optional accessories are sold separately unless included in the selected package.
Why Choose the UX7A?
The UX7A is designed for drivers who want modern infotainment without adding an oversized screen to the dashboard.
It combines a compact 7" Double DIN design, physical volume control, wireless CarPlay and Android Auto, Android 14 apps, GPS navigation, WiFi 6 and detailed DSP audio adjustment in one versatile universal head unit.
Its adjustable panel fit also gives installers more flexibility across compatible Double DIN dashboard openings.
Before Ordering, Please Check
1. Confirm your vehicle has a Double DIN dashboard — not a standard Single DIN opening.
2. Measure the opening: direct panel fit supports approximately 170–178 mm width × 96–100 mm height.
3. If the opening is outside this range, an additional Double DIN mounting kit may be required.
4. Check whether your factory wiring uses a compatible ISO connector; otherwise an ISO wiring harness adapter is required.
5. Digital / CANBUS steering wheel controls may require an additional adapter.
Checking the dashboard opening and factory wiring connector before purchase is the most important step in confirming UX7A fitment.
āSpecification
- Installation size: 178mm(Width) * 100mm(Depth) * 100mm(Height)
- Panel size: 178mm(Width) * 100mm(Height) -170mm(Width) * 96mm(Height)
- Applicable Car Models: Universal 2 Din Car Radio
- Operation system: Android 14
- OTA Firmware Update: Yes
- Processor: RK3562
- CPU Architecture: 4-core([email protected])
- RAM: 4GB
- Storage: 64GB
- Display: 7" IPS Touchscreen
- Resolution: 1024*600
- Operating voltage: DC12V
- Physical button/knob: Yes
- CarPlay: Wired & Wireless
- Android Auto: Wired & Wireless
- Split-screen multitasking: Yes
- Adjustable viewing angle: No
- Screen mirroring: Yes
- 1s fast boot: Yes
- Steering wheel controls: Yes
- Key button color: Variable
- Wi-Fi: Support 2.4G/5G
- 4G feature: No, 4G dongle needed
- Custom boot logo & changeable wallpapers: Yes
- Built-in UI themes: 3
- Built-in DSP: Yes
- Built-in power amplifier: 4-channel audio output and 1 subwoofer audio output
- EQ bands: 48
- EQ modes: Custom Standard Popular Rock Classical Jazz
- HPF/LPF adjustment: Yes
- Video input: 1
- Video output: No
- Audio input: 2
- Audio output: 4 RCA
- AUX input: No
- USB input: 3
- RMS power (manufacturer): 25W
- Max amplifier output: 4*45W
- Preamp outputs: 5-channel
- Sub preamp outputs: Yes
- Preamp voltage: 1.0V
- Video Formats: Supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB, and more; supports 1080P video decoding
- Audio Formats: Supports MP3, WMA, WAV, OGG, AAC, FLAC, APE, and more; online audio playback supported
- Image Formats: Supports JPEG, BMP, PNG, and more

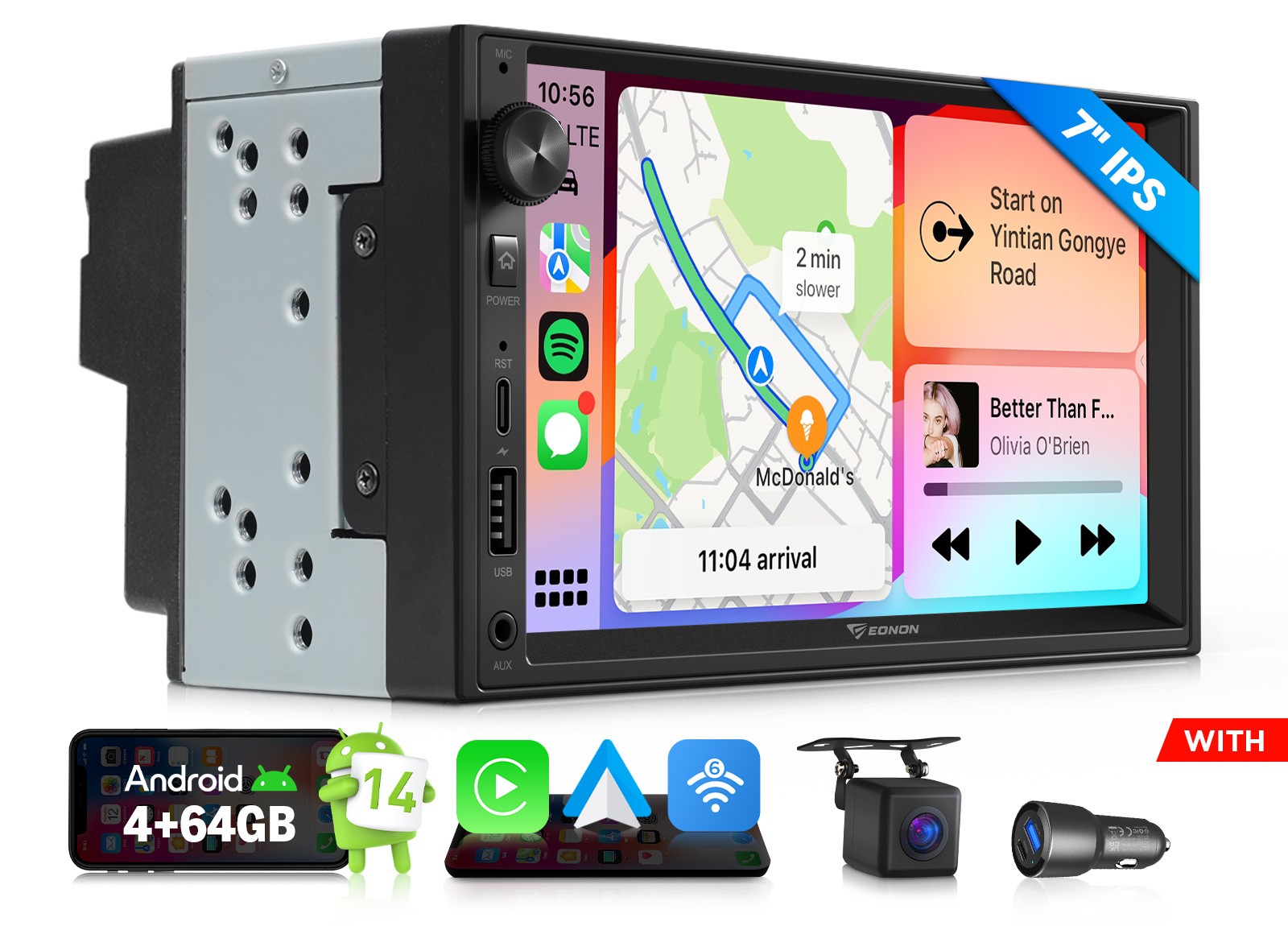

šEonon UX7A 7" Android 14 Double DIN Car Stereo
