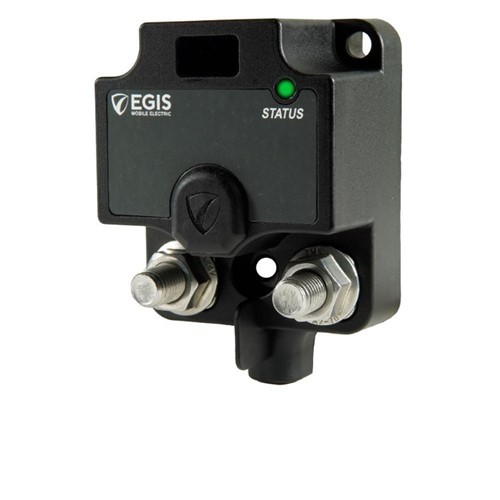

EGIS XD Single Flex 2 Relay/ACR No Knobs 6P DTM C
Model: 8810-1600
- LED STATUS DISPLAY: Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED
- 40 CIRCUIT LABEL SHEET INCLUDED: Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.
- PROTECTIVE COVER INCLUDED: Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
- STAINLESS HARDWARE: Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.
- PROGRAMMABLE: Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.
- SMALLER FOOTPRINT: XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.
- INTEGRATED VENT: High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.
Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.
90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar CONTINUOUS CURRENT (AMPS)500MAX CRANKING CURRENT (AMPS)1500MECHANICAL SWITCHING LIFE1,000,000 CyclesVOLTAGE RANGE (V DC)8 - 36OFF-STATE CURRENT DRAW (mA)1.3STATE CHANGE CURRENT5A @ 12 Vdc / 3A @ 24 Vdc
