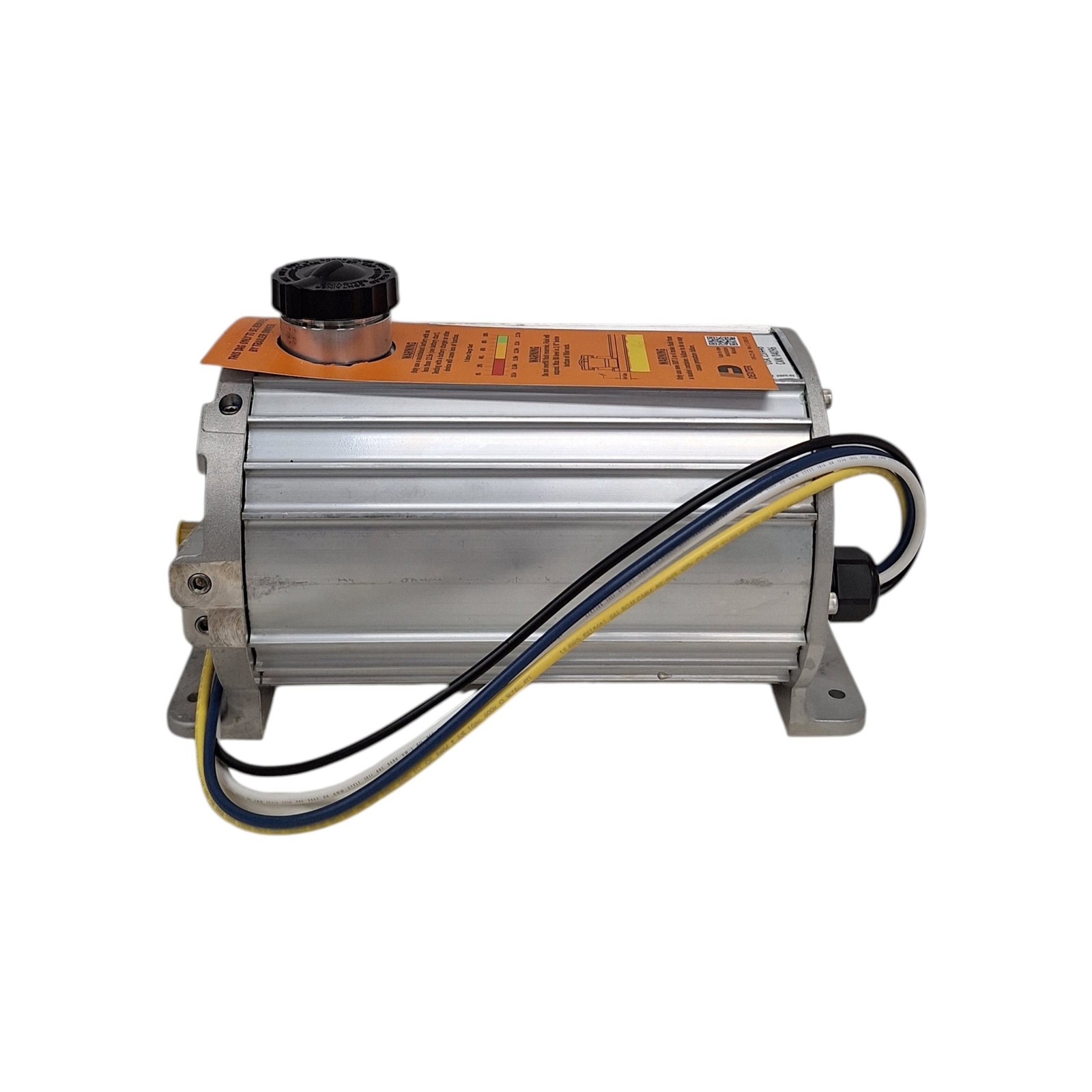

Dexter Electric Over Hydraulic Brake Actuator
1,600 PSI · Disc Brake Rated · OEM Grade
Dexter Part Number: K71-651-00
What This Actuator Is
This is a Dexter Electric Over Hydraulic (EoH) brake actuator designed to
convert an in-cab electric brake controller signal into controlled hydraulic
pressure for trailer disc brake systems.
With a maximum output of 1,600 PSI, this actuator is intended for
heavy-duty trailers where precise, proportional braking and hydraulic disc
brake performance are required.
Why the 1,600 PSI Dexter Actuator
- Designed specifically for hydraulic disc brake systems
- OEM-grade Dexter electronics and pump assembly
- Solid-state design for consistent proportional braking
- DOT-compliant solution used by manufacturers and professional installers
Brake Controller Compatibility
This actuator requires an Electric-Over-Hydraulic compatible brake controller.
It will not function correctly with standard time-delay or non-EoH controllers.
Works With
Proportional controllers specifically rated for EoH systems
Does NOT Work With
Standard electric brake controllers not labeled EoH-compatible
Breakaway & Power Requirements
- Requires a minimum 9Ah breakaway battery (not included)
- Dedicated breakaway circuit required for proper emergency operation
- Battery capacity is critical for maintaining hydraulic pressure during breakaway events
Operating Behavior (Important)
This actuator enters a low-power sleep mode after a period of inactivity.
When braking input is applied again, the unit wakes automatically and resumes
normal operation. This behavior is intentional and part of the unit’s
power-management design.
Technical Specifications
Maximum Pressure
1,600 PSI
Brake Type
Hydraulic Disc Brakes
Electrical System
12V DC, 4-wire EoH logic
Brake Fluid
DOT 3 / DOT 4
Hydraulic Port
Industry-standard trailer brake fitting
Installer Notes
- Controller must be configured for Electric Over Hydraulic mode
- Proper bleeding of the hydraulic system is required after installation
- Verify wiring polarity and grounding before initial operation
View More Dexter Brake Components
Confirm system compatibility before ordering. This component is intended
for experienced installers and properly equipped trailers.
