BMW 4 Series F32 F33 F36 M3 F80 M4 F82 F83 Ikon Style Dual Color U-Bar Angel Eye LED Headlights — 2014–2020 · White · Yellow DRL · 6000LM · 36W · 6000K · DOT SAE ISO Certified · 1-Year Warranty · Direct Replacement
Every F32 F33 and F36 on the road right now is running the same factory front end BMW shipped it with. This kit was engineered for the owner who looked at that front end and decided it was capable of something the factory never offered — a front end that references BMW\'s iconic angel eye heritage through the Ikon style U-bar architecture with a modern LED precision that no factory specification at any trim level has ever matched.
The GlobalPace Ikon Style Dual Color U-Bar Angel Eye LED Headlight Kit is one of the most premium front end upgrades available for the 2014–2020 BMW 4 Series F32 F33 F36 and M4 F82 F83 — trusted by 4 Series owners across the US who wanted a front end character that reads as deliberately considered and completely unlike anything BMW offered in any specification. Clear lens. Black housing. Bold U-shaped white LED halo arcs framing each projector bowl in the iconic Ikon style architecture. Chrome trim piece running the complete housing top edge beneath the clear lens. Switchable white and yellow DRL from the factory high beam stalk. And a startup animation that sweeps across the complete architecture on every ignition cycle.
On a Sapphire Black or Carbon Black F32 the Ikon style U-bar halo arcs through a clear lens against dark paint read as a factory-specced front end from a performance division BMW kept entirely to themselves. On an Alpine White or Mineral White F32 the yellow DRL mode through the Ikon U-bar architecture creates the European track-inspired front end character that BMW\'s own engineers have used on performance concepts — and never offered at any trim level or any price point.
Ships within 1–3 business days while stock lasts.
CONNECTOR AVAILABILITY — MESSAGE US BEFORE ORDERING
This kit covers all four factory headlight configurations across the complete 2014–2020 production run — 6-pin halogen Pre-LCI, 8-pin xenon Pre-LCI, 9-pin LED LCI, and 10-pin M3/M4 specific. Connector versions go in and out of stock regularly. Please message us with your VIN before ordering to confirm your specific version is currently available. Not sure which version you need? Send us your VIN and we confirm the correct version before you commit. No guesswork. No returns.
WHAT THIS KIT IS — AND WHAT IT REPLACES
This is a direct replacement for the complete headlight assemblies on the 2014–2020 BMW 4 Series F32 Coupe F33 Convertible F36 Gran Coupe and M4 F82 F83 — the full units that mount at the front corners of the car and deliver low beam high beam DRL and turn signal functions. These replace your entire OEM headlight assembly on both sides. Same mounting points. Same connectors. Zero modification to the factory harness or body required.
THE IKON STYLE U-BAR ANGEL EYE ARCHITECTURE — THE ELEMENT THAT DEFINES THIS KIT
The Ikon style U-bar architecture is the design language that makes this kit immediately and unmistakably identifiable from every other headlight available for the F32 platform. The bold U-shaped white LED halo arc traces the lower perimeter of each projector bowl in a clean precise U-shape — framing each projector with a vivid white architectural border that references BMW\'s iconic angel eye heritage with a modern LED precision the factory never delivered on this chassis.
Two projector bowls per housing each individually framed by their own Ikon U-bar halo arc — a four-arc composition across both headlight assemblies that creates a front end presence immediately identifiable as premium and deliberate from any following distance at any hour of the day.
Through the clear lens in standby both U-bar arcs are present as dark precise architectural elements against the black housing interior — clean geometric halo forms that create a premium daytime aesthetic before any LED has been activated. The chrome trim piece running the complete housing top edge adds a continuous reflective border above the Ikon halo composition — catching ambient light as a precise chrome line that makes the F32 housing profile read as architecturally framed and premium before a single LED fires.
On activation 6,000 lumens of 36W 6000K output fires simultaneously across all four Ikon U-bar arcs — crisp bright white halo forms illuminating as a vivid unified front end composition that reads as extraordinary at every following distance.
THE CHROME TOP TRIM — THE PREMIUM DETAIL THAT FRAMES EVERYTHING
The chrome trim piece running the complete housing top edge beneath the clear lens is the architectural framing element that elevates the Ikon style architecture from a premium headlight to a composed and complete front end statement. A continuous polished chrome line runs the full horizontal width of the housing top — catching ambient light in daylight as a precise reflective border above the Ikon U-bar halo composition and creating a layered architectural depth that reads as genuinely factory-premium specification from any following distance.
After dark the chrome trim reflects the vivid white and yellow U-bar output back across the housing face — amplifying the Ikon halo architecture and creating a three-element front lighting composition of vivid U-bar arcs vivid projector output and continuous chrome highlight that reads as extraordinary from every following distance.
THE DUAL COLOR DRL SYSTEM — WHITE · YELLOW ON DEMAND
Two distinct DRL modes. One headlight kit. Zero additional hardware required.
The color switching system is activated entirely through the factory high beam stalk — no apps no remotes no Bluetooth modules no coding session no OBDII dongle no wiring tap of any kind. The sequence is immediate and the output is vivid in every mode through the clear lens at every hour.
▸ 5 high beam flashes — DRL switches to crisp clean white — the daily precision character through all four Ikon U-bar arcs simultaneously
▸ 6 high beam flashes — DRL switches to warm yellow — track presence fog visibility and the European aesthetic the 4 Series was always built to carry
The color holds until you switch it. Drive it white for the daily commute. Switch to yellow for the track day or the mountain road. The front end character is yours to set at every ignition cycle — something no factory headlight on this chassis has ever offered at any trim level or any price point.

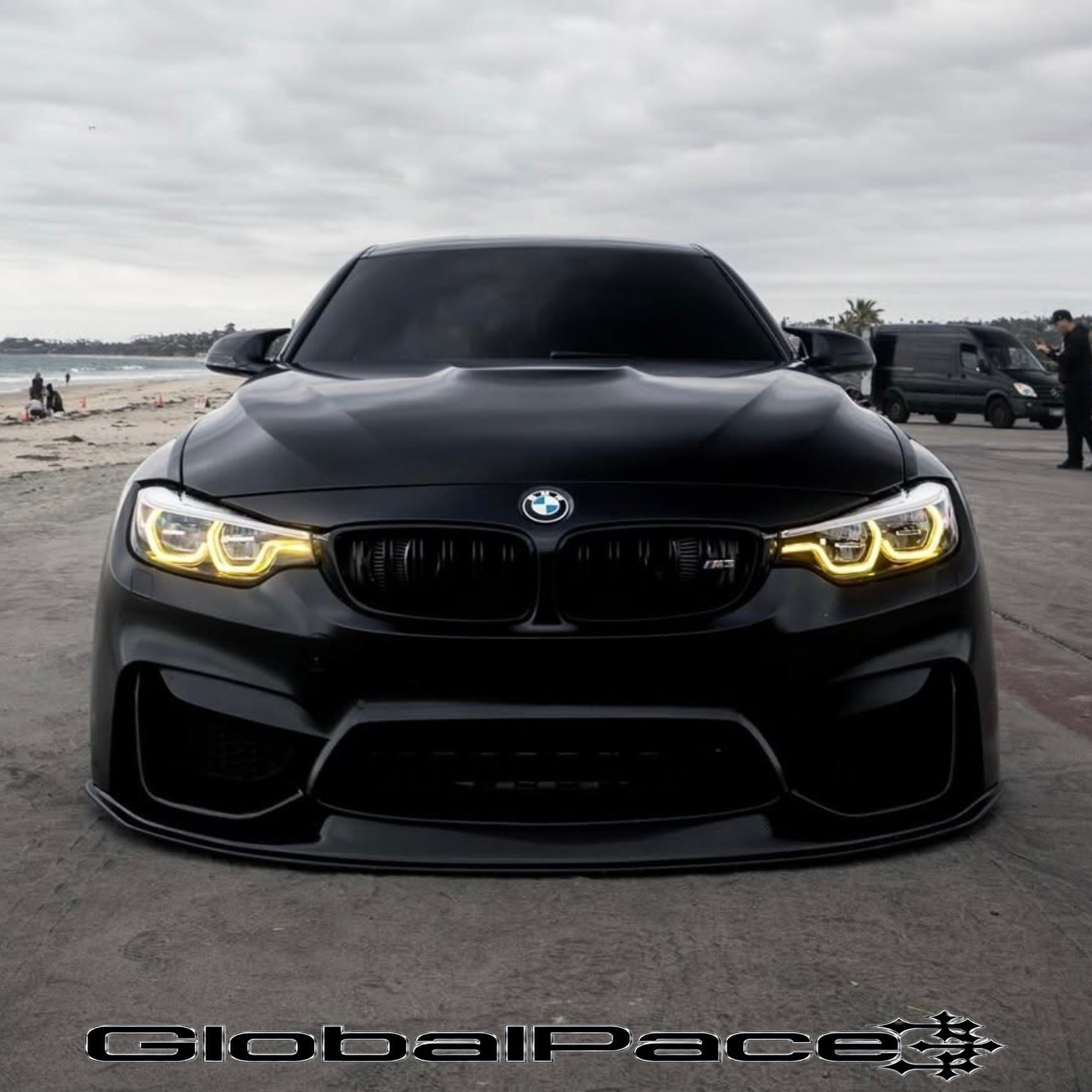

THE YELLOW MODE — THE EUROPEAN AESTHETIC THE F32 DESERVED
Six flashes. Warm yellow Ikon U-bar halo output firing through all four arcs simultaneously through a clear lens over a black housing interior with chrome top trim — the front end character that references the European rally and touring car aesthetic that BMW\'s own engineers have long used on performance concepts. Yellow halo arcs through the Ikon U-bar architecture on a Carbon Black or Sapphire Black F32 creates a front end that reads as immediately distinctive from every other 4 Series in traffic. Six flashes from the factory stalk — no hardware no coding no compromise.
THE STARTUP ANIMATION — THE MOMENT THAT DEFINES EVERY DRIVE
The startup animation fires on every ignition cycle — sweeping across the complete Ikon U-bar architecture in a flowing progressive sequence before settling into your chosen DRL color. An event that plays every single time the F32 F33 F36 or M4 comes to life. A front end moment that every person near the car when it starts will notice remember and ask about.
WHICH VERSION DO I NEED — FOUR CONNECTOR OPTIONS EXPLAINED
This kit covers all four factory headlight configurations across the complete 2014–2020 production run:
▸ 6-pin — Pre-LCI 2014–2016 factory halogen equipped F32 F33 F36
▸ 8-pin — Pre-LCI 2014–2016 factory xenon bi-xenon equipped F32 F33 F36
▸ 9-pin — LCI 2017–2020 factory LED equipped F32 F33 F36
▸ 10-pin — F80 M3 · F82 F83 M4 2014–2020 all configurations
Connector versions go in and out of stock regularly — message us with your VIN before ordering to confirm your specific version is currently available. No guesswork. No returns.
FREQUENTLY ASKED QUESTIONS
How do I switch between white and yellow DRL?
Using the factory high beam stalk — no apps no coding no additional hardware required. Five flashes for white. Six flashes for yellow. The color holds until you switch it again.
How do I know which connector version I need?
This kit covers all four configurations across the full 2014–2020 production run. Send us your VIN before ordering and we confirm the correct version for your exact build — and confirm it\'s currently in stock before you commit. No guesswork. No returns.
Which connector versions are currently in stock?
Connector versions go in and out of stock regularly. Message us with your VIN before ordering and we confirm current availability for your specific version right away.
Does this fit both Pre-LCI and LCI versions?
Yes — all four connector versions cover the complete 2014–2020 production run including Pre-LCI 2014–2016 halogen and xenon and LCI 2017–2020 LED. Confirm your factory headlight type and we handle the rest.
Is there a sequential turn signal?
This kit features a static amber turn signal flash — not sequential. The startup animation sweeps across the Ikon U-bar architecture on ignition but the turn signal activates as a static flash on every indication.
Does this fit the M3 F80?
Yes — the 10-pin version fits the F80 M3 Sedan 2014–2018. Message us to confirm current 10-pin availability before ordering.
Does this fit the F30 3 Series?
No. This kit is engineered specifically for the F32 Coupe F33 Convertible F36 Gran Coupe F82 F83 M4 and F80 M3 only. It does not fit the F30 F31 3 Series sedan or wagon in any configuration.
Will this trigger a check control message?
Most installations complete without any coding or errors. On some build configurations a check control warning may appear — resolved quickly via BimmerCode or any BMW-compatible OBDII tool in under five minutes. Message us before initiating any return and we walk you through it in one exchange.
What if I have an issue after installation?
Message us through before initiating any return. The large majority of installation questions on this platform are resolved within one message exchange.
PROFESSIONAL INSTALLATION STEPS
01 — Disconnect the negative battery terminal and wait 60 seconds before beginning any work on the lighting circuit.
02 — Open the hood and locate the headlight assembly retaining bolts and clips. Remove any front fascia trim clips required for access on your specific body style.
03 — Disconnect the factory wiring harness connectors — low beam high beam DRL and turn signal — by pressing the release tab firmly on each plug before pulling.
04 — Remove the OEM assembly and test-fit the new headlight before final mounting. Reconnect all harness connectors and temporarily reconnect the battery to verify all functions — dual color DRL switching low beam high beam turn signal and startup animation — before securing any hardware.
05 — Once all functions are confirmed secure all mounting hardware to factory torque specification and reconnect the battery for final check.
06 — Professional installation by a licensed automotive technician is strongly recommended if you are not comfortable working directly with vehicle electrical systems.
LIGHT FUNCTIONS
▸ Daytime Running / DRL
Dual color switchable white · yellow — 5 flashes white · 6 flashes yellow — activated via factory high beam stalk — default output Cold White 6000K — zero additional hardware required — fires simultaneously across all four Ikon U-bar arcs
▸ Turn Signal
Static amber flash activation on every indication — road-legal and precise
▸ Low Beam
Dual projector focused output for precise road illumination in every condition at every speed
▸ High Beam
Full dual projector output for maximum road visibility at extended distances
▸ Startup Animation
Progressive sweep across the complete Ikon U-bar architecture — on every ignition cycle settling into your chosen DRL color
FEATURES
▸ Ikon Style Dual Color DRL System
White · yellow switchable via factory high beam stalk — 5 flashes white · 6 flashes yellow — zero hardware zero coding zero modifications
▸ Ikon Style U-shaped angel eye LED halo arcs
Bold U-bar white LED form framing each projector bowl — four arcs across both assemblies — vivid precise and architecturally premium
▸ Chrome top trim piece
Continuous polished chrome line running the complete housing top edge beneath the clear lens — reflective architectural frame visible at every hour
▸ Clear lens
Full unfiltered display of both Ikon U-bar arcs chrome trim and all internal elements at every hour
▸ Black housing interior
Maximum contrast frame making every element of the Ikon U-bar architecture read with full precision and depth
▸ Dual projector bowls
Two focused projector lenses per housing — precise low and high beam output in every driving condition
▸ Progressive startup animation
Full sweep across the complete Ikon U-bar architecture — on every ignition cycle
▸ Four connector versions available
6-pin halogen · 8-pin xenon · 9-pin LCI LED · 10-pin M3/M4 — connector versions go in and out of stock — message us with your VIN to confirm current availability before ordering
▸ Fits Pre-LCI 2014–2016 and LCI 2017–2020
Full production run coverage — correct version ships based on your factory headlight type
▸ DOT · SAE · ISO Certified
Road-legal across all 50 states and internationally quality-verified
▸ 1-Year manufacturer warranty
Backed by GlobalPace — contact us before initiating any return
▸ Direct OEM replacement
Zero drilling zero cutting zero modifications required
▸ Left and right assembly included
Everything in one box ready to install
▸ 100% waterproof sealed construction
Engineered for all seasons all climates all conditions
▸ Premium ABS/PC/PMMA tri-layer construction
Durable impact-resistant built for longevity
▸ Every unit individually inspected and quality verified before dispatch from our facility
OEM PART NUMBERS — SUPERSEDED BY THIS KIT
Pre-LCI 2014–2016 — Halogen
▸ Left / Driver — 63117377841
▸ Right / Passenger — 63117377842
▸ Partslink — BM2502183 · BM2503183
Pre-LCI 2014–2016 — Xenon / Bi-Xenon
▸ Left / Driver — 63117377843
▸ Right / Passenger — 63117377844
▸ Partslink — BM2502184 · BM2503184
Pre-LCI 2014–2016 — Full LED Adaptive
▸ Left / Driver — 63117377855
▸ Right / Passenger — 63117377856
▸ Partslink — BM2502185 · BM2503185
LCI 2017–2020 — Full LED
▸ Left / Driver — 63118738705
▸ Right / Passenger — 63118738706
▸ Partslink — BM2502194 · BM2503194
LCI 2017–2020 — Xenon
▸ Left / Driver — 63117410787
▸ Right / Passenger — 63117410788
▸ Partslink — BM2502191 · BM2503191
F80 M3 / F82 F83 M4
▸ Left / Driver — 63118738701
▸ Right / Passenger — 63118738702
▸ Partslink — BM2502192 · BM2503192
Superseded
▸ 7377841 · 7377842 · 7377843 · 7377844
▸ 7377855 · 7377856
▸ 8738705 · 8738706
▸ 7410787 · 7410788
▸ 8738701 · 8738702
▸ 63117387541 · 63117387542
▸ 63117387543 · 63117387544
Does NOT fit: G22 G23 G26 2021+ 4 Series · G82 G83 M4 2021+ · F30 F31 3 Series · Any non-4 Series chassis
Connector versions go in and out of stock regularly — message us with your VIN before ordering to confirm your specific version is currently available. No guesswork. No returns.
TOTAL ITEM DIMENSIONS AND WEIGHT
Total Weight: ~18–22 lbs · Length: ~26–28 inches · Width: ~22–24 inches · Height: ~10–12 inches
WHAT\'S IN THE BOX
▸ Left headlight assembly
▸ Right headlight assembly
▸ Mounting hardware included
▸ User manual included
SHIPPING & WARRANTY
Ships within 1–3 business days while stock lasts. Backed by GlobalPace\'s 1-year manufacturer warranty. Every unit individually inspected and quality verified before dispatch from our facility. Message us through before initiating any return — every installation question on this platform is resolved within one exchange.
6,000 lumens. 36 watts. 6000K. Clear lens over black housing. Ikon style bold U-shaped white LED halo arcs framing each projector bowl — four arcs across both assemblies vivid precise and architecturally commanding. Chrome top trim piece running the complete housing top edge beneath the clear lens. White and yellow DRL switchable from the factory high beam stalk on every drive — five flashes white six flashes yellow. Progressive startup animation sweeping across the complete Ikon U-bar architecture on every ignition cycle. Four connector versions covering halogen xenon LED LCI and M3/M4 configurations across the full 2014–2020 production run — connector versions go in and out of stock, message us with your VIN before ordering to confirm current availability. Direct OEM replacement with zero modifications required. DOT SAE and ISO certified. One year of warranty coverage backed by GlobalPace.
The 4 Series was BMW\'s statement that a compact coupe could be genuinely extraordinary. The factory gave it the front end to match. This kit gives that front end the Ikon style U-bar angel eye architecture BMW\'s design heritage was built on — reimagined with modern LED precision two switchable colors and a chrome top trim detail that reads as purpose-built from the first moment you see it.
