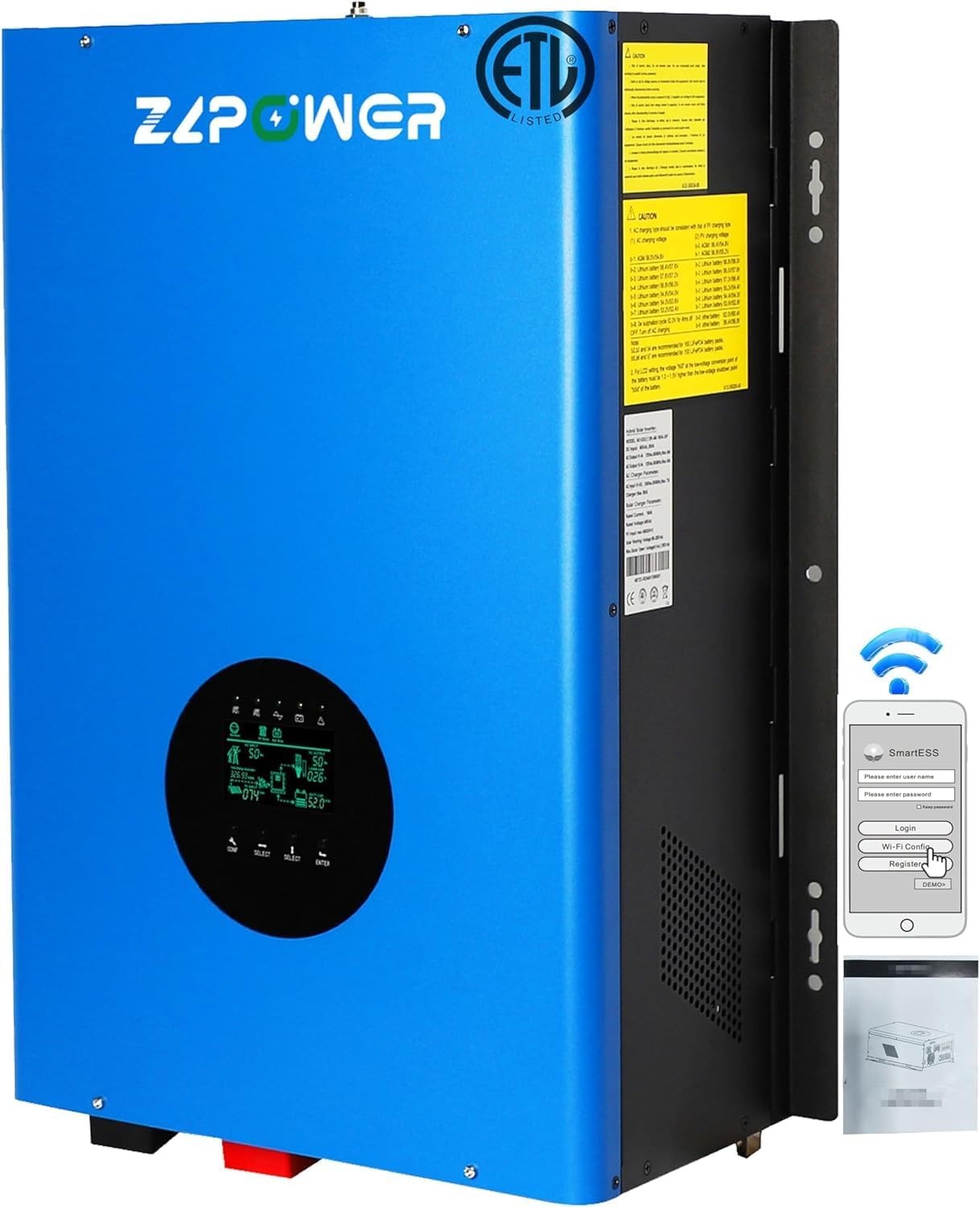

8KW 48V Solar Inverter Hybird 110V/220V Split Phase 200A Controller Peak 24KW For Sale - New and Used

Product Description

About ZLPOWER

GS Series Inverter

Important Safety Warning

GS Series hybrid Inverter is designed to serve as a backup power supply for AC loads.

8KW split phase pure sine inverter charger DC 48V AC 240V input AC output 120V/240V

• Automatic Generator Starting (AGS)when low battery voltage or no utility.
• Support 2x80A MPPT Solar Charger Controller.
• 8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries）.
• 5 stages adjustable AC charging current. AC charging also can be closed.
• Powerful Charge Rate Up to 240Amp, Selectable From 0%-100%.
• Built-in transfer switch and battery charge, backup or off grid power solutions.
• AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration.
• 4-step Intelligent Battery Charging, PFC for Charger.
• Smart fan adjustment(The fan automatically adjusts the wind speed according to the ambient temperature).
• Remote control line can be connected (without accessories, optional accessories if needed).

2. Wireless Router Connection

2.1 Download APP.Scan the QR Code and download the APP

2.2 Connect Wi-Fi Datalogger

2.3 Network Setting

3. Create Account And Add Datalogger

3.1 Create Account

3.2 Add Datalogger

Earthing(ABYC standard)

• Inverter mode: the neutral and the earth joined
• Line mode: the neutral and the earth separated
• Use a Relay to realize the function.

LCD OPERATION

• LCD Panel and Configuration Switch

Smart fan Adjustment

• The fan automatically adjusts the wind speed according to the ambient temperature

Low Frequency Split Phase

• 48 VDC input, 240V input VAC to 120/240V AC split phase output This low frequency unit is a combination of an DC to AC power inverter, battery charger and AC auto-transfer switch into one complete system

Inverter Output Specifications

• Continuous Output Power: 8000 Watts
• Surge Rating: 24000 Watts
• Output Wave Form: Pure Sine Wave
• Output Voltage: 120/240Vac
• Nominal Efficiency: 90% (Peak)
• Line Mode Efficiency: >99%
• Output Frequency: 50Hz / 60Hz ± 0.3Hz
• Typical Transfer Time: 10ms

Inverter Input Specifications

• Nominal DC Input Voltage: 48.0Vdc
• Low Battery Alarm: 42.0Vdc-44.0Vdc
• Low battery Trip: 40.0Vdc-42.0Vdc
• High Voltage Shut-down: 64.0Vdc
• Low battery Shut-down Recovery:44.0 ± 0.8Vdc
• High battery Shut-down Recovery:62.0 ± 0.8Vdc
• Idle Consumption: 23 Watts
• Nominal Input Frequency:50Hz / 60Hz (Auto detection)

Charger Specifications

• Output Voltage: Based on the AC output voltage gear you set
• Battery Initial Voltage for Start Up: 40-62.8V

Nominal Charge Current:

• 12VDC model: Max 90A
• 24VDC model: Max 70A
• 48VDC model: Max 80A

Over Charge Protection:

• Bat. V ≥15.5Vdc, Fault, Buzzer alarm for 12Vdc
• Bat. V ≥31.0Vdc, Fault, Buzzer alarm for 24Vdc
• Bat. V ≥61.0Vdc, Fault, Buzzer alarm for 48Vdc

---
