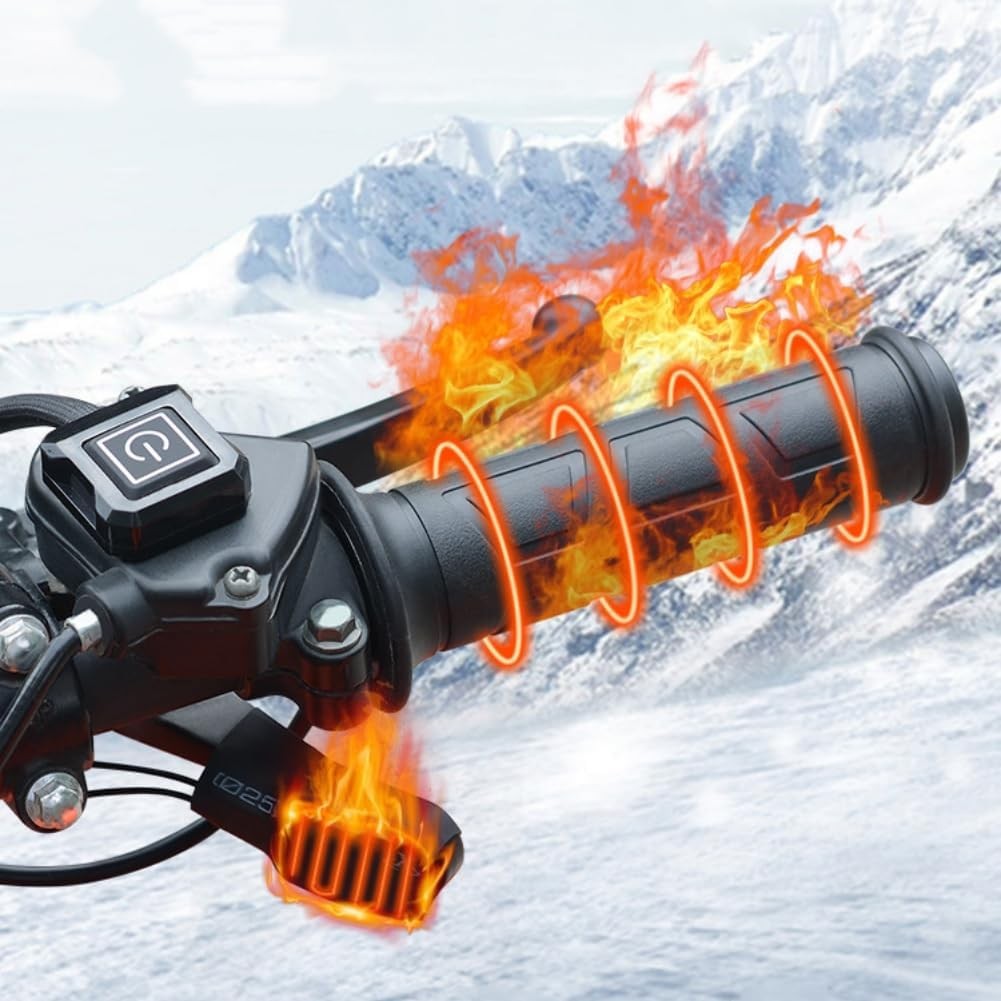

Features: 1. Durable and Weather-resistant Design: The motorcycle hand heated grips are crafted with an integrated design to prevent rain and dust from entering and corroding the internal components, ensuring a longer lifespan and safer use. 2. Smart Temperature Control: The ATV heated grip features a built-in smart temperature control chip with three adjustable settings, allowing you to easily adjust the temperature according to your needs for a safer and more comfortable ride. 3. Universal Fit for ATVs: Designed with a 12V input voltage and a 22mm universal handlebar diameter, these hand warmer grips are perfect for most ATVs without a throttle, including beach vehicles. 4. Convenient and Aesthetic Design: The scooter bar hand warmer comes with a sealable or open-end design, allowing you to install handlebar end caps or other decorative accessories without any hassle.It also includes a standby mode that maintains a constant temperature of around 50 degrees Celsius for added convenience. 5. Safety Features and Thumb Heater: The ATV handlebar heater includes a 5A fuse with a waterproof cover to automatically cut off power in case of vehicle issues, preventing accidents.Additionally, it features a thumb heater to keep your thumb warm while pressing the throttle button.
Specification: Origin: Mainland China Product material: nitrile rubber Product color: black Handle length: Left hand handle: 125mm;right hand handle: 125mm Suitable pipe diameter: 22mm Input voltage: DC12V Handle power: First gear red: 31W;Second gear blue: 23W;Third gear green: 14W Thumb power: First gear red: 1.6W;second gear blue: 1.2W;third gear green: 0.8W Working ring mirror temperature: -20°C--+50°C Handle type: sealable, portable, electric heating handle Switch type: aluminum alloy multi-speed adjustable temperature control switch Applicable models: 12V ATV ATV with a handle diameter of 22mm
Operation instructions: 1.Power on: red light, blue light, green light each flashes once and then goes off 2.Working status: The indicator light is always on (high-end: red light is always on, mid-range: blue light is always on, low-end: green light is always on) 3.Press and hold the switch button for 3 seconds: enter standby state or turn off 4.Click the switch button: switch gears How to use the switch: Press and hold for 3 seconds to turn on, the red breathing light will enter the standby state, and it will automatically turn into a blue mid-range after reaching a certain temperature;tap to change to a blue light, the temperature is medium temperature;tap twice to turn green, the temperature is the lowest;press three times to red, the third-gear high temperature;press and hold for 3 seconds to turn off
Installation instructions: 1.First remove the original handlebar with tools, and then clean up the handlebar 2.Then wet the inner holes with soapy water with the left and right hands of the product, and install the left and right hands on the handlebar separately.The twisting amplitude should not be too large during installation. 3.Put the finger heater on the ATV throttle button, put it on with a heat-shrinkable sleeve, bake the heat-shrinkable sleeve with a hot air gun or lighter, shrink the heat-shrinkable sleeve to a suitable size, and fix the thumb heater on the throttle button. 4.When connecting to the power cord, the red wire of the product is connected to the positive electrode of the car\'s power supply, and the black wire of the product is connected to the negative electrode of the car\'s power supply.After confirming the positive and negative electrodes, connect it again, do not connect the reverse. 5.Because the switch of this product has two fixing methods (rearview mirror fixing, glue fixing), the aluminum alloy switch can be fixed to the iron bracket with small screws, and then the iron bracket is fixed to the base of the rearview mirror and tightened;or directly use film to stick to the back of the aluminum alloy switch, and then stick the glue to the car to fix it in a suitable position.
Notes: When installing the handle, don\'t twist the handle too much.Excessive twisting will cause the electric heating wire to shift.
Wiring method: 1.Connected to the positive and negative positions of the battery, the red wire is connected to the positive electrode of the battery+, and the black wire is connected to the negative electrode of the battery- 2.Connected to the positive and negative positions of the electric door lock, the red wire is connected to the positive output line of the electric door lock, and the black wire is connected to the negative electrode of the battery-or take the iron Warm reminder: When wiring, the red is connected to the positive electrode, and the black is connected to the negative electrode.If the switch is reversed, the switch will burn, but the handle will heat up, so when wiring, please make sure that the positive and negative extremes are connected before wiring to prevent burning. Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.Thank you! Please allow 1-2cm measuring deviation due to manual measurement.
