Fitment List
2016-UP Yamaha Grizzly 700
2016-UP Yamaha Kodiak 700
Specifications
Winch Type：Electric
Voltage：12 Volt DC
Motor Type：Permanent Magnet Motor
Drive Gear Type：3-stage Planetary
Gear Reduction Ratio 153:1
Line Type：Synthetic
Line Diameter (in):1/4 inch
Line Length (ft)：32 ft
Max Line Pull：3000lbs
Line Speed：13.6ft/min（No Load）/ 2.72ft/min（Full Load）
Hook Type：1/4 Inch Forged Steel
Line Stopper Type：Maximum Diameter 1/2 inch Quality Rubber Line Stopper
Winch Mounting Bolt Pattern(in)：3.10 inch
Fairlead Type：4 7/8 inch Aluminum Hawse
Remote Type：Wired Controller (adapted to handlebars) + Wireless Remote Control With 100ft Control Range
Features
【Fitment】
This Electric Winch Kit fits 2016-UP Yamaha Grizzly 700 and 2016-UP Yamaha Kodiak 700. (Please check fitment before your purchase)
【Wired/Wireless Control】
Winch kits offer both wired and wireless controllers to control ROPE IN and ROPE OUT.
You can mount the wired controller directly to the ATV handlebar without modification or drilling, giving the handlebar a neat look. Or use the remote switch for wireless control. (Remote control range up to 100 feet), and you don\'t have to touch the dangerous rope directly, making it safer and more convenient for everyday use.
【3000 lbs Line Pull】
Equipped with a 3-stage Planetary Drive Gear system and 153:1 gear speed ratio that delivers reliable pulling power with a weight capacity of up to 3000 lbs. it excels in towing tasks such as pulling heavy loads, relieving stuck vehicles, and navigating challenging terrains.
【High Quality】
Made of 1/4\" 32FT Synthetic Line, compared to steel cables, it can withstand more traction, is lighter and safer, won\'t rust, won\'t burr, and is easy to use.
The 4 7/8\" Hawse Fairlead is a heavy-duty 6061 aluminum material + a corrosion resistant anodized black process , It can withstand harsh weather conditions and rough terrain and keep working normally.
【Sold As Whole Set】

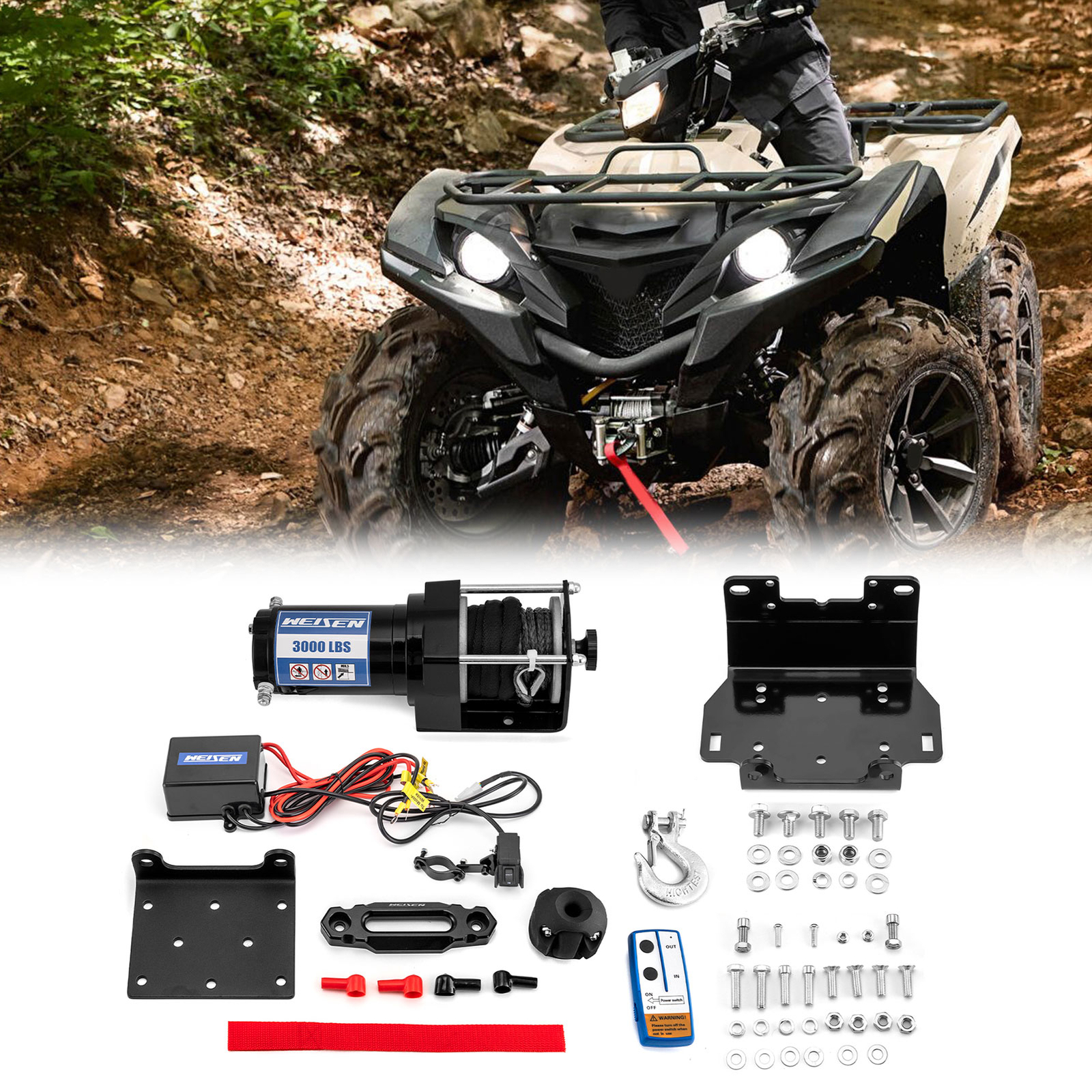

Package includes all needed parts:
1 x 3000lbs Electric Winch
1 x Winch Mounting Bracket
1 x Universal Fairlead Mounting Bracket
1 x 4 7/8\" Aluminum Hawse Fairlead
1 x 1/4\" Synthetic Line
1 x 1/4\" Forged Steel Hook
1 x Line Stopper
1 x Wired Controller (adapted to handlebars)
1 x Wireless Remote Control
1 x Installation Instructions
