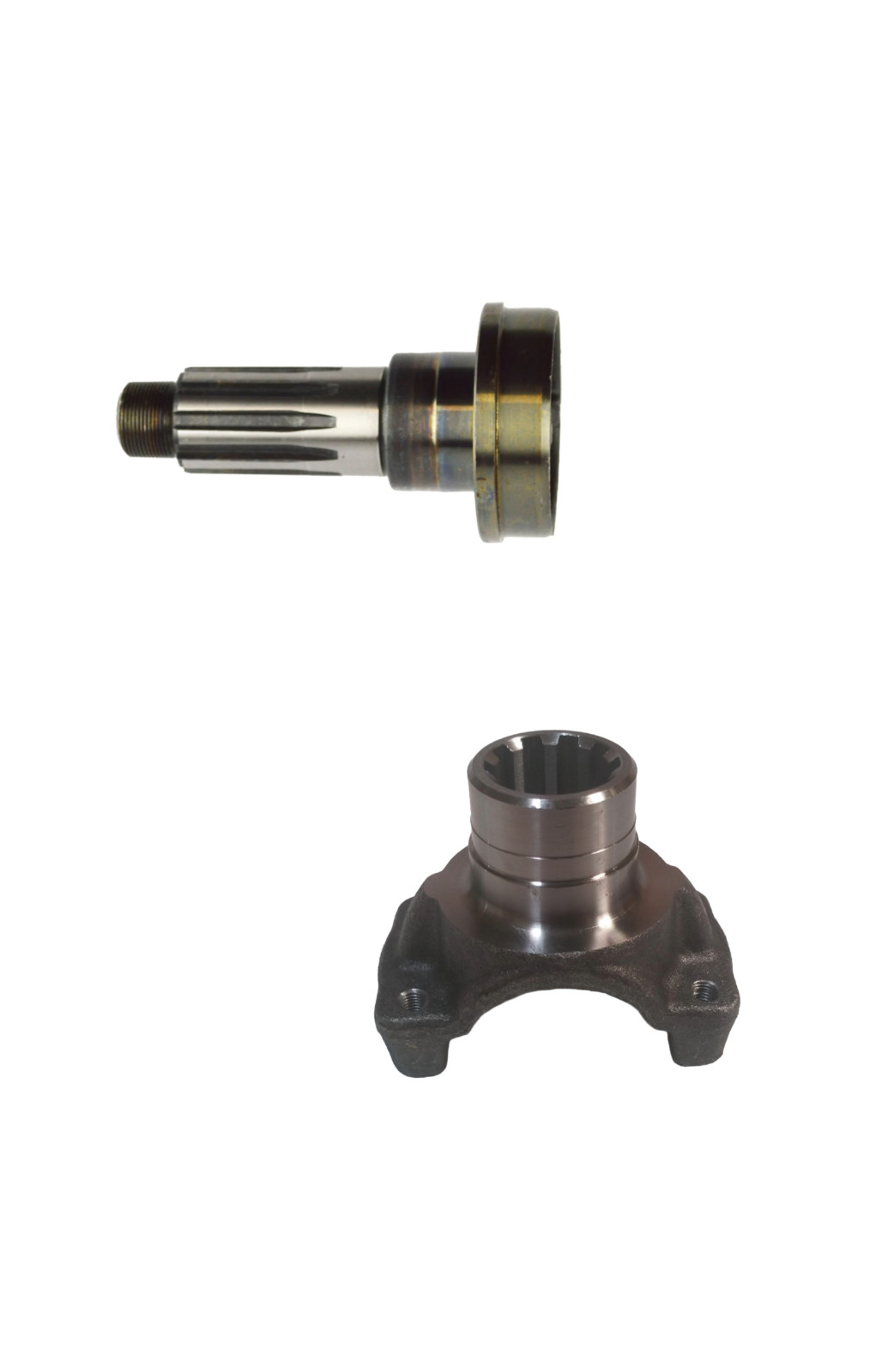

3-54-611 Splined Midship Stub Shaft for 3.000 X .083 1.375\"+ End Yoke 3-4-178-1X:
$95.49
You are buying a3-54-611 Splined Midship Stub Shaft for 3.000 X .083 1.375\"+ End Yoke 3-4-178-1X in set
Technical Specifications:
3-54-611 Splined Midship Stube Shaft:
- Spline Major Diameter D 1.375
- Spline Count 10
- Bearing Diameter C 1.378
- Tube Diameter and Wall Size 3.000 X .083
- End of Spline to Bearing Shoulder Y 2.656
- End of Spline to Point of Weld K 4.000
- Length of Spline L 1.688
- Shoulder Diameter B 1.719
- Length of Shoulder G 1.125
3-4-178-1x End Yoke:
- Yoke Type: Differential End Yoke / Pinion Yoke
- Spline Dimension: 1.375\" diameter x 10 splines
- Hub Diameter: 1.719\"
- Style: Strap Style
- Series: 1350
