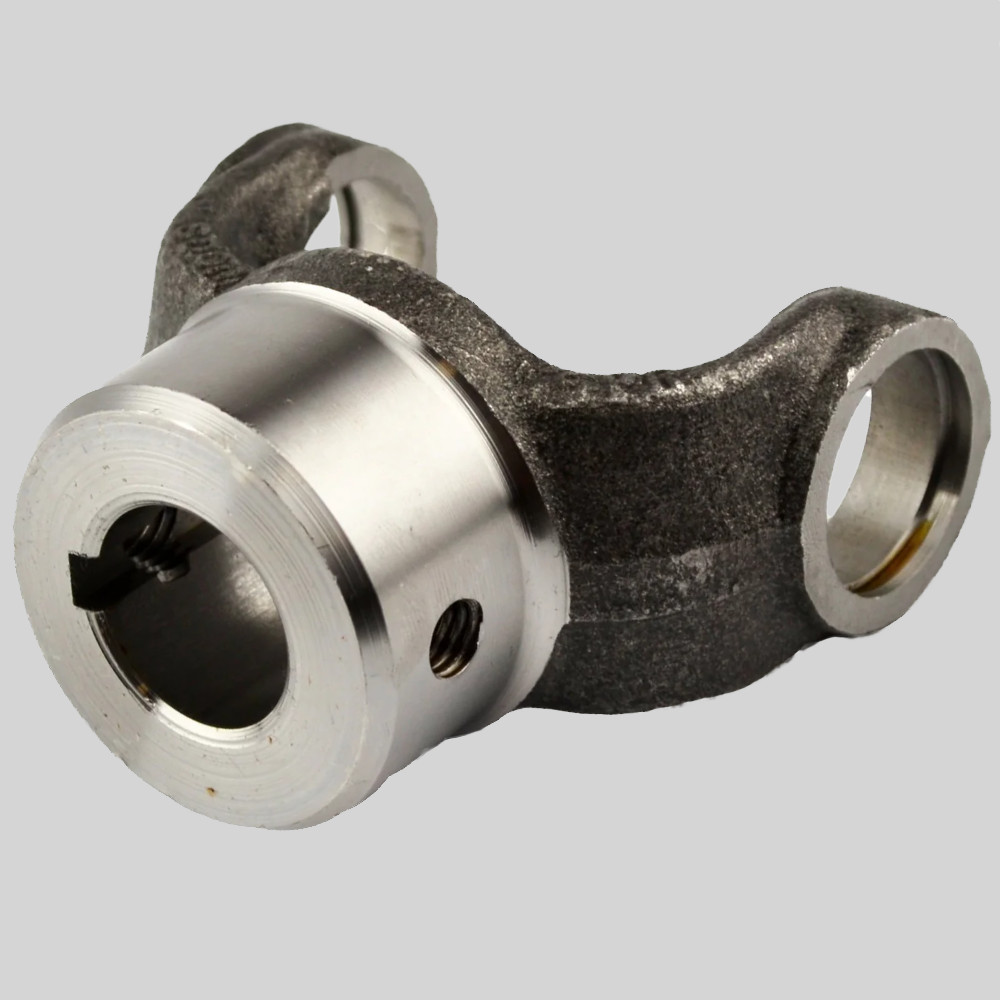

2-4-473 Genuine Dana Spicer 1310 Series End Yoke PTO 1\" Round Bore .250 Keyway For Sale - New and Used

Made in USA

Brand Spicer

Series 1310

Yoke Style SR

Hub Diameter R 2.125

C/L To End Hub S 2.562

Type Straight Round Hole

Outside Yoke Dimension (In) E 3.469

Yoke Bearing Dimension (In) D 1.062

Involute Spline N

Hole Diameter (In) P 1.000

Sae Keyway Width (In) X 0.250

Set Screw Hole Diameter (In) 0.375

Keyway Location W 12

Set Screw Location W 6 & 12

Joint Angle #1 17

Hole Diameter - Max 1.0005

Hole Diameter - Min 0.9995

Keyway Width - Max 0.253

Keyway Width - Min 0.251

---
