2 3/4” ID to 2.75\" ID Universal Exhaust Pipe to Pipe Coupling Connector For Sale - New and Used

2 3/4\" 2.75\" ID to2 3/4\" 2.75\" IDUniversal Exhaust Pipe to Pipe Coupling Connector

Dimensions

Diameter: 2.75“ ID (Fits over 2 3/4” OD Pipe)

Length May Vary: Approx. 3 3/8”

Metal Thickness May Vary: Approx. 1/16”

Material: Mild Steel

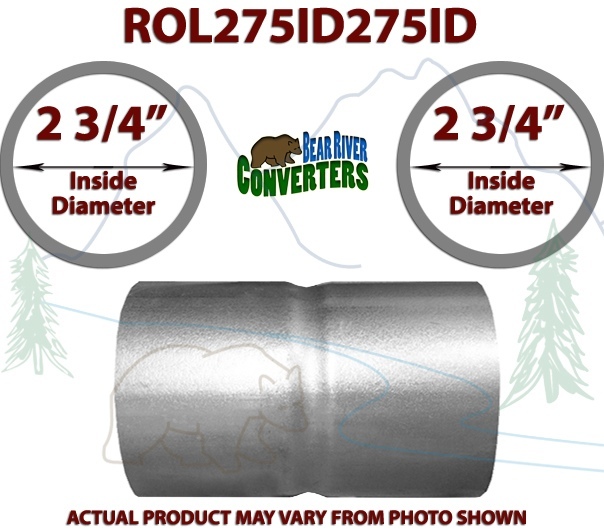

Only dimensions shown in photo are machined down

during manufacturing,to ensure a smooth fit.

If opposing OD/ID’s are used, edges may not be smooth; therefore, fitment is not guaranteed.

Advertised OD/ID\'s are guaranteed. We cannot guarantee the presence of indents as shown

and/or indent/expansion points may not be centered.

Product is man-made and no two items will be exactly identical,

although, every effort is made to ensure a consistent and quality product.

Pipe to Component (Use when your pipe is smaller than your component)

Component to Pipe (Use when your component is smaller than your pipe)

Pipe to Pipe (Use when one of your pipes is smaller than the other)

Component to Component (Use when one of your components is smaller than the other)

Pipe to Pipe (Use when both of your pipes are the same size)

Component to Component (Use when both of your components are the same size)

Pipe to Component (Use when your pipe would slide into your component, but is not long enough to reach)

How do I determine which adapter or coupling?

Adapters are used when matching pipes of various sizes or when using larger components on factory pipes, etc. The adapters have two dimensions, a large dimension and small dimension. The two dimensions will be measured as either an inside or outside diameter (ID/OD). Some adapters are designed to adapt pipes to each other, while others adapt tips, mufflers, converters, and other component parts to a different sized pipe.

Couplings are used when matching pipes and components of the same size. Pipe to pipe couplings slide over both ends of pipe, component to component couplings slide inside both components, and pipe to component couplings slide over the pipe and inside the component.

There are four categories of Adapter/Reducers:

Pipe to Component (Use when your pipe is smaller than your component)

Component to Pipe (Use when your component is smaller than your pipe)

Pipe to Pipe (Use when one of your pipes is smaller than the other)

Component to Component (Use when one of your components is smaller than the other)

and three categories of Coupling/Connectors:

Pipe to Pipe (Use when both of your pipes are the same size)

Component to Component (Use when both of your components are the same size)

Pipe to Component (Use when your pipe would slide into your component, but is not long enough to reach)

Typically, pipes are measured by their outside diameter (OD), so you would want to select an adapter or coupling that has an inside diameter (ID) matching the OD of your pipe.

On the other hand, components are generally measured by their ID, so you would want to select an adapter or coupling that has an OD matching the ID of your component.

Anatomy of an adapter or coupling

Our adapters and couplings are fairly simple units. They consist of a piece of pipe that either slips into a component or over a pipe on one end, andinto a component orover a pipe on the other. They can then be welded or clamped.

Product manufactured in Mexico.
