This Digital Dash comes complete with direct fit printed circuit boards, custom fit \"smoked\" Plexiglas face plates, universal temperature sending unit, oil pressure sending unit, and speedometer sending unit (sender/sensor) for trucks without electronic transmission or cruise control, and instructions. The Digital Dash works with your factory fuel level sending unit and cruise control sender or electronic transmission output if so equipped. Everything fits directly into your existing housing, but you may need some additional 18-gauge wire.
Unit is single wire hook up and NOT PLUG & PLAY.

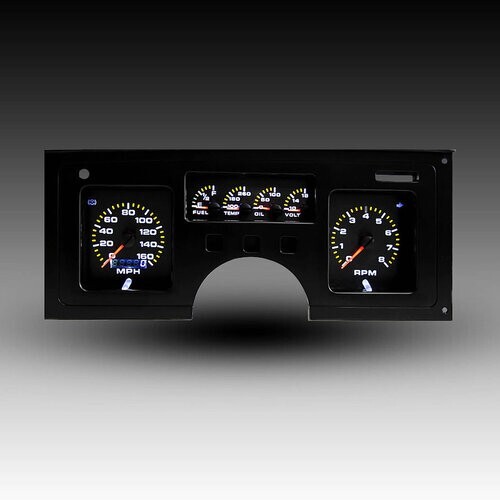

Your 1984-89 Corvette will be the talk of your Corvette Club with a new Intellitronix direct fit 84-89 Corvette Analog Replacement Gauge Panel. Corvette went digital with their sporty cars in recent years, making this analog gauge for the 84-89 Corvette the first and only one of its kind.
Speedometer, Tachometer for 8-6-4-cylinder, Fuel Gauge, Voltmeter, Oil Pressure Gauge, Water Temperature Gauge and Clock.
Speedometer reads up to 160 MPH includes one button calibration, regardless of tire size, gear ratio, or transmission, for 8-6-4-cylinder engines, odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time, all with the push of a button!
Voltmeter with high and low voltage reads from 10.0 to 18.0 volts range.
Oil Pressure Gauge reads from 0-100 psi.
Tachometer reads from 0 to 8000 in 100 RPM increments.
Water Temperature gauge reads from 100-260°F.
Fuel gauge is user programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders, reads from 0-99%.
Clock displays with standard hours and minutes.
Turn signal indicators and high beam indicator are included. It comes with factory lifetime warranty, all necessary sending units, clear plexiglass, hardware, and instructions.
Works with any mechanical or electronic transmissions or you can purchase separately a GPS speedometer sender from Intellitronix.
Note: When installed the gauge cluster may disable the cruise control system.
Easy Install, Lifetime Warranty, Great Price & Gauges for your very special classic vehicle.
BEZEL NOT INCLUDED
FEATURES:
AVAILABLE COLORS: White, Red, Blue, Teal and Green
SPEEDOMETER READING: Order your speedometer in either MPH orKM/H
ORDER SPEEDOMETER & TEMPERATURE
in your choice of MPH and FAHRENHEIT or KPH and CELSIUS
Make a note at the time of checkout if you want KPH and Celsius, otherwise, the Speedometer and Temperature gauges come as MPH and Fahrenheit. (NOTE: Not all analog gauge clusters are available in KM/H)
·Know Before You Buy!
If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, (Part Number 8014-LS / LS Swap Kit). Also, if your LS engine is 4 cylinders, then please send a note to the seller letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
We always strive to be sure that your order is accurate to meet your specific requirements. With that in mindplease try to make any special requests in \"BUYERS NOTES\" at checkoutwhen placingyour order.The buyer’s notes are the section that many customers put make, model, year of vehicle etc... but it is also used to make special requests like LS or KM/H & Celsius etc...
The Order Processing Department and Customer Service Department (e-bay messages) are separate. Depending upon our volume of messages to be answered, any special requests made via messages instead of an added “BUYERS NOTE” with order, could be missed before your order ships. We try to catch them all and coordinate with both departments but sometimes the timing can be off.
RETURN POLICY
·The panel kit comes with a Lifetime Guarantee and is made in the USA!
·If you\'re not 100% completely satisfied, then just arrange to send it back within the 30-DAY return period.
After the initial 30 days from purchase date, all warranty and service-related requests are done directly with the manufacturer of product (Intellitronix). Keep proof of purchase and keep installation guide with all related contact information such as phone number of MFG for warranty requests or technical assistance.
