12V Electric Cool&Heat Underdash Air Conditioner DC Auto Car A/C Kit For Pickup:
$499.11

Store CategoriesStore Categories

Underdash A/C Unit
All-In-One A/C Unit
Split A/C Unit
Portable A/C Unit
Air Filters
Cabin Air Filter
Engine Air Filter
Connectors & Terminals
A/C Compressors & Clutches
Blower Motor
Wheel Bearings, Hubs & Seals

WHAT IS PARKING AIR CONDITIONER ?
The parking air conditioner is a kind of in-car air conditioner. It refers to the equipment that uses the on-board battery DC power supply (12V) to make the air conditioner run continuously when parking and waiting and resting, and to adjust and control the temperature, humidity, flow rate and other parameters of the ambient air in the car, so as to fully meet the comfort cooling needs of the truck driver.
Normally drivers leaving the engine running for hours to use the air conditioner during parking or rest time at night, it is bad for the environment and tons of fuel wasted, it also wears down the engine faster. Parking air conditioner works with truck battery power without engine on which can save energy and fuel and at same time provide safe and comfortable environment for driver. Fuel,Energy And Money Saving.
Digital frequency conversion control, more efficient and more energy saving. Use energy saving mode when you sleep at night, it can run continuously 6 to 8 hours. Use super mode in hottest hours, cooling rapidly and stronger air supply.

MULTI INSTALLATION WAYS
The 12V electric air conditioning system have multi installation ways to ensure it can be suitable for most vehicles in the market. It includes:
1) ro oftop mounted air c onditioner for van, truck, commercial vehicles, special vehicle, trailer, earth-moving machine, motorhome, RV (re creational vehicl e)
2) bac k - wall mounted air c ondition er for truck, tractor, trailer, heavy duty truck, light truck, truck cab, truck sleeper, sleeper cab.
The truck air con diti oner is divided into two types: Rooftop Air Conditioner/ split type model. Very easy to install.
The entire air conditioner is integrated, with compressors, condensers, blowers and other accessories inside.

Heating principle ：

Using the engine coolant to heat the air vent core

Specication:

Rated Voltage (V): 12VDC
Current (A): 33A-66A
Rated Power (W): 792W
Rated Cooling Capacity (W): Oil：POE68
Charging Quantity of Refrigerant ( g)：600g
Power Cord Specification (mm2)：3 meters (8mm²)
Type of heating and cooling: Cooling only / Cooling & heating
optional
Application: Air-condition

Refrigerant: R134a
Compressor cooling:Inhalation refrigerant cooling
Displacement: 12ml/re

Refrigerator oil: EMKARATE RL68H/100ml

Electric compressor data:
Voltage: DC 12V
Current: 63A
Rated speed: 2100rpm
Speed range: 1500rpm - 2100rpm
cooling capacity:1000-2000W
Rated power: 650w
Condensing temperaturerange: 26.7℃ - 68℃
Evaporating temperature range: -10℃ - 12.5℃
Oil: RL68H/130ml

Scroll compressor Specification:
Electronic fan connection harness: 2 meters
Internal machine connection harness: 3 meters
Main power harness: 3 meters
Fluorine-resistant hose:
3 points (thin tube) = 3 meters
4 points (thin tube) = 2 meters

5 points (thin tube) = 3 meters

Application:
Truck, Tractor, Digger, Trailer,Excavator, Agricultural vehicles,Pickup,etc.

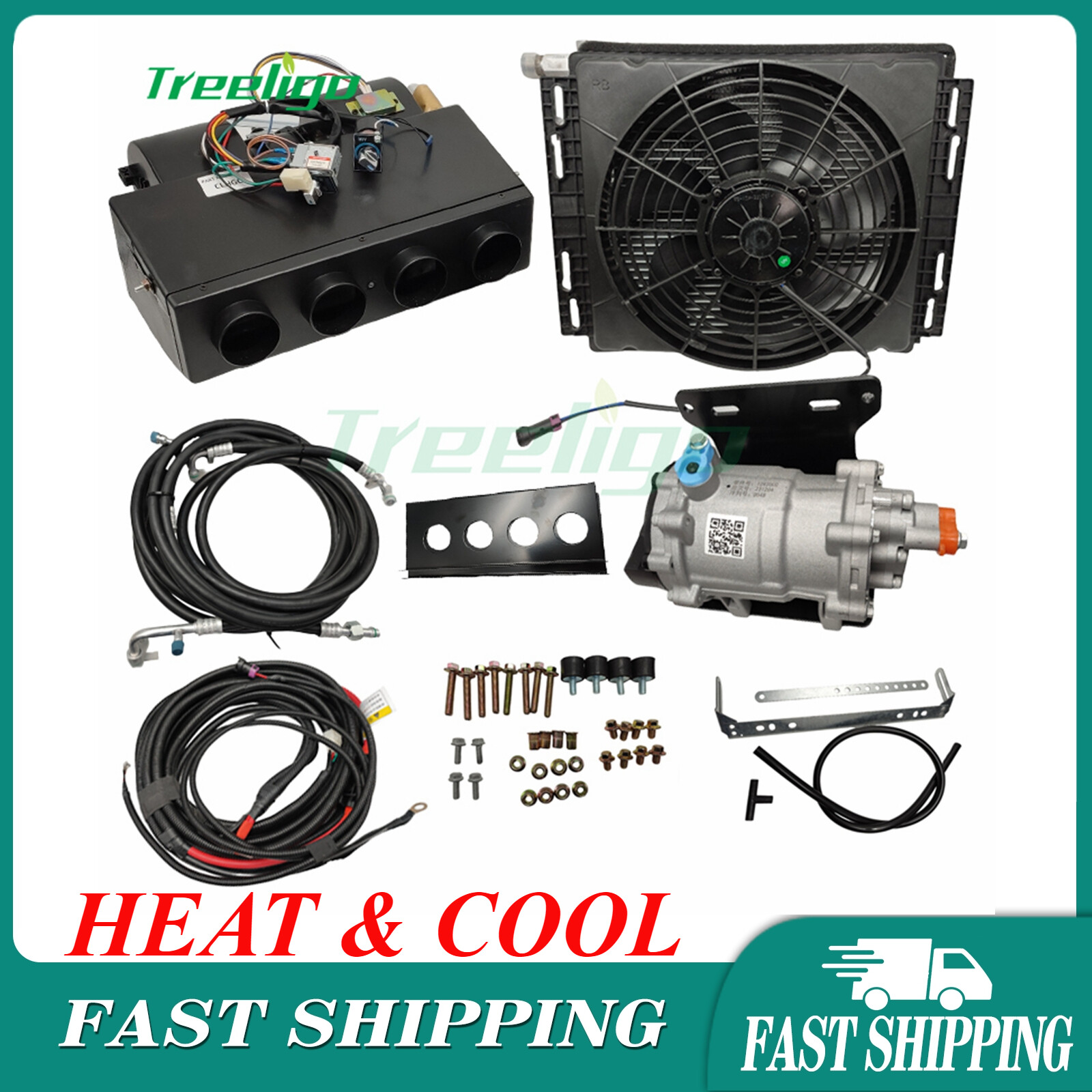

Package List:

1*Condenser*Fan*Dryer Bottle（Dimension：14*18inch with bottle，OR interface）

Fan（14*18-12V ，including 2P mother shell + 6.3 inserts) with carton）

1*Outlet

1*Integrated Electric Compressor

1.Wiring Harness

1*Fittings Kit

Note:

1.The total leakage of the compressor is not greater than 5g/year.

2.The noise is not greater than 74dB in rated speed.

3.Insulation resistance must be greater than 20MΩ .

4.The tolerance of None remarked dimensions

may be accordance with GB1804-m.

5. The performance of all unmentioned are in accordance with

GB/T 22068-2018.
