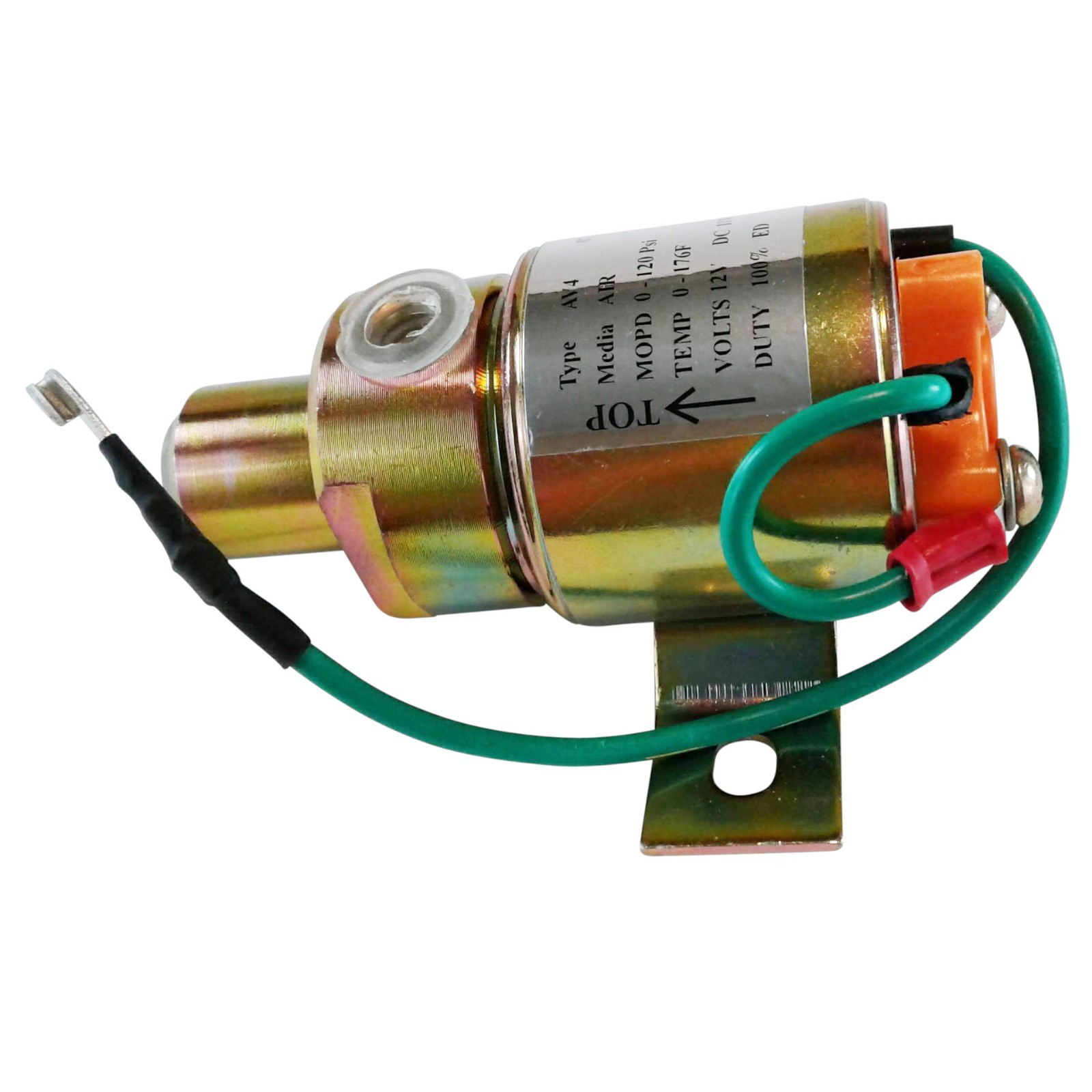

12V Normally Closed AV4 Style Solenoid Air Valve – KN68230
The Brianna Auto Parts 12V Solenoid Air Valve is a normally closed electro-pneumatic valve designed for intermittent on-off control of compressed air in heavy-duty truck and commercial vehicle systems. It is designed for applications using KN68230 and related industry reference numbers.
Product Features
- 12V DC electrical operation
- Normally closed valve configuration
- 1 Amp current draw
- 125 PSI standard operating pressure
- 130 PSI maximum operating pressure
- Two 1/4\" NPTF pneumatic ports
- Designed for intermittent use
- Grounds through the mounting bracket
- Must be installed in the upright position
Technical Specifications
- Valve Type: Solenoid Air Valve
- Voltage: 12V DC
- Current Draw: 1 Amp
- Valve State: Normally Closed
- Standard Operating Pressure: 125 PSI
- Maximum Operating Pressure: 130 PSI
- Pneumatic Ports: 2
- Port Size: 1/4\" NPTF
- Electrical Operation: On-Off
- Duty Cycle: Intermittent Use
- Grounding: Through Mounting Bracket
- Mounting Position: Upright
Replacement & Reference Part Numbers
KN68230, KN-68230, KN68230N, KN68230NP, 320051, 320051-VV, 401190, 801000, 20-QE-2100, 20QE2100, 213909R91, 213909R92, 258529C91, 288905C91, 46805, A68230, EMDKN68230, R955KN68230N, AVA68230, 12137, 80-1000, S-8931, S8931, VEL320051
Common Applications
This type of 12V solenoid air valve is used in heavy-duty pneumatic control systems. Applications can include auxiliary air controls such as axle-shift systems, transmission range or splitter controls, and other pneumatic systems requiring electrically controlled air routing.
What’s Included
1 × 12V AV4 Style Solenoid Air Valve
Important Fitment Information
Verify the part number, voltage, port configuration and operating pressure requirements before ordering. This aftermarket valve is manufactured for applications using the listed reference numbers and is not manufactured by the original equipment manufacturer identified by those reference numbers.
Warranty
1 Year
