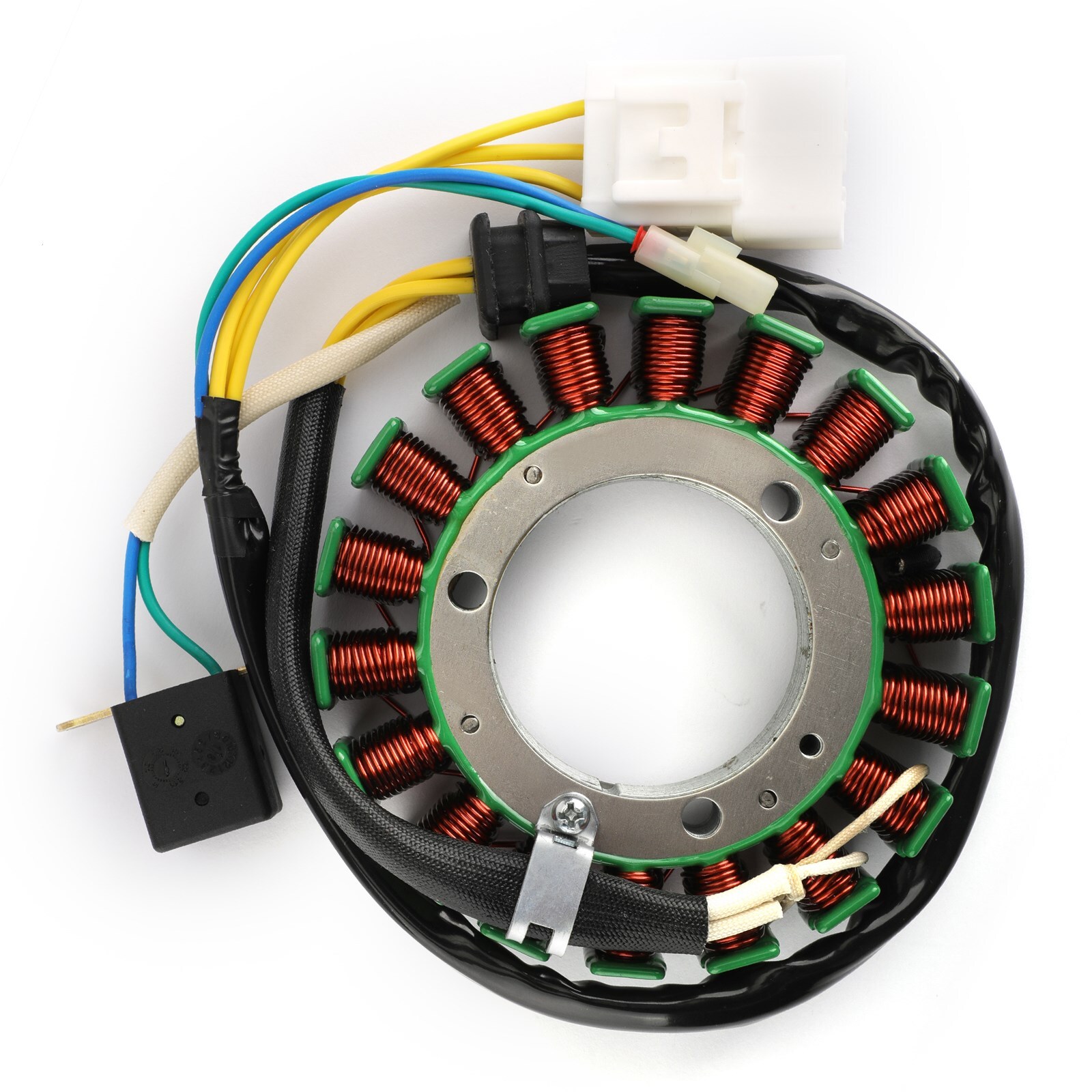

5-Wire Magneto Generator Stator 115mm Fit for CF-Moto 500 600 625 ATV UTV replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
other specifications:
Number of wires : 5
Number of pins : 3 + 2
Number of plugs : 2
Number of fixation holes: 3
Number of poles: 18
Please compare the number of pins and plugs with the old part before diameter : 54mm / 2.12 in
Exterior diameter : 115mm / 4.51 in
Replacement Part Make/Model/Year:
Fit for CFMoto 500cc 600cc & 625cc engines found on various CFmoto models as well as other makes that use CFmoto engines.
Please check and see if your stator diameter as same as our and your connectors and harness looks like the one in the photo.
Fit for CFMoto ATV 500 CF188 500cc
Fit for CFMoto ATV 600 CF600 600cc
Fit for CFMoto ATV 625 CF625 625cc
Fit for CFMoto ATV 0180-032000
Fit for CFMoto ATV CF188-032000
Fit for CFMoto ATV 500 CF500 500cc Long Short 2007-2009
Fit for CFMoto ATV 500 CF500-2 500cc Short 2011 - 2014 (ShortWB Single Seat)
Fit for CFMoto ATV 500 CF500-2A 500cc Lung 2011- 2014 (LongWB Double Seat)
Fit for CFMoto ATV X5 X-Lander Lung 2011-2013
Fit for CFMoto ATV X5 X-Lander Short (carb) 2013
Fit for CFMoto ATV X5 Short Carb - EFI ATV 2011-2012, 2014
Fit for CFMoto ATV X5 Long Carb - EFI ATV 2011 2014
Fit for CFMoto UTV Rancher 500 500cc 2011 - 2012
Fit for CFMoto UTV Rancher 500 CF500-5 500cc 2010 - 2013
Fit for CFMoto UTV Rancher 600 UFORCE 600cc 2013 - 2014
Fit for CFMoto UTV Rancher 600 (CF600-5) 2011-2014
Fit for CFMoto UTV CUV Rancher 600 CF600-5 600cc 2011 - 2014
Fit for CFMoto ATV CForce 500 500cc Short 2015
Fit for CFMoto ATV CForce X5 CF500-A 2011-2016
Fit for CFMoto UTV UForce U500 U5 CF500-3 2011-2015
Fit for CFMoto ATV CForce X5 CF500-2A 2011-2016
Fit for CFMoto ATV CForce X5 CF500-2 2011-2016
Fit for CFMoto ATV CForce X5 CF500 2011-2016
Fit for CFMoto UFORCE 500 HO 2014-2015
Fit for CFMoto UTV Z6 2011-2015
Fit for CFMoto UTV Z6 Terracross 600 2011-2015
Fit for CFMoto UTV Z6-EX Terracross 625 EX 2012-2014
Fit for CFMoto X6 Long Short 2011-2014
Fit for CFMoto ATV X6 Terralander 625 625cc Lung Scurt 2011-2012
Fit for CFMoto ATV X6 Terralander 625 625cc Long Short EFI 2013-2014
Fit for CFMoto ATV X6 X-Lander Lung Scurt 2011-2013
Fit for CFMoto ATV X5 2012-2015
Fit for CFMoto ATV X5 Terralander 500 500cc Long Short EFI 2011-2014
Fit for CFMoto ATV X5 HO EPS Terralander 500 500cc Lung EFI 2015 (Double Seat-LongWB)
Fit for CFMoto ATV X5 Terralander 500 500cc Long Short CARB 2011-2014
Fit for CFMoto ATV ZForce 600 2013-2015
Fit for CFMoto ATV ZForce 600 EX 2013
Fit for CFMoto ATV Trail Tracker 600 EFI 2011-2014
Fit for CFMoto ATV Trail Tracker EX 500 EFI 2011-2014
Fit for CFMoto ATV Trail Tracker EX 600 EFI 2011-2014
Fit for CFMoto ATV Snyper 600 EFI 2011-2014
Fit for CFMoto ATV Swat 500 CR 2011-2013
Fit for CFMoto ATV 600 EFI 2011-2014
Fit for CFMoto ATV UTV UForce 500 U500 U5 CF500-3 2011-2015
Fit for CFMoto ATV CForce X5 CF500-A 2011-2016
Fit for CFMoto ATV SSV 600 ZForce Z6 CF600-3 2016
Fit for CFMoto ATV UTV UForce U6 CF600-5 2011-2015
Fit for CFMoto ATV SSV 625 ZForce Z6 CF625-3 2012-2016
Fit for CFMoto ATV SSV 625 ZForce Z6-EX CF625-6 2012-2016
Fit for CFMoto ATV Terralander 625 X6 CF625-C 2011-2014
Fit for Explorer ATV Atlas 500 2x4 COMPACT 2011
Fit for Explorer ATV Atlas 500 4x4 EDITION bis 2009
Fit for Explorer ATV Atlas 500 4x4 XL 2010
Fit for Explorer ATV Everest 500 4x4 XL
Fit for Explorer ATV Grison 625 4x4 DELUXE
Fit for Explorer UTV Grumbler 500 4x4
Fit for Explorer UTV Bazooka 625 4x4
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x 115mm Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
