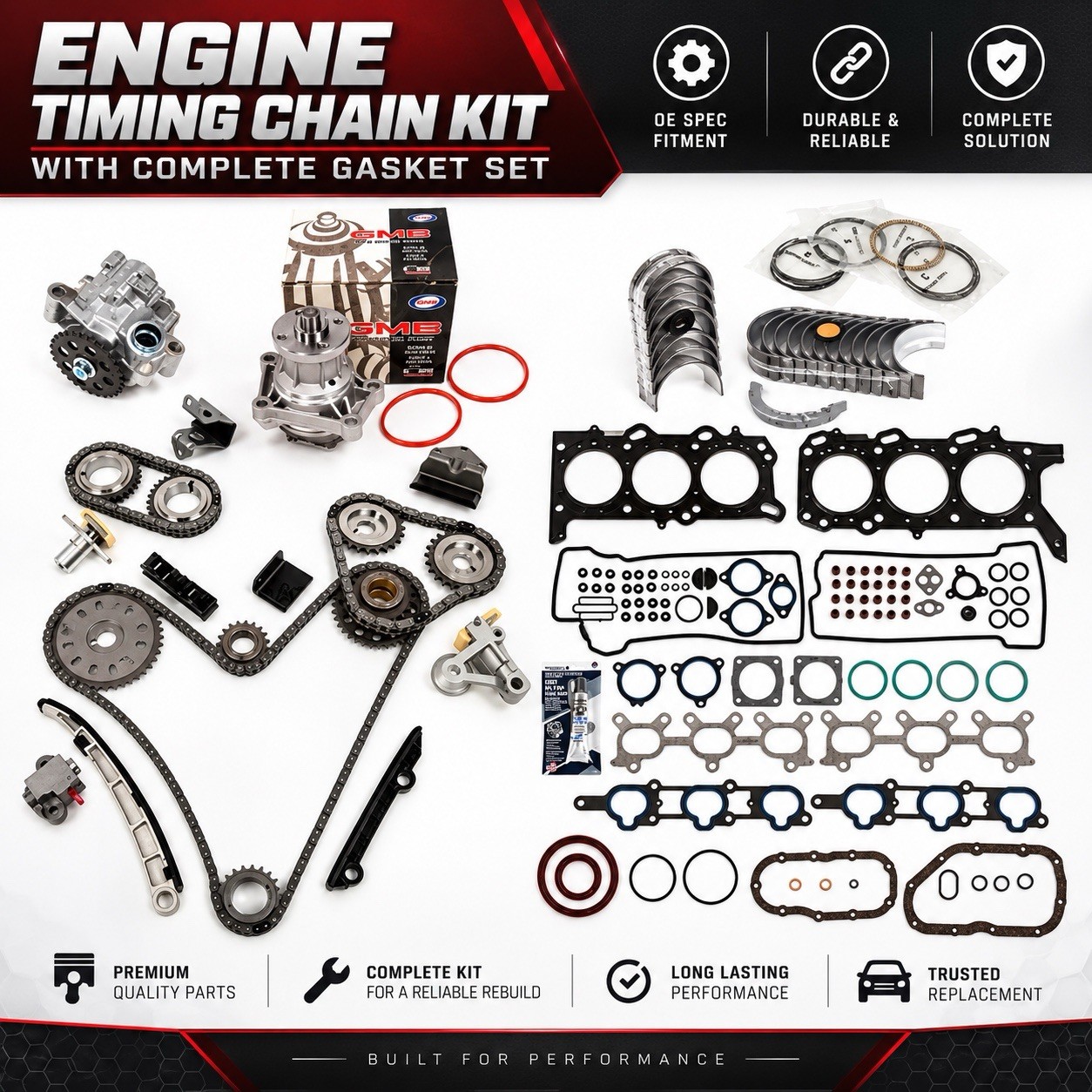

COMPLETE ENGINE REBUILD + TIMING CHAIN + OIL PUMP + WATER PUMP KITFits:2006–2008 Suzuki Grand Vitara 2.7L V6 DOHC H27AThis is a comprehensive engine rebuild package combining the full engine gasket/re-ring/bearing kit with the complete timing chain kit, oil pump, and GMB water pump.Instead of purchasing the engine rebuild components and timing components separately, this package includes both kits together.ENGINE REBUILD KIT INCLUDES:• Full Gasket Set
• MLS (Multi-Layer Steel) Head Gaskets
• Valve Cover Gaskets
• Valve Stem Seals
• Lower Gasket Set
• Additional Small Gaskets
• RTV SiliconeComplete Piston Ring Set
• Standard Bore: 88.00mm
• 1st Ring: 1.20mm
• 2nd Ring: 1.50mm
• Oil Ring: 2.80mm• Crankshaft / Main Bearing Set
• Connecting Rod Bearing Set
• Thrust Washer SetPart TIMING CHAIN KIT INCLUDES:• 1 Primary/Main Timing Chain – 152 Links
• 1 Right Upper Timing Chain – Cam to Cam
• 1 Left Upper Timing Chain – Cam to Cam to Idler
• 1 Primary/Main Tensioner
• 1 Right Secondary Tensioner
• 1 Left Secondary Tensioner
• 1 Outer Right Cam Sprocket – 42 Teeth
• 2 Right Inner Cam Sprockets – 31 Teeth
• 1 Left Cam Sprocket – 24T
• 1 Upper Dual Idler Sprocket – 35T / 20T
• 1 Lower Idler Sprocket & Bearing – 19 Teeth
• 1 Crank Sprocket – 21 Teeth
• 1 Primary Inner Fixed Guide Rail
• 1 Primary Outer Tensioner Guide Rail
• 1 Primary Outer Fixed Guide Rail
• 1 Right Secondary Guide Rail
• 1 Left Secondary Lower Guide Rail
• 1 Left Secondary Upper Guide RailOIL PUMP COMPONENTS:• Oil Pump Chain – 64 Links
• Oil Pump Sprocket / Crank Drive Sprocket
• Oil Pump Chain Guide
• Complete Oil PumpWATER PUMP:• GMB Water Pump
• Water Pump Gasket IncludedTiming/Oil/Water Pump Part FITMENT:2006 Suzuki Grand Vitara – 2.7L V6 DOHC H27A
2007 Suzuki Grand Vitara – 2.7L V6 DOHC H27A
2008 Suzuki Grand Vitara – 2.7L V6 DOHC H27AEngine Size: 2.7L / 2736–2737cc / 167 CID
Engine Code: H27A
Configuration: V6 DOHC⸻PACKAGE HIGHLIGHTS:• Complete engine rebuild package
• Full gasket set
• Piston rings
• Main bearings
• Rod bearings
• Thrust washers
• Complete timing chain system
• Timing tensioners and guides
• Cam and crank sprockets
• Oil pump and oil pump chain components
• GMB water pump with gasketGreat for an H27A engine rebuild, overhaul, re-ring, or timing system replacement.IMPORTANT: Please verify your engine code, vehicle fitment, piston ring size, and bearing size before ordering. Professional installation is recommended.
