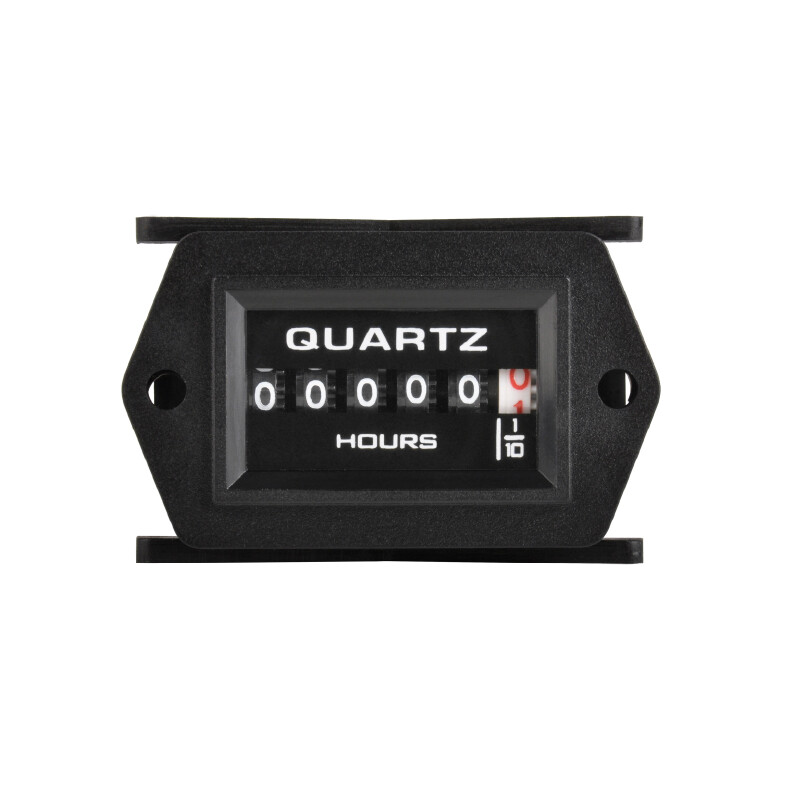

Runleader RL-HM004 Digital Hour Meter, AC/DC Powered 8V to 80V,TOT hours Tracking, Data Retained,Easy Installation,Waterproof Design for Lawn Mower Generator Golf Cart Compressor Forklift Snowmobile（We have excellent after-sales service guarantee. Whether for self use or resale. If the product has any quality problems, you can contact our store customer service at any time. We will help you solve this problem. Thank you.）（2-year warranty）
Product Description
- DC POWERED HOUR METER --- To track how many hours are the external equipment working.TOT hours are non-resettable, read up to 99999.9 hours,0.1 hour accuracy.
- WIDE VOLTAGE RANGE ---- Voltage range from AC/DC 8V to 80V, It is suitable for most common working voltage such as AC/DC12V,24V,36V,48V,72V etc.
- DATA STORAGE ---- When external equipment is off, the historic tracking hours will be retained,next tracking period would be continued.
- INSTALLATION ---- Easy to install ; Snap-in design and fits standard panel cut-out; Panel Cutout Size:Approx 375×24.5mm(1.5×1 Inch).
- OTHER ---- Mechanical Digits Display ;Surface waterproof rate: IP65; 2 years warranty.
Product Features
1 TOT Running Hours---Help to track how many hours are the equipment working
￭Accumulating total running hours of the external equipment.
￭When external equipment is off, the historic hours data will be restained and next tracking period would be continued.
￭TOT hours range: 0-99999,9 hours, timing accuracy: 0.1 hour.
￭TOT hours are non-resettable.2 Easy Installation--- Snap-in design and standarad panel cut-out size
￭Snap-in design and fits standard panel cut-out; Panel cutout size:Approx 38×25mm(1.5×1 Inch).
￭2 kinds of mounting methods to be selected: Screw Mounting and Bracket Mounting.
￭To be connected the Postive pin(+) and Negative pin(-),the external equipment will be started to work; thermostat,automatic or manual switch connection also workable.3 Specifications
￭Product Size:54x53.3x36mm
￭Display Window: Transparent PC, 29x16mm
￭Panel Cut-out Size:37.5×24.5mm(15x1 inch)
￭Attached Accessories: 2pcs of 6.3mm insert spring, 2pcs of 6.3mm insert sheath,User Manual,Mounting Bracket.
￭Working Voltage Range: AC/DC 8V-80V
￭Memory Capacity: CMOS EEPROM
￭Operating Temperature: -40 to 80 degree
￭Warranty : 2 years
￭Surface Waterproof Rate:IP65
￭N.W.60 G
