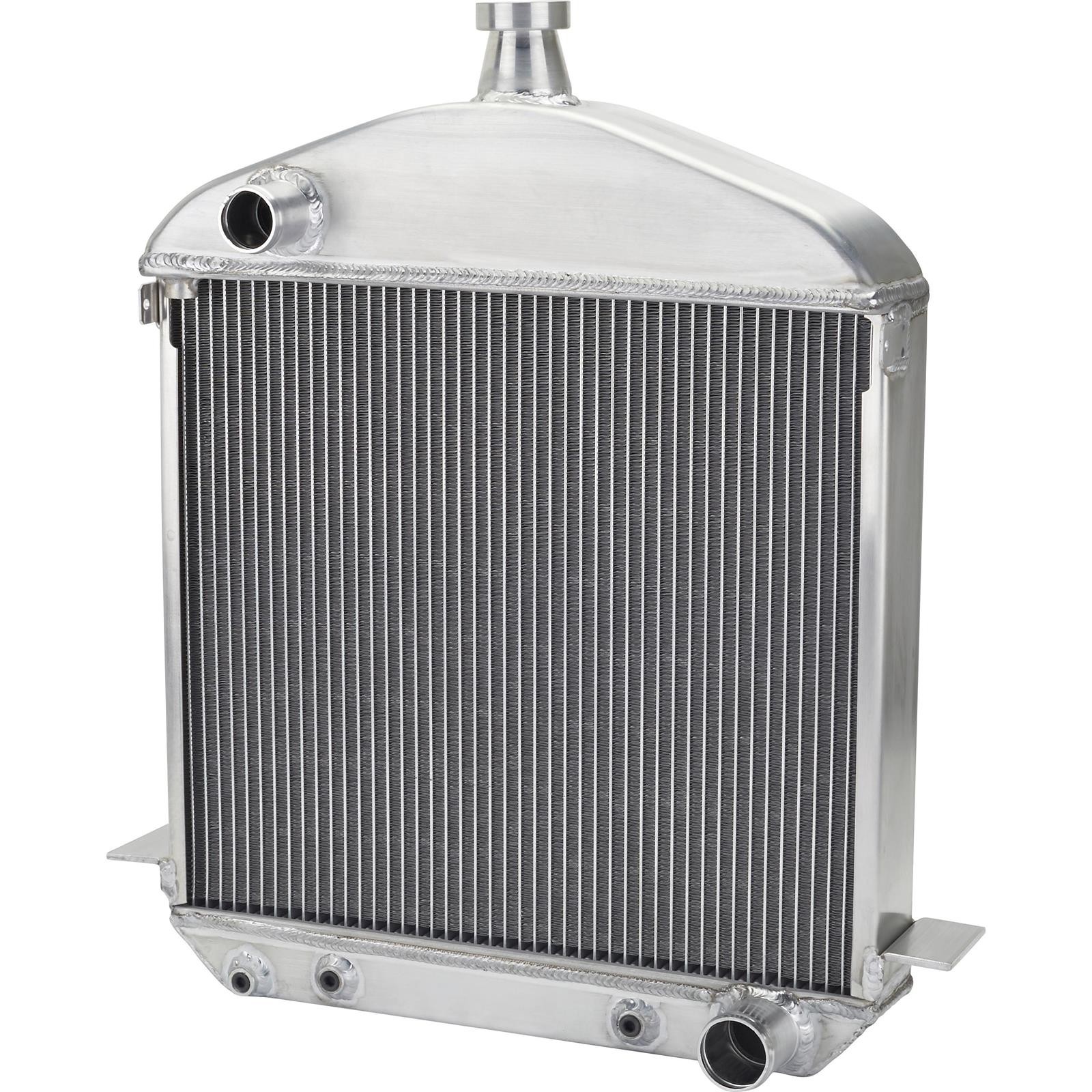

This aluminum radiator upgrades your old copper unit, giving you more cooling power without sacrificing that hot rod look, It features 2 rows of large 1" tubes for greater flow and capacity to keep your engine running at the optimal temperature, Offered in a buffed or polished finish, giving you the option to make your ride shine, or allow you to paint to match, They use the decorative "T" caps to seal the filler neck at the top of the radiator just like the originals, A hidden pop-off valve, sold separately, is used for pressure control, just like a new style radiator cap would Speedway 1917-1923 T-Bucket Polished Aluminum Radiator-Chevy Outlets Sku # 91015600-P Mfr. Part # 91015600-P Condition New Brand Speedway Motors Sold Each Details
These 1917-1923 T-Bucket radiators are built to work without a grille shell and look good doing it! Speedway T-bucket radiators do not use a conventional "pressure" radiator cap, rather they use the decorative "T" caps to seal the neck at the top of the radiator. A hidden pop-off valve ( is very helpful for sealing the decorative "T" caps.
Features Chevy position outlets, auto transmission cooler. These accept "T" radiator caps and accessories, but are not included.
- The upper neck is left of center about 6".
- 4" upper tank thickness, 3" strap thicknes that encases the core, 2.25" core
- Uses 2 each 1" wide core tube
- Choose from buffed or polished
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Specs Sold in Quantity Each MFG. Part # 91015600-P Notes 1/4" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1/4" NPT fitting for overflow. 1.75" wide mounting feet on both sides.WIDTH OVER MOUNTING 22-1/2"OVERALL HEIGHT 25 INCH Radiator Style Single Pass Radiator Flow Direction Downflow Material Type Aluminum Inlet Location Upper driver side Outlet Location Lower passenger side Row Quantity 2 Tube Size 1.00" Overall Width Range 18.00" to 18.99" Overall Width 18.75" Overall Height Range 22.00" to 22.99" Overall Height 22.38" Overall Thickness 4" Core Width Range 18.00" to 18.99" Core Width 18.38" Core Height Range 16.00" to 16.99" Core Height 16" Core Thickness 2.25" Finish Polished Cooling Fan Not Included Transmission Cooler Yes Shroud Included No Filler Neck Height 2.25" Inlet Size 1.5 Fan Included No Radiator Cap Included No Reviews Aluminum Radiator Rated by 30 A on August 17, 2026
Summary: Radiator was fine and all connections etc appeared to be welded properly but the polished finish was very poor. I spent another 4 hours with a bench type buffing wheel to get a truely polished finish.
No, I would not recommend this product.
I would buy this Rated by Michael Smith on December 25, 2024
Summary: Putting it in front of my motor
Yes, I recommend this product.
Yes Rated by Old man on November 20, 2024
Summary: I am using the radiator on a 1921 open roadster pickup with a 400 SBC chev engine
Yes, I recommend this product.
I am pleased with the radiator and the packaging Rated by jeff on July 01, 2024
Summary: But I am not so sure on the radiator relief valve , it seems the radiators top tank keeps blowing off coolant leaving the top tank empty. Don't know what the problem is or the design but I am have a issue. I am going to add a radiator filler neck and cap and close off the relief valve with a recovery tank.
No, I would not recommend this product.
Without a doubt Rated by Garry on January 06, 2024
Summary: I am building a 1927 T roadster and need to replace the radiator I had for my was damaged. The one I bought was perfect.
Yes, I recommend this product.
