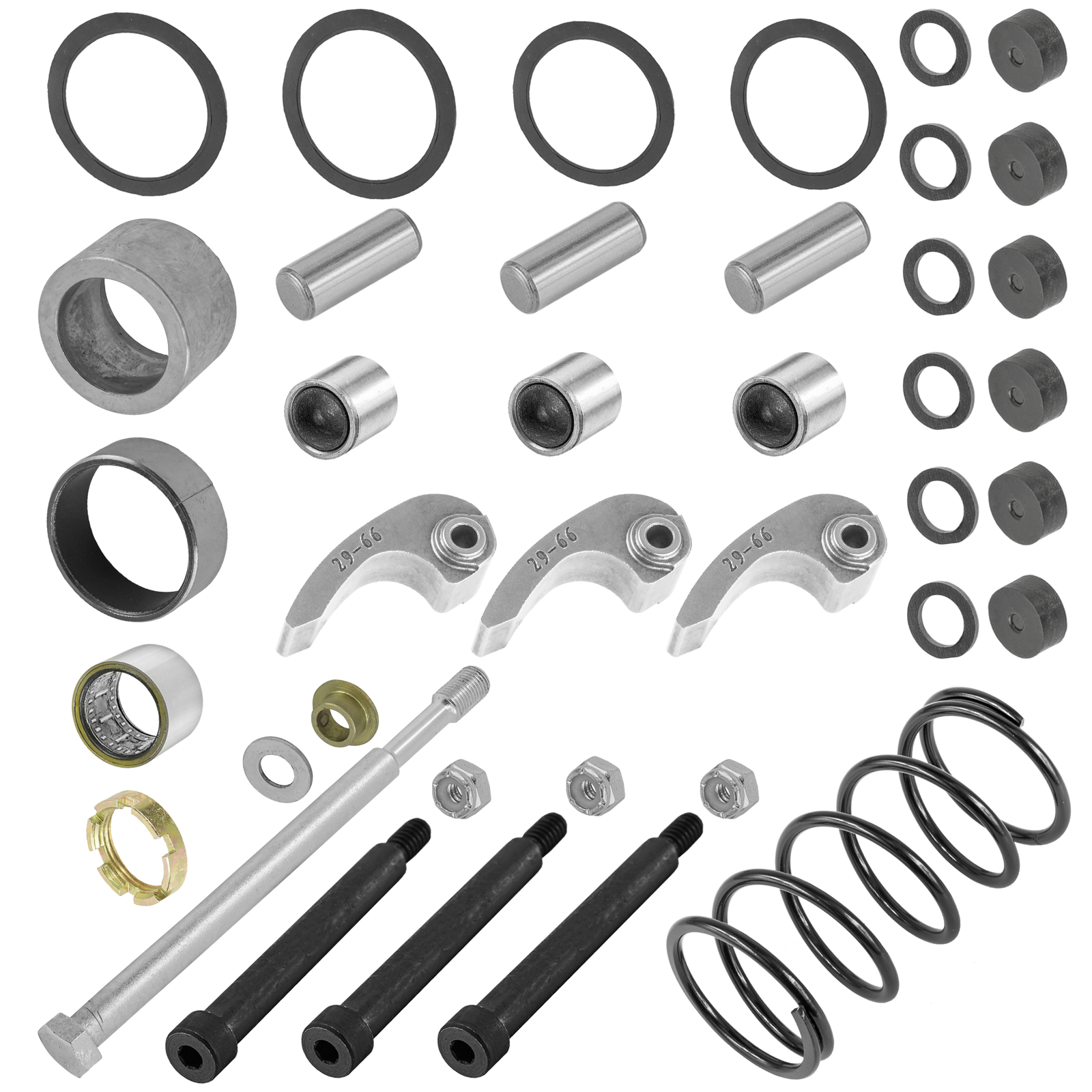

Tap here to read more about Primary Drive Clutch Rebuild Kit for Polaris General 1000 EPS 2017-2019 1323320
Premium Quality Replacement PartPrimary Drive Clutch Rebuild Kit
For Polaris Models:
Order Includes:
3 x ORV Clutch Weight|5633496
Length : 55 mm | 2.16\"
Width: 13.30 mm | 0.52\"
Weight Code: 29-66
1 x Clutch Spring |7044263
Length : 86 mm | 3.38\"
Width: 50 mm | 1.97\"
58-135
3 x Roller | 1321622
Outer Diameter :14.3 mm | 0.56\"
Inner Diameter :9.5 mm | 0.37\"
Width :14 mm | 0.54\"
3 x Roller Pin | 5020422
Length:25 mm | 0.98\"
Outer Diameter:9.5 mm | 0.37\"
6 x Roller Washer | 5438247
Outer Diameter :14.6 mm | 0.57\"
Inner Diameter :9.6 mm | 0.37\"
Thickness:1.5 mm | 0.059\"
6 x Button |5450940
3 x Shoulder Bolt |7512266
Length:63.8 mm | 2.51\"
M5x1.0
3 x Nut | 7541906 3235320
Inner Diameter :4 mm | 0.15\"
Height:6.1 mm | 0.24\"
M5x1.0
2 x Washer | 7556335
Outer Diameter :43 mm | 1.69\"
Inner Diameter :34 mm | 1.33\"
Thickness:1.1 mm | 0.043\"
1 x DU Bushing | 3514492
Outer Diameter :51 mm | 2.0\"
Inner Diameter :45 mm | 1.77\"
Width :25 mm | 0.98\"
1 x Bearing Cover|3576510
Outer Diameter :33 mm | 1.29\"
Inner Diameter :29 mm | 1.14\"
Width :13 mm | 0.51\"
1 xClutch Spacer|5632894
Outer Diameter :44 mm | 1.73\"
Inner Diameter :35 mm | 1.37\"
Width :27 mm | 1.06\"
1 xClutch Spacer|5632060
Outer Diameter :44.8 mm | 1.76\"
Inner Diameter :32 mm | 1.26\"
Width :28.1 mm | 1.10\"
2 xClutch Spacer|5438963
Outer Diameter :38 mm | 1.49\"
Inner Diameter :28.7 mm | 1.12\"
Width :1.1 mm | 0.043\"
1 xBolt|75184125132441 7556003
Length:224 mm | 8.81\"
Thread Spec : M14-1.5
1 xEBC One Way Bearing|1521172
Outer Diameter :44.5 mm | 1.75\"
Inner Diameter :35 mm | 1.33\"
Width :31.6 mm | 1.24\"
1 xJam Nut|7547498
Inner Diameter :29.7 mm | 1.17\"
Width :9.0 mm | 0.35\"
