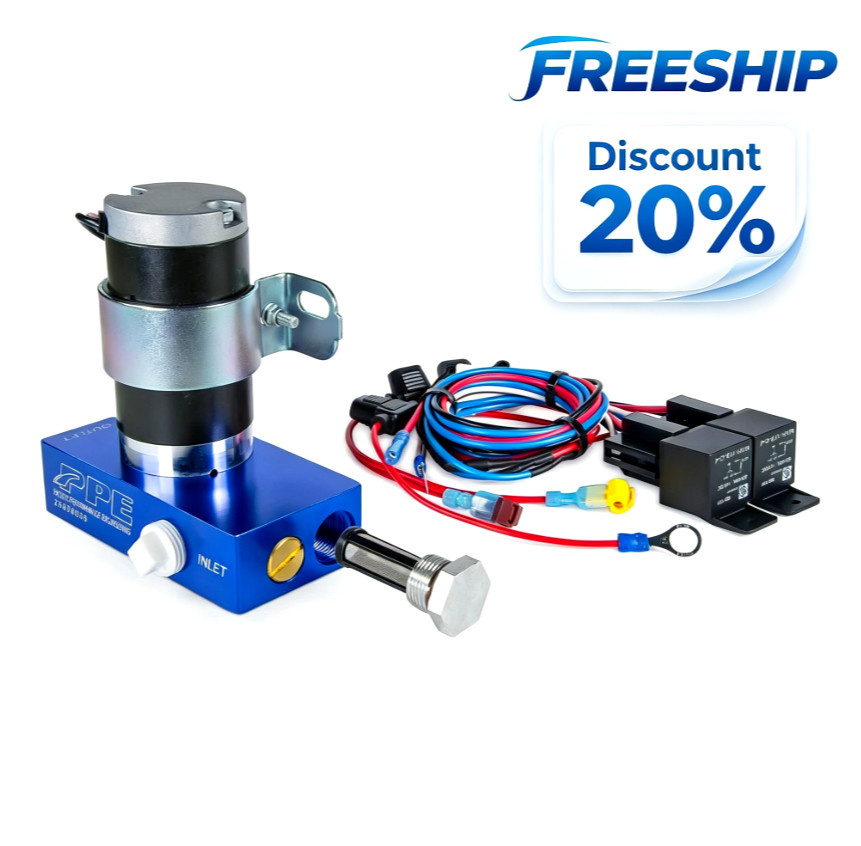

🔥 20% OFF | Diesel Fuel Lift Pump PPE113050000A reliable fuel supply starts before the high-pressure injection pump. The PPE Diesel Fuel Lift Pump pushes fuel from the tank through the fuel lines and filter instead of relying on the OEM CP3 to draw fuel forward.
That positive fuel supply can help reduce the chance of air entering the fuel system, collapsed hoses, and restrictions between the tank and high-pressure fuel injection pump. The pump is rated for up to 160 GPH and uses high-flow 1/2-inch NPT inlet and outlet ports.
The kit also includes the mounting hardware and electrical components needed for installation, making it a practical upgrade for compatible diesel fuel systems.
Key Features
✔ PPE Diesel Fuel Lift Pump
✔ Up to 160 GPH fuel flow
✔ High-flow 1/2\" NPT inlet and outlet
✔ 12V fuel pump system
✔ Helps maintain positive fuel supply
✔ Reduces vacuum between fuel tank and injection pump
✔ Reusable internal fuel filter
✔ Compatible with biodiesel and low-sulfur diesel
✔ Dual 12V fuel pump relays included
✔ Mounting bracket included
✔ Wiring diagram included
✔ 1-year warranty
✔ 50-state emissions legal — E.O. D-701-23
Why Add a Fuel Lift Pump?
The factory fuel system can place the high-pressure injection pump in the position of pulling fuel from the tank. Adding a dedicated lift pump changes that setup by actively pushing fuel through the lines and filter.
That can be particularly useful when the fuel system needs additional flow capacity or when you\'re trying to reduce restrictions before the high-pressure injection pump.
The PPE unit is rated for up to 160 gallons per hour, giving it substantially more flow capacity than a basic low-flow replacement pump.
High-Flow Fuel Connections
The pump uses 1/2-inch NPT inlet and outlet ports, providing a high-flow connection for the fuel system.
The design is intended to reduce fuel-flow restriction between the tank and injection system, especially in applications where additional fuel supply is needed.
Reusable Internal Fuel Filter
The pump includes a reusable internal fuel filter, allowing the filtration component to be serviced rather than simply replacing the entire pump assembly.
The unit is also compatible with biodiesel and low-sulfur diesel fuel.
Applications
The source lists applications for:
- 2001–2016 GM
- 2001–2016 Ford
- 2003 and newer common-rail Dodge/Ram
The pump is also highly recommended by the source for applications using a Dual Fueler CP3 kit.
