About this item

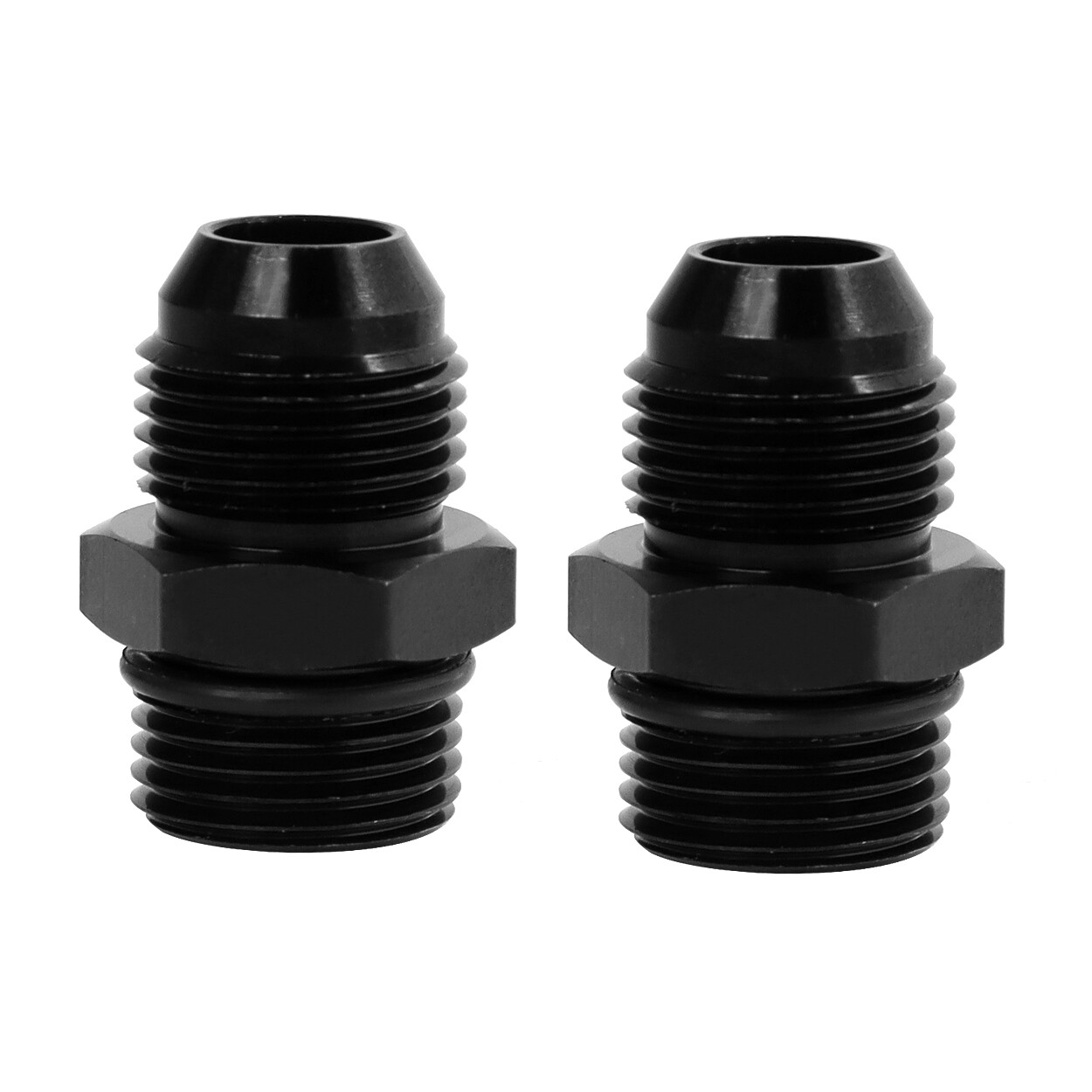

size:the thread size of 10AN is 7/8-14 UNF,the thread size of 10AN ORB is 7/8-14 UNF
Sealing：The AN side of the flare is sealed by a 37 degree angle and The ORB side is sealed with an O-ring.
Material: The 10AN to 10AN orb reducer is made of aluminum alloy 6061-T6 which is anodized black surface,and the O-ring is made of NBR rubber.(Temperature Range: -40F° to +212F°.Maximum working pressure: 4000PSI)
The orb fitting can be used with water, air, fuel, oil, fuild, E85, etc.
LokoCar provide the orb adapter 6-month warranty. Any problem you might have, please feel free to contact us via message.
