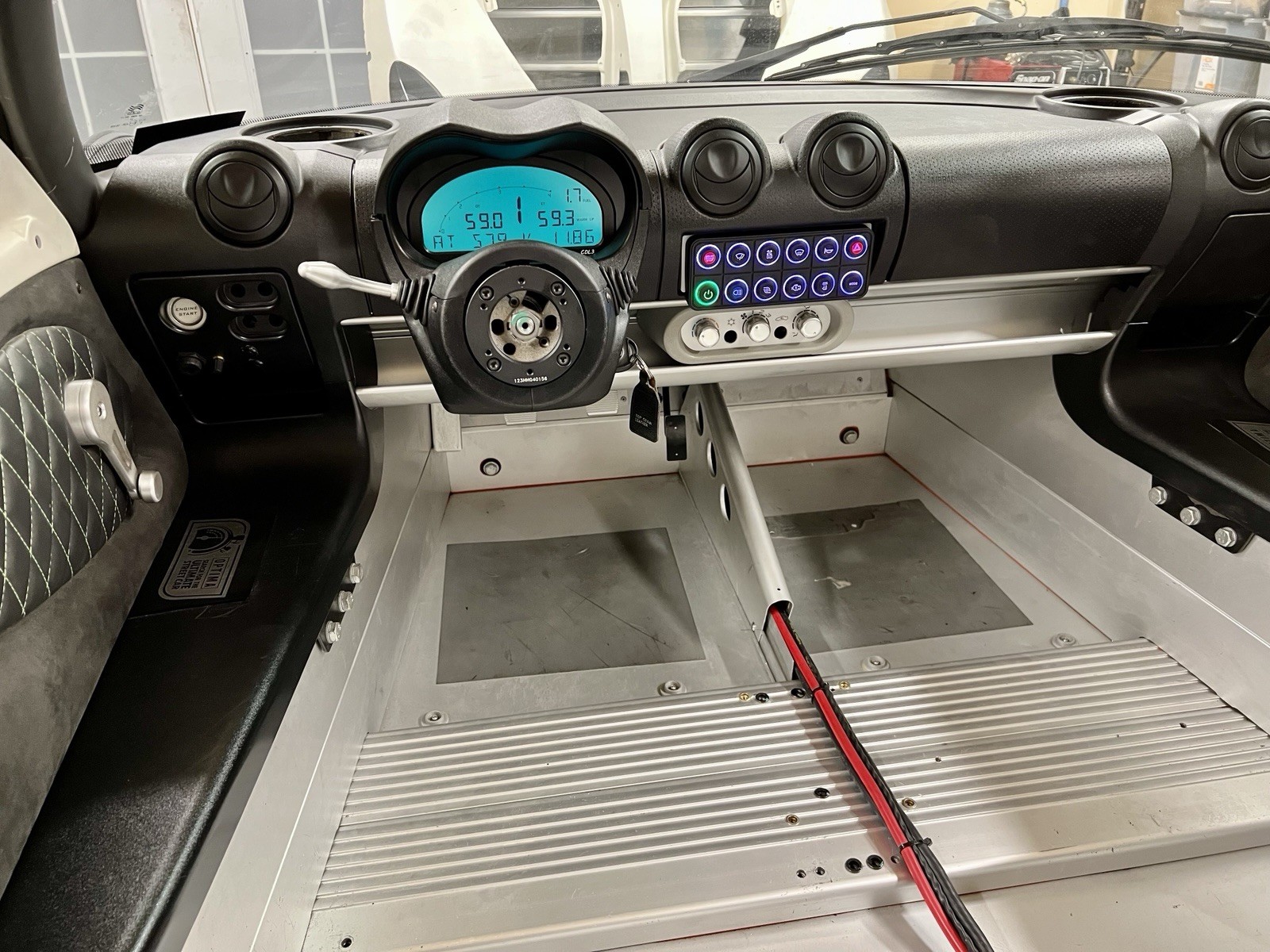

MoTeC CDL3 Club Dash Logger, backlit with data logging enabled - a combined configurable display, controller, and logger in one compact, lightweight unit. Same construction and core technology as MoTeC’s top-line ADL3, in a club/track-focused package. Ideal for track-day cars, club racers, and standalone-ECU builds.
Features:
• All-in-one backlit display, logger, and controller - no separate devices needed
• Fully configurable screen: data channels, warning alarms, lap times, fuel calc, min corner / max straight speeds, and more
• 8MB data logging enabled, up to 500 samples/sec
• Inputs: 4 analog voltage, 2 analog temp, 2 digital, 3 speed
• 2 configurable CAN buses + dedicated RS232 - integrates with MoTeC ECUs, PLM/LTC wideband, CAN expanders (E888), GPS, and SLM shift lights
• Internal 3-axis G sensor, dash temp sensor, voltage monitoring
• Compact 180 x 91 x 18mm, 385g, single 34-pin AMP connector
• i2 data analysis software compatible
Pairs perfectly with a MoTeC ECU (connects over CAN/RS232) - a natural match for an M400/M800 build.
Condition: Powers up and fully functional, backlit display, logging enabled.
