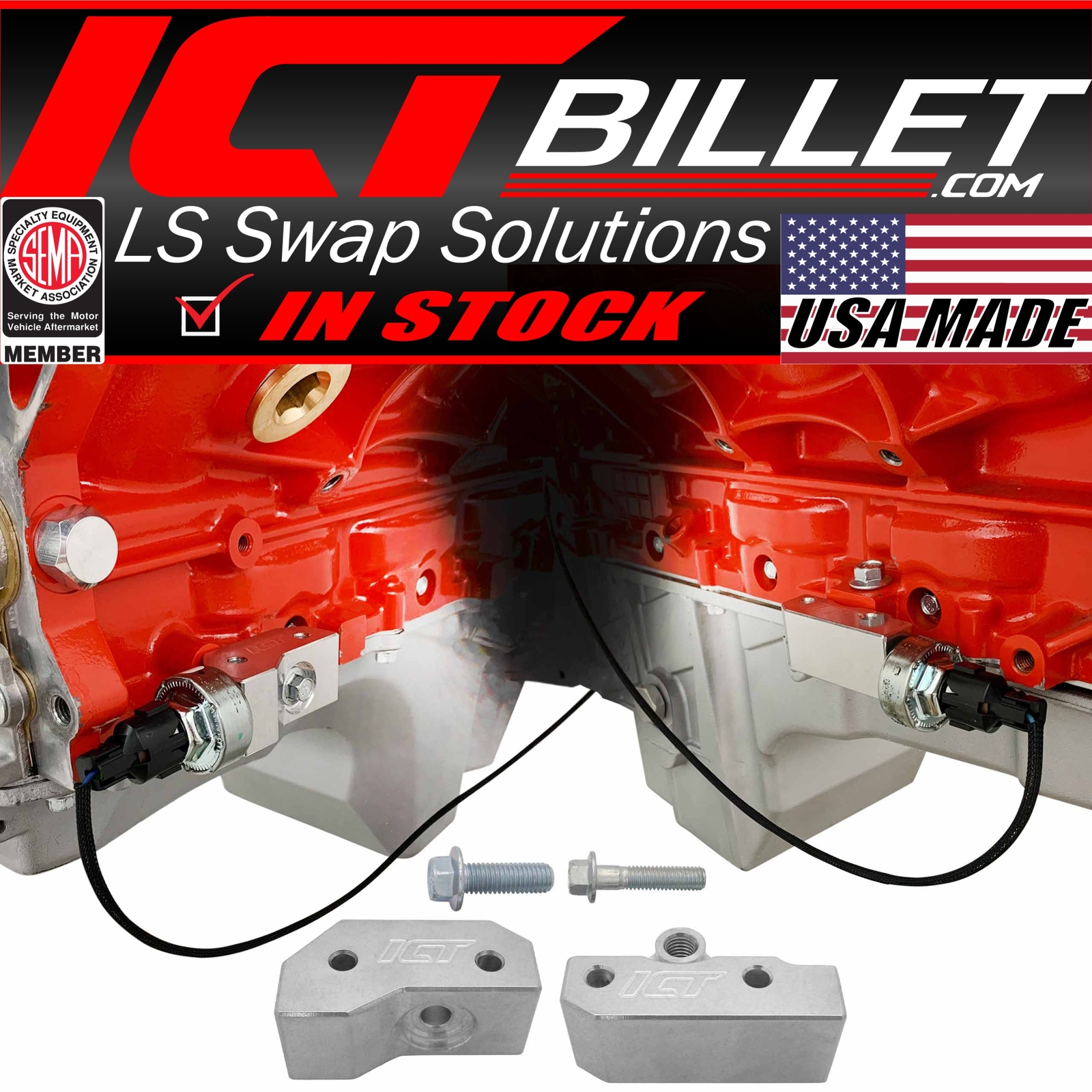

LS Knock Sensor Relocation BracketsAllows LS Gen III knock sensors to be retained and relocated from the valley pan area to the bottom edge of the engine block- Required if wanting to keep your knock sensors while using an ICT Billet valley pan (ICT# 551629 or 551629G)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Compatible with: All gen III harnesses, gen III knock sensors
- Some 4WD applications will require both sensors on the passenger side bracket.
- Fits engine RPO codes: LS1 LM7 LR4 LQ4 LS6 L59 LQ9 LM4 L33
- Includes: 2 billet aluminum knock sensor brackets, and mounting hardware
- Requires extending wire harness or using an ICT Billet knock sensor extension harness (ICT# WEKN030-36)
- Replacement knock sensors: ICT# SEN010
Wire assignments:
Driver side - bank 1 - dark blue wire
Passenger side - bank 2 - light blue wire
PRODUCT SPECS
Brand: ICT Billet
Type: Sensor
Interchange Part Number: 1234 ICT Billet Swap
Package Dimensions: 6.54 x 3.7 x 1.57 inches
OE/OEM Part Number: 551216-KN30
Manufacturer Part Number: 551216-KN30
Manufacturer: ICT Billet
Item model number: 551216-KN30
Country/Region of Manufacture: United States
Exterior: Natural
Item Weight: 11.7 ounces
