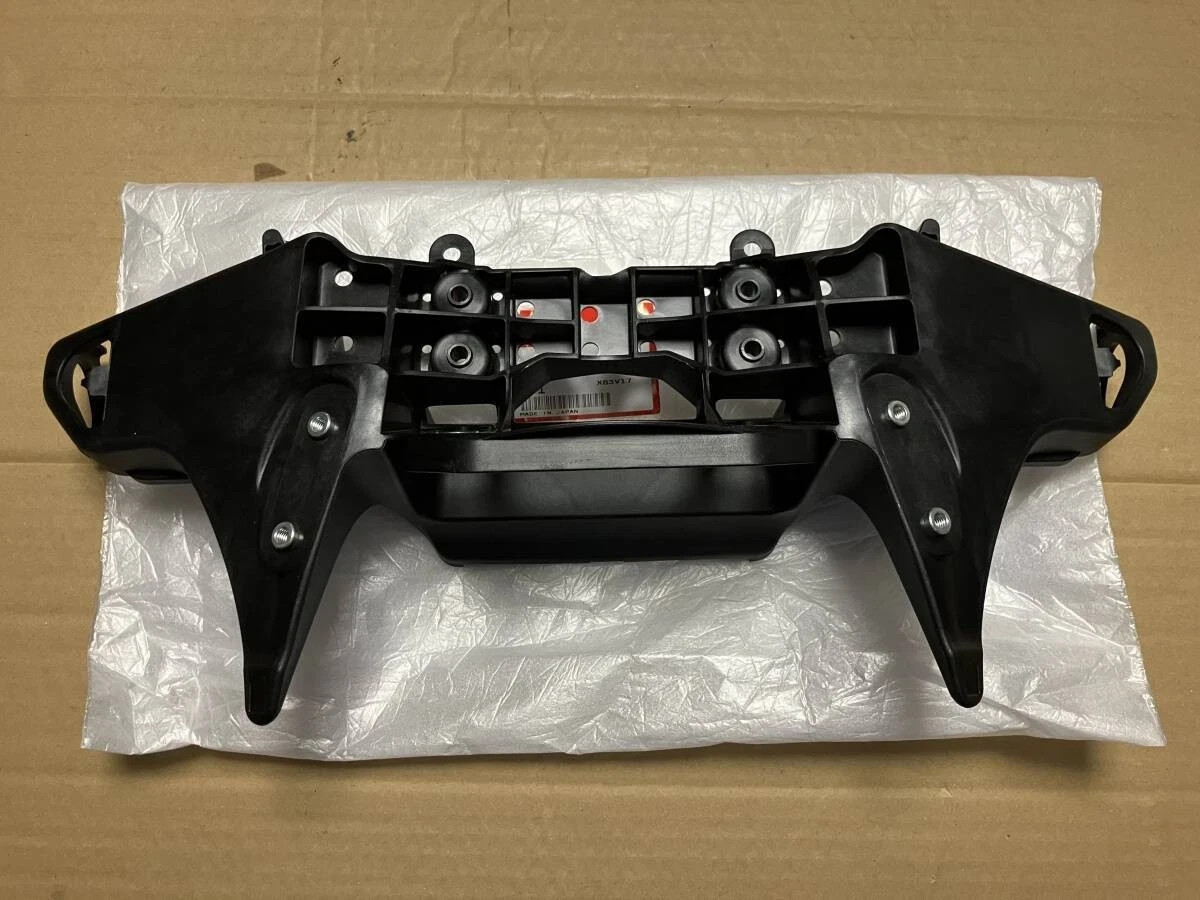

Honda CBR600RR Genuine Meter Stay Bracket 17341-MKZ-J00 - PC40, OEM, at the front of a CBR600RR hangs on this.
The meter stay is the structure behind the fairing: it carries theinstrument cluster, the mirrors, the headlight assembly, and the upperfairing itself. It bolts to the frame and it holds the front of themotorcycle together.
Which is why a crash bends it, and why a bent one cannot be lived with.
A meter stay that has been tweaked - even slightly, even by an amount youcannot see against a straight edge - puts every panel it carries out ofposition. The fairing gaps do not close. The screen sits wrong. The mirrorspoint somewhere they did not before. And the instrument cluster is at anangle you notice every time you look down.
People try to straighten them. Aluminium that has been bent once has alreadyyielded, and bending it back does not restore the metal - it work-hardensthe area and leaves a component that is weaker than it was, at the front ofa motorcycle, holding the fairing.
This is the new Honda part.
17341-MKZ-J00, for the CBR600RR PC40.
Honda's parts supply for the CBR600RR outside Japan has become uneven.European retailers list this part without stock, ordering it from Honda onreceipt of an order, and their customers report long waits and shippingcharges disproportionate to the part.
This one is in Japan.
[REQUIRES VERIFICATION BEFORE LISTING - confirm and state:
1. THE EXACT MODEL YEARS. PC40 covers the CBR600RR from 2007, and Honda revised the model during that run. State which years 17341-MKZ-J00 covers, from Honda's parts catalogue.
2. Weight and dimensions.
3. Material and finish - aluminium casting, steel fabrication, or other.
4. Whether any rubber mounts, grommets, or fasteners are / Manufacturer : Honda Motor Co., Ltd. (Genuine OEM)Part number : 17341-MKZ-J00Alternative format : 17341MKZJ00Honda part name : Stay Comp., Mirror & MeterAlso known as : Meter stay, upper cowl stay, fairing stay, instrument bracketQuantity : 1Condition : NewCountry of origin : Japan
Application Honda CBR600RR, PC40 [CONFIRM AND STATE MODEL YEARS]
Please verify against your own machine's parts diagram before ordering.
[REQUIRES VERIFICATION BEFORE LISTING - model years,weight, dimensions, material, and supplied fittings mustbe confirmed and stated Genuine Honda OEM part, not an aftermarket bracket or a straightened used one- The structure carrying the instruments, mirrors, headlight and upper fairing- Correct geometry - which determines whether every panel it holds sits where it should- New, unused- Sourced in Japan, dispatched from Tokyo with stay replacement on the Honda CBR600RR PC40. Fitted after a crash ora track incident, when the fairing no longer aligns, or during a NOTES FOR INTERNATIONAL NOT STRAIGHTEN A BENT ONE
Worth saying plainly, because it is the alternative most people considerfirst.
Aluminium that has been bent has yielded. Bending it back does not undothat - it work-hardens the material at the bend, and work-hardened aluminiumis brittle. The component is weaker after straightening than before,sometimes considerably.
On a bracket carrying the instruments, the mirrors, the headlight and theupper fairing of a motorcycle ridden at speed, that is not where toeconomise.
There is also a practical problem: getting the geometry right by eye isessentially impossible. A stay out by two degrees looks straight and putsevery fairing gap wrong.
CONFIRM YOUR MODEL YEAR
PC40 is the Honda designation for the CBR600RR from 2007, and the model ranfor years within that code with revisions.
Please see the specification above for the exact years this part covers, andconfirm against your own machine's parts catalogue or with a Honda dealerusing your frame number.
Message me with your model year if you would like help checking - I wouldrather confirm before you buy.
CHECK WHAT ELSE THE CRASH BENT
If the meter stay is bent, the impact reached the front of the motorcyclewith some force. With the fairing off, inspect:
- The frame mounting points the stay bolts to - The forks and yokes - a bent stay very often accompanies bent forks - The headlight assembly and its mounts - The instrument cluster itself - The fairing brackets and the fairing
Fitting a new stay to a frame with damaged mounting points achieves nothing.
Check the frame carefully. On a motorcycle that has been down hard enoughto bend the stay, frame damage is worth ruling out professionally.
THE FAIRING WILL ONLY FIT IF THIS IS RIGHTEvery panel at the front of the motorcycle references this bracket.
If the fairing has been fighting you - gaps that will not close, a screenthat sits proud on one side, fasteners that need forcing - and themotorcycle has been down, this is very often the reason.
A new stay is frequently what makes bodywork fit again after a rebuild.
HONDA PARTS SUPPLY OUTSIDE JAPAN
European retailers currently list this part without stock, ordering fromHonda when an order is placed. Customers report waits and shipping chargesthat are substantial relative to the part.
That is why it is worth buying from Japan.
TORQUE TO SPECIFICATIONThe stay bolts to the frame at several points, and Honda specify torquefigures. A bracket carrying the front of the motorcycle is not a place toguess, and over-tightening into aluminium strips threads.
CHECK THE RUBBER MOUNTSInstrument clusters are usually isolated from the stay by rubber grommets ormounts, to keep vibration out of the display.
On a machine of this age those rubbers have hardened. Please see thespecification above for whether any are supplied; if not, inspect theexisting ones and replace them if perished.
CBR600RRHonda's CBR600RR has been one of the defining supersports machines since2003, and the PC40 generation is widely used on track as well as on theroad.
Track use means crashes, and crashes mean front-end parts. Honda's supply ofthem is not indefinite.
MECHANICAL PARTThis is a metal bracket. It contains no battery, no electronics, and nowireless components, so there are no voltage, plug, certification, or powercompatibility concerns of any kind.
MOTORCYCLE NOT INCLUDEDThis listing is for the meter stay bracket. Instruments, mirrors, headlight,fairing, grommets and fasteners are not supplied unless shown in thephotographs.
HANDLE WITHOUT BENDING ITThe value of this part is its geometry. It is packed rigidly so that nothingcan flex it in transit.
Please inspect on arrival and check it against your old one - or against theframe - before starting the rebuild.
SHIPPED FROM JAPANDispatched from Tokyo with tracking, packed to prevent any flexing.
