FV5T + FV5C + SWITCH + INSTALL HARDWARE
GENUINE STANDARD MOTOR PRODUCT
6 port motor driven; O.E.M. #12336291, U7001.
- Fuel tank selector Valve controls which tank is supplying the engine with fuel
- When not replaced, engine may run out of fuel and/or cause fuel pump damage
- Designed to meet or exceed OE specifications in form, fit and function
- Global coverage for import and/or domestic applications

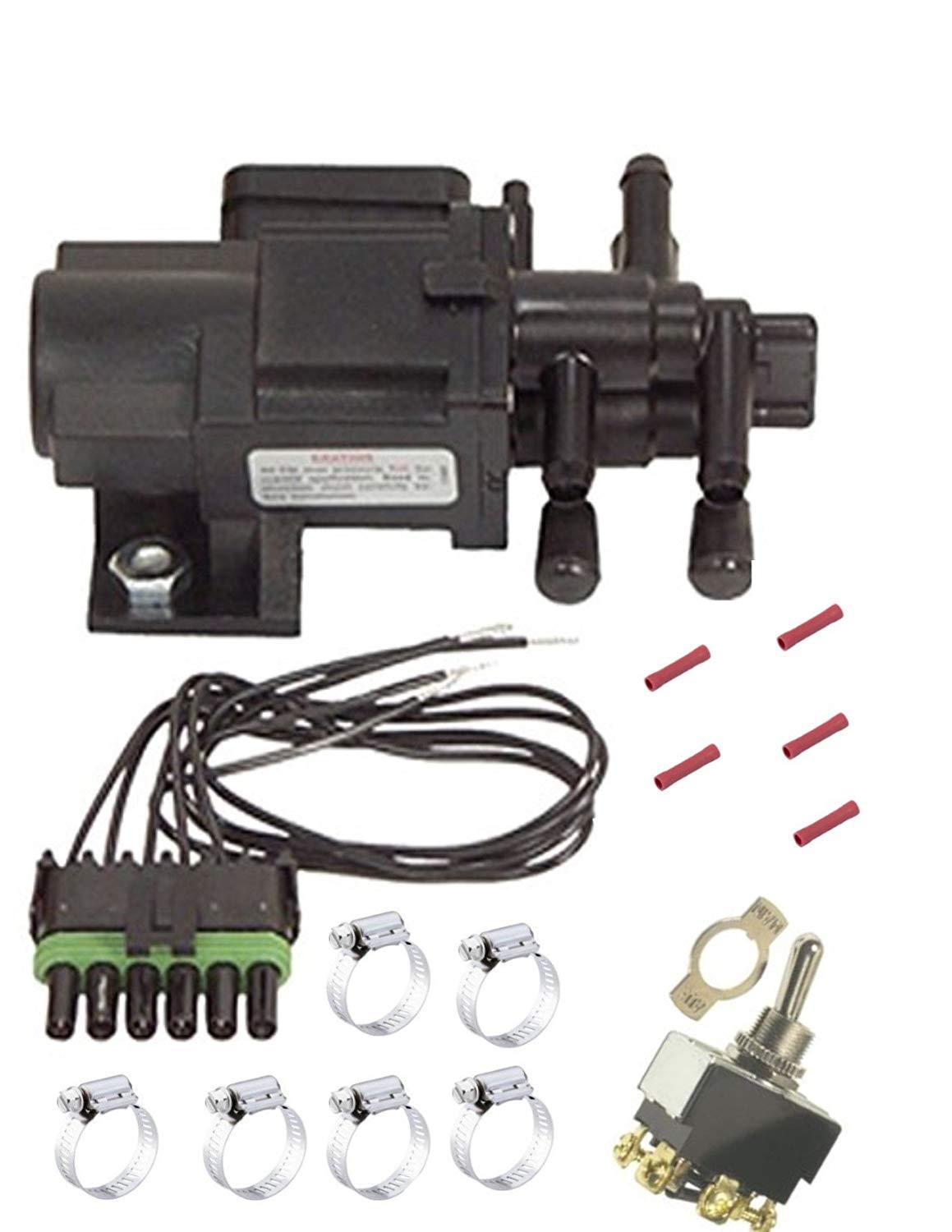

VALVE + CONNECTOR + SWITCH +
AS SHOWN IN PICTURE
CROSS REF.
POLLAK 42302
Velvac 060047
Incorporates six ports including returns, draws .5 amps max. at 12 Volts, fits 3/8" I.D. hose for fuel supply and 5/16" hose for return lines. Mounting holes:2 5/16" threaded nuts on 1 3/16"centers.valves remains in actuated position after power is disconnected. Installations sheet included. Maximum operating pressure is 60 PSI
Motorized Fuel Tank Selector Valves (Diesel or Gas) These valves are designed for use in applications which involve in-tank fuel pumps, not exceeding the rated pressure of the valve. Motorized valves are driven into position by an electric motor and are stable in either position. They only draw power for a fraction of a second during transfer. A switch in the valve shuts off the motor when the valve reaches the selected position. Note: Another switch within the valve provides automatic fuel gauge readout for selected tank
42-302 42-302P 6 Port Fuel Tank Selector Valve Kit Harness - Gas Diesel
ACDELCO GM ORIGINAL EQUIPMENT 14029228 ACDELCO GM ORIGINAL EQUIPMENT CANADA 14029228 AIRTEX AUTOMOTIVE DIVISION 8F1312 BWD AUTOMOTIVE FSV3 CARQUEST 541701 CARQUEST/STANDARD MOTOR PRODS. 541701 CARQUEST/STANDARD MOTOR PRODS. FV5 CARQUEST/WELLS 541701 ECHLIN 22198 FEDERATED IGNITION FSV3 GP SORENSEN FSV2 KEMPARTS FTV2 NAPA 22198 NAPA 32198 NAPA/ECHLIN FUEL SYSTEM-CRB 22198 NAPA/MILEAGE PLUS FUEL-MPF 32198 NIEHOFF UN52 POLLAK 42149 POLLAK 42203 SIERRA MARINE FSV2 WELLS 541701 WELLS FSV2
