BTR TRUCK STAGE 3 V2 CAMSHAFT KIT

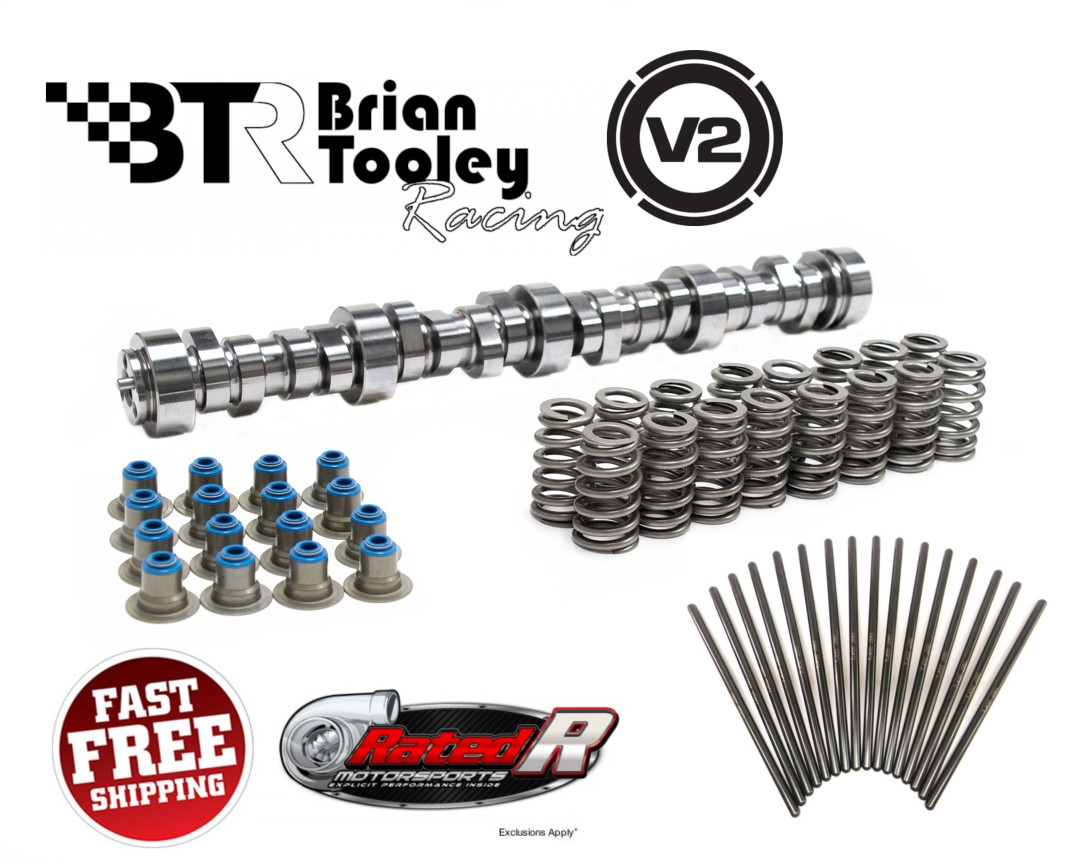

Package Includes:BTR Truck Stage 3 V2 CamBTR .560 LS6 Beehive Valve SpringsBTR Hat SealsBTR 7.400" 5/16" .080" Hardened Pushrods
BTR STAGE 3 TRUCK CAM V2
1998-2013 Chevrolet Silverado
GEN 4 ENGINES WOULD NEED DOD, AFM, VVT DELETE KIT
From the team that brought the industry's NUMBER 1 SELLING GM TRUCK CAMSHAFTS to market. Brian TooleyRacingis proud to introduce the next chapter in the performance GM Truck saga. Our all new V2 series was born from the demands of an ever changing market. From toy haulers to trucks turned street rods, our V2 truck cam lineup has an answer for your needs. We have partnered with an OEM Tier 1 supplier to grind the new V2 series. The end result is a revised camshaft that provides more average torque, higher peak power, and a maximum depth heat treatment. The maximum heat treat depth is achieved by having cam cores made within a few thousandths of final grind size. As opposed to grinding all the camshafts from the same starting core, they each have their own respective core to begin.
All of this is done in the Land Of The Free!
Made In The USA!
STAGE 3 SPECIFICS:
The Stage 3 V2 camshaft is an amazing all around grind for the truck enthusiast. You sacrafice some low end torque in the pursuit of more power farther in the RPM range, but gain an idle note that is DISTINCTLY BTR! With more average torque than the previous Stage 3 grind, it is still a tow-friendly camshaft, just not ideal for the every day hauler. An aftermarket converter is recommended with this grind.
V2 CAMSHAFTS: Specific Advantages
- Revised Camshaft Centerlines For Increased Average Torque
- Engine Dyno Verified To Produce More Power
- USA Based OEM Tier 1 Supplier - These Camshafts Are Made To LAST.
- Each "Stage" Is Born From It's Own Specific Cam Core. NO GENERIC CORES USED.
- Because Of The Specific Core Per Cam, Maximum Heat Treatment Penetetraion Is Achieved.
BTR .560 LS6 BEEHIVE VALVE SPRINGS (16)These valve springs are designed to work with factory hardware and go great with mild performance applications..560" Lift LS6 Beehive Springs. Spring specs are 100 lbs @ 1.800", 285 lbs @ 1.240", coil bind @ 1.150"
BTR HAT SEALS (16)Hat Style LS Valve Seal for stock powdered metal guides with built in locators for single springs.*Will not work with dual springs*
BTR PUSHRODS (16)Length- 7.400"Diameter- 5/16Wall- .080"
NOTICE!The state of California and other states with similar laws and regulations prohibits the use of some parts on emissions vehicles. Please review your cart before checking out to make sure that your parts are legal for use in California and other states with similar regulations.
