Description: Amperage:180A Voltage:12V Rotation:Counterclockwise Pulley:Decoupler Pulley Package Quantity:1 Packaging Type:Box Fitment Type:Direct Replacement Part number:0121715109, 0125811051, F00E100565, 6G910300MA，11346N, 11346 Fitment for: For Volvo S60 2012 L5 2.5L 180 A/12V, CCW Rotation, w/ Decoupler Pulley For Volvo S60 2011-2016 L6 3.0L 180 A/12V, CCW Rotation, w/ Decoupler Pulley For Volvo S80 2008-2015 L6 3.0L 180 A/12V, CCW Rotation, w/ Decoupler Pulley For Volvo S80 2010-2011 L6 3.0L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
Package Quantity:1
Packaging Type:Box
Fitment Type:Direct Replacement
Part number:
0121715109, 0125811051, F00E100565, 6G910300MA，11346N, 11346
Fitment for:
For Volvo S60 2012 L5 2.5L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo S60 2011-2016 L6 3.0L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo S80 2008-2015 L6 3.0L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo S80 2010-2011 L6 3.0L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo S80 2007-2014 L6 3.2L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo V60 2015-2016 L6 3.0L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo V70 2008-2010 L6 3.2L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo XC60 2010-2016 L6 3.0L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo XC60 2012 L6 3.0L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo XC60 2012-2015 L6 3.2L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo XC60 2010-2011 L6 3.2L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo XC70 2009-2015 L6 3.0L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo XC70 2008-2015 L6 3.2L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
For Volvo XC90 2007-2014 L6 3.2L 180 A/12V, CCW Rotation, w/ Decoupler Pulley
Package Included:

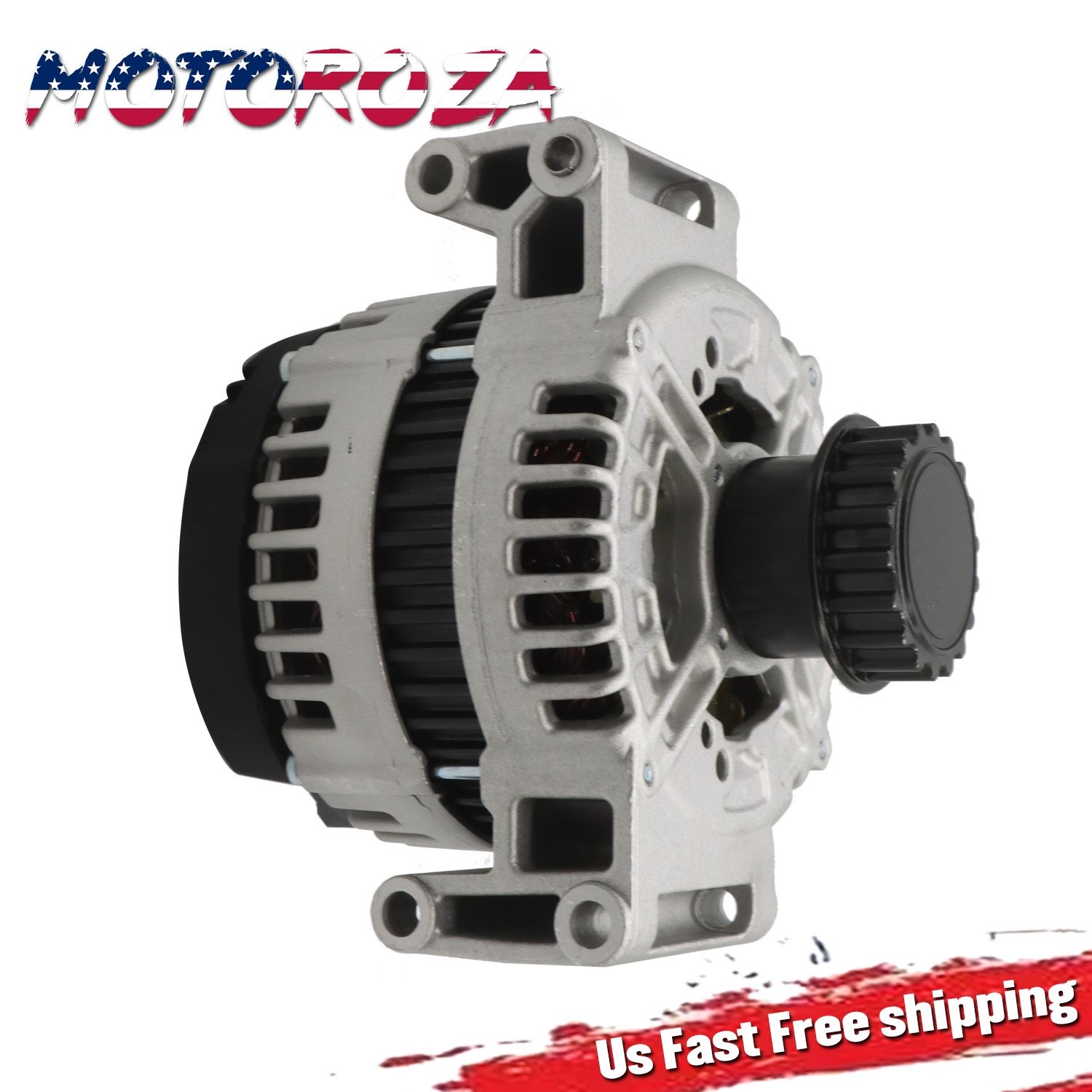

1×Alternator
(as shown in the picture）
Important Note:
Please check the model and important parameters before purchase to avoid unnecessary after-sales problems, if you are not clear, please feel free to contact us, thank you for your cooperation!
Disassembly and assembly of alternator:
On-board dismantling of generators
1. Disconnect the negative battery terminal cable Before disconnecting the negative battery terminal cable, make a record of the information stored in the ECU and other components, such as the DTC (diagnostic trouble code), radio channel selected, seat position (with memory system), steering wheel position (with memory system), etc.
2. Disconnect the generator power cord and connector
3. Disassemble the generator. Loosen the generator penetration bolts or tensioner pulleys, then remove the drive belt. Remove the generator fixing bolts.
Alternator mounting
1. Install the generator.
① Install the entire generator in reverse order of disassembly.
② Install the generator at the front end of the engine by penetrating bolts
③ Preliminary mounting bolts.
2. Install the drive belt.
① Install the drive belt.
② Adjust the belt tension by moving the generator with something like the handle of a hammer
③ Tighten the mounting penetration bolts and bolts after ensuring the deflection of the drive belt.
3. Connect the wiring harness.
① Generator cable and install the short-circuit-proof cover.
Perfect after-sales service:
1. We maintain high standards of excellence and strive for 100% customer satisfaction!
Please don\'t open cases or return requests without contacting us.
If you have any questions about quality,shipping or other problems,please contact me first via message.
I will give you a satisfy solution.
2. If you are not sure if these are the right parts for your truck please email me your bill of material number and i will check it for you.
Installation:
Direct Replacement.Perfect fitment.No modification required.
Product does not come with installation instructions,please refer to a shop/factory manual for installation.
