OUR PRODUCT

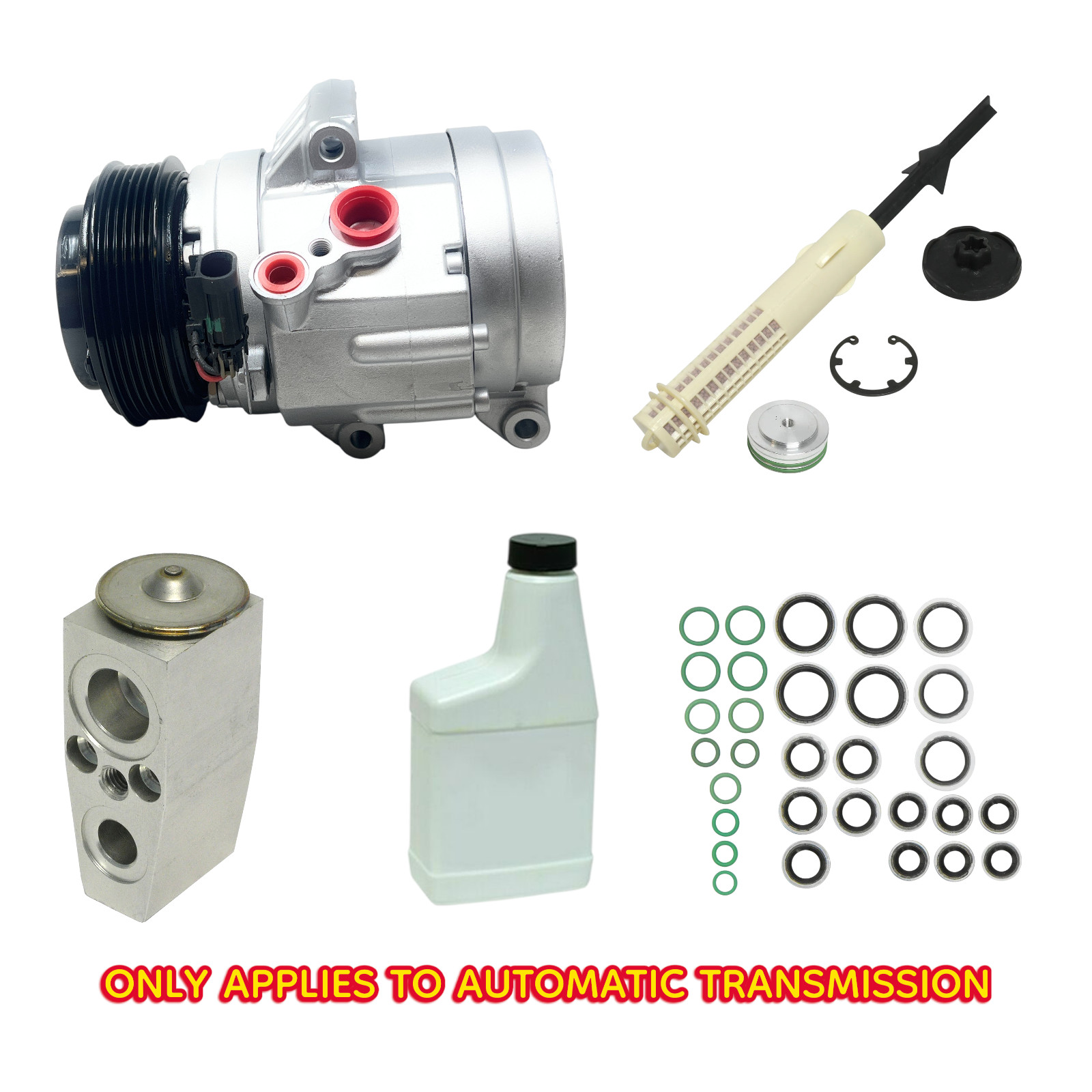

You are purchasing aReman compressor with clutch.
We would appreciate ifyou could leave us a note with the vehicle specification (Year, Make, Model andEngine) in PayPal when making the payment or in the email system, that waywe can be sure that the a/c compressor will fit properly.
THE SYSTEM (COMPRESSORINSTALLATION)
3 Month Ac Warranty & Agreement
Follow all local,state and federal regulations when servicing mobile A/C systems and read thisinstruction sheet prior to starting any repairs.
Oil charges and oiltypes should be closely adhered to for proper A/C performance.
If you are uncertainofOIL CHARGE OR REFRIGERANT TOTAL SYSTEM CHARGEreferto the under hood decal or, OEM service manual.
USE ONLY R-12 ORR-134a REFRIGERANT.
1. Remove compressor, receiver drier oraccumulator, orifice tube or expansion valve.
2. Flush the condenser and evaporator usingNON-OILBASEDA/C flush. On expansion valve systemsTHE VALVEMUST BE REMOVEDbefore the evaporator can be flushed.FLUSHEDCONDENSERS FROM OUTLET TO INLET AND EVAPORATORS FROM INLET TO OUTLET.
WARNING:NEWERSTYLE CONDENSER DESIGNS ARE VERY HARD, AND SOMETIME IT WOULD BE IMPOSSIBLE TODO FLUSH, IN THOSE CASES IT IS SUGGESTED THAT IF THE COMPRESSOR HAS A MAJORFAILURE THE CONDENSER SHOULD BE REPLACED.
3. Drain all the oil from the new compressor anddispose of according to local, state and federal laws.NOTE:ifyou compressor has a drain plug you will need to open it up and drain whatoil is in there too,
4. Install half oil charge into thecompressor and the remainder throughout the system. Turn compressor shaft 8-10full revolutions to insure front seal and other internal parts are lubricated.
5. Install new receiver drier oraccumulator and new orifice tube or expansion valve.
6. Evacuate the A/C system for aminimum of one hour.
7. After evacuation install half therefrigerant charge and let the system set for 1 minute. This will allow therefrigerant to pick up oil and spread more evenly throughout the system.
8. Start engine whit A/C controls onMAX AIR with door and windows open.
9. Add the remaining charge ofrefrigerant as called for by the manufacture.
RETURN POLICY
Any warranty after 30days, customer must pay all shipping charge.
All returns must bepre- approved.
SHIPPING
Free ground shippingto the continental US
Shipment to Alaska,Hawaii, Puerto Rico, Virgin Island, American Samoa and Guam do not qualify forfree shipping, shipping is $35 to these locations (USPS Only)
YOUR SATISFACTION IS OUR MAIN GOAL
