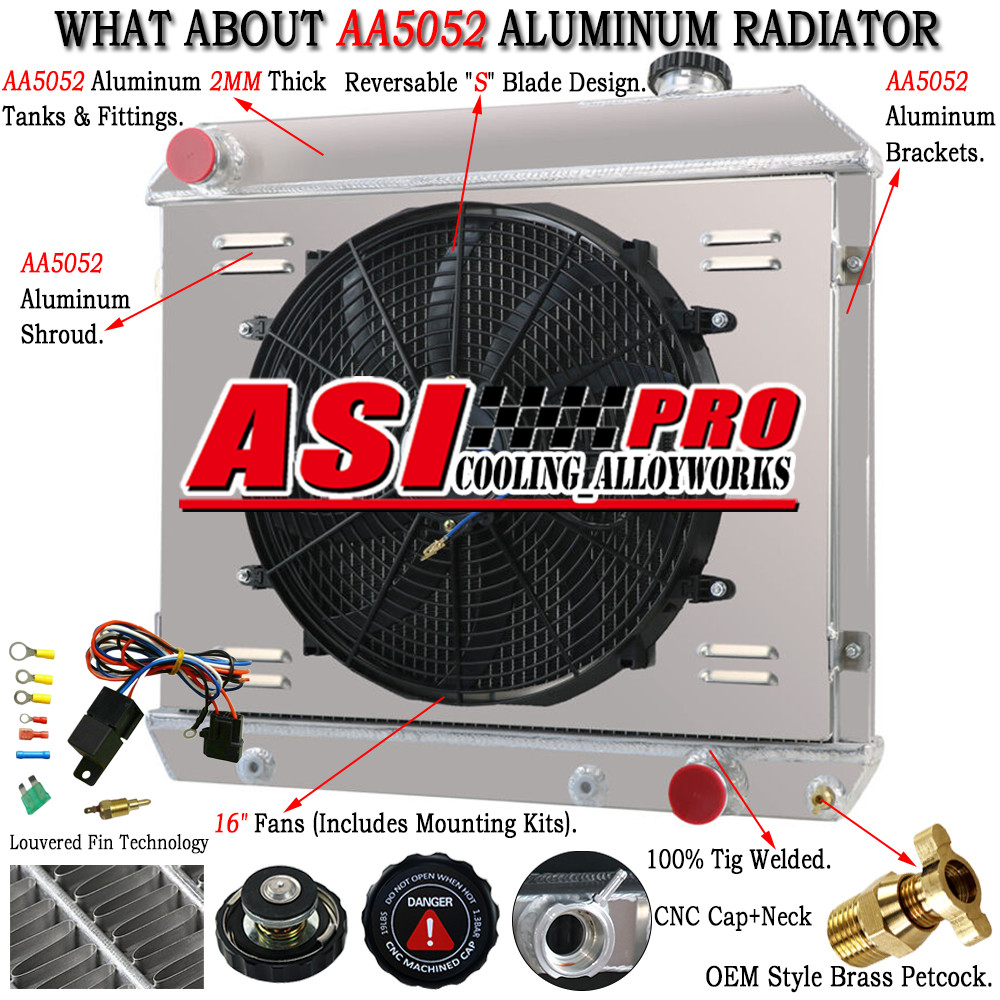

4 Rows Radiator Shroud Fan Fit 1963-1966 Chevy C/K C10 C20 C30 K10 Pickup Truck Package Include: (as the pictures shown）
1 X 4-Row AA5052Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" Fans (Includes mountingkits)
1 X Thermostat Relay Kit
Vehicle Fitment:
1963-1966 ChevroletC10C20 C30Panel3.8L 4.1L
1963-1966 ChevroletC10C20 C30Pickup3.8L 4.1L4.6L 4.8L 5.3L
1963-1966 Chevrolet K10 K20 Pickup 3.8L 4.1L 4.6L 4.8L 5.3L
1963-1966 ChevroletSuburban3.8L 4.6L 4.8L
1963-1966 GMC1000 1500 2500SuburbanL6 V8
1965-1966OldsmobileCutlass5.4L 6.6L
1964-4965 OldsmobileF853.7L 5.4L 6.6L
1961-1966PontiacCatalinaBonneville 6.4L 6.9L
1962-1964 Pontiac Grand Prix Star Chief 6.4L 6.9L
Radiator Configuration:
Condition:New
4-Rowof tubes Core RacingDesign
HighPerformance Racing Spec.
Material: High Quality Full 5052 Aluminum Construction
Core Size: 17 1/2" HIGH x 223/4" WIDE
Over Size: 23 3/8" HIGH X 25 1/2" WIDE
Inlet Hose Connection:1 3/4" Driver Side
Outlet Hose Connection: 1 3/4" Passenger Side
Transmission Oil Cooler:￠22*300*G1/4(Z)
OEM Style Brass Petcock Drain
CNC Machined Filler Neck and Cap
16” Fans Details:
Diameter:16'' (Blade to Blade)
Voltage:DC 12 Volts
MaximumFan CFM (Cubic Feet per Minute): 2150 cfm
Thickness(in): 2.500"
Numberof Blades: 10 S-Type blades
MaximumFan RPM (Revolution (s) Per Minute): 2,250 rpm
AmpDraw: 10 amps
Ourelectric fan has a 120w power motor, which is more powerful and efficientthan other inferior fans selling on market. Most fans on have a motorpower of 80w, which cannot provide enough cooling for the engine. Moreover,they are usually assembled by the straight blades, it is cheaper andpoor-quality and easy to get broken.
1.120W electric motor to provide strongpower and high rotation speed
2.S Blade pull push design, to make air flow more efficient and bring morecooling Effect
3.Lightweight and thin volume design, not only to save more engine bay space andalso looks very well.
4.Provide extra temperature relay switch.
ThermostatKit:
BLACKgoestothermosswitch.
BLUEwiregoestotheFans.
AA5052AluminumShroudand Fans:
The New Design fanand theAA5052fan shroud effectively drive the heat over and out theengine compartment rather than thrusting it into the front of the engine. Thefan shroud basically houses the fan blades securing it in place and keeping itfrom damaging the other engine components that may disturb the smooth and evenoperation of the engine. With excellent operating temperature management,allowable levels of engine temperature are stabilized. Investing in propermaintenance though will considerably benefit the ride and driving quality inmaintaining the ideal working conditions of the engine.
- Shuttered designAA5052fan shroud to guaranteed airflow passes high efficiently. Make your engine bay perfect!
- S blade fans, Push or Pull Type design, lightweight Plastic Durable Material.
- Additional with thermostat, professional matching advice, consider for every detail and needed.
The Advantage ofour Radiator:
Our Radiator ismade ofAA5052aircraft aluminum. It’s different from other sellersT-3303 Series. In fact,AA5052series Aluminum is much better than T-3303 series.
More than 90% ofaftermarket manufacturers use the T-3303 series Aluminum, because it is cheaperand easier to get the material. However, T-3303 aluminum has manydisadvantages, such as poor polishing effect, softness, easiness to scratch andcorrode, poor heat dissipation effect. If the T-3303 aluminum radiator isoperated in high pressure and high temperature for a long time, the leakingproblem would occur very soon.
AA5052Aluminum is anAl-Mg alloy with good corrosion resistance, excellent reliability and coldworkability and strength. The main alloying element of AA5052 is magnesium,which has good forming and processing properties. It is widely used in themanufacture of aircraft fuel tanks, oil pipes, and sheet metal parts oftransportation vehicles and ships, hardware products, and electrical-appliancecasings.
ThisAA5052Aluminum Radiatoris designed to provide maximum cooling efficiency to prevent premature enginefailure. Its light-weight, and high-heat transferring aluminum features a tubeand fin design that, dramatically increases surface area that enables the heatto dissipate more efficiently. ThisAA5052Aluminum Radiator is at least 30%-45% moreefficient than stock ones. Most importantly, it has a much higher capacity forcoolant than stock ones, which means that your cooling system will be moreefficient and will be more resistant to temperature surges in racingapplications.
- Made from AircraftAA5052grade aluminum for prolonged lifespanand with raw aluminum finish
- Brazed core technology to guarantee optimum performance and dependability
- AllAA5052Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable
- Carefully crafted to exceptional OE standards for precise fit.
- Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
- Billet Aluminum CNC machined fill neck rugged and durable
- OEM style brass petcock drain much better than other plastic one on
Note: Please contact for quote if international postage NOT display.
