2 Universal Air Suspension Double Play 3/8\" Port Air Bag Rear Lowered Suspension For Sale - New and Used

NewmaticsInc.1832Lone Star Rd, Mansfield, TX 76063

We offer combinedshipping on all orders

Parts Sold For OFFRoad / Show USE Only

*** PLEASE READ THE ENTIRE LISTING BEFORE BUYING***

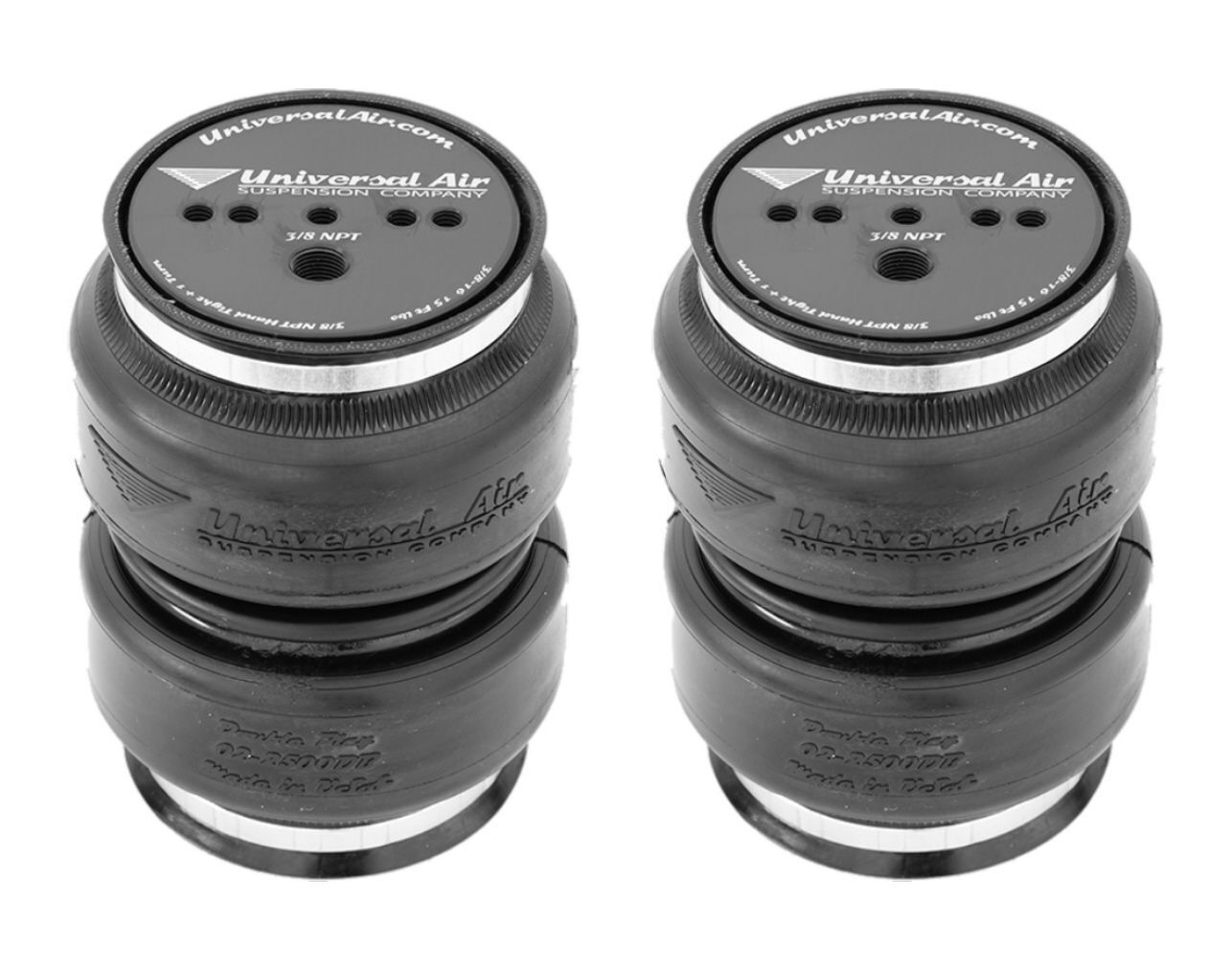

2 X Brand New UN-Used Double Play 3/8\" Port 11\" Max height. 2500 lbs. Double Convoluted Air Suspension Bags for Trucks, Old Classic cars. Double Play bags are designed to handle the heavy weight, rear suspension only, not designed for an A arm (Front) or an extreme angled applications. These bags are designed for an excellent ride quality and higher travel in the same diameter size.

Recommended Mounting is directly to the Axel in a rear suspension application, or just In front of the Axel on a rear trailing arm setup. Like in Chevy C-10 or Chevy Impala.

Important Notes: -

• All air bag installed pictures are for illustration purposes only. May vary based on the application, vehicle etc.
• These bags are NOT designed for a front control arm suspension. ***Single Bellow Air House 2 are recommended for the front suspension.*** Item # 320727853179 OR 221038029202
• Must use the shocks to prevent air bag from over extension.
• The air bag height may vary based on the air pressure, weight etc.
• Use manufacturer recommendations printed on the bag plate sticker to tighten the air fittings

Specifications & Features:-

• 3/8\" NPT Port

• 5.875\" Max Diameter

• 11\" Extended Height
• 3.25\" Collapsed Height
• 4.75 - 7.75\" Optimum Ride Height

• Up to 2500 lbs. Force @ 115 PSI - Maximum Weight 2500 lbs. each

• Rear Installation - ***Over Axle, Behind OR Behind & Under Axle applications***
• Made with heavy Duty Thick Rubber For extended life & durability.
• 525 PSI Tested Burst Pressure
• Industry Standard Bolt Pattern - (3) Threaded Blind Holes Top & Bottom, 1.75\" Center to center from middle hole 3/8-16\" UNC. ***Fits 2500 lbs. & 2600 lbs. bolt pattern circle plate cups/ mounting brackets***

• Machined 6061 Aluminum Caps


WARNING: This product can expose you tochemicals including lead, which is known to the State of California to causecancer and birth defects or other reproductive harm. For more information, goto
Shipping Via UPS Ground to 48 States in USA. Expedited shipping options available via UPS 2nd Day Air & UPS Next Day Air. *** UPS Next Day Saturday delivery may not be available for some extended service areas. Check Next Day Air Saturday delivery service availability with ship to address Zip Code***International Shipping Via USPS Priority International mail & USPS Priority Express International mail. ***We may ship via UPS International, based on the country location as well as the total items purchased together***
*** Local In-Store pick up available for Dallas, Fort Worth Customers. Please contact us via for In-Store Pick up***

---
